Bosch 3365 - Functional Description and Specifications; Planer Functional Description; Planer Specifications

-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
5
/
6
4
1
/
1
6
3
/
6
4
•
1
/
3
2
1
/
6
4
•
0

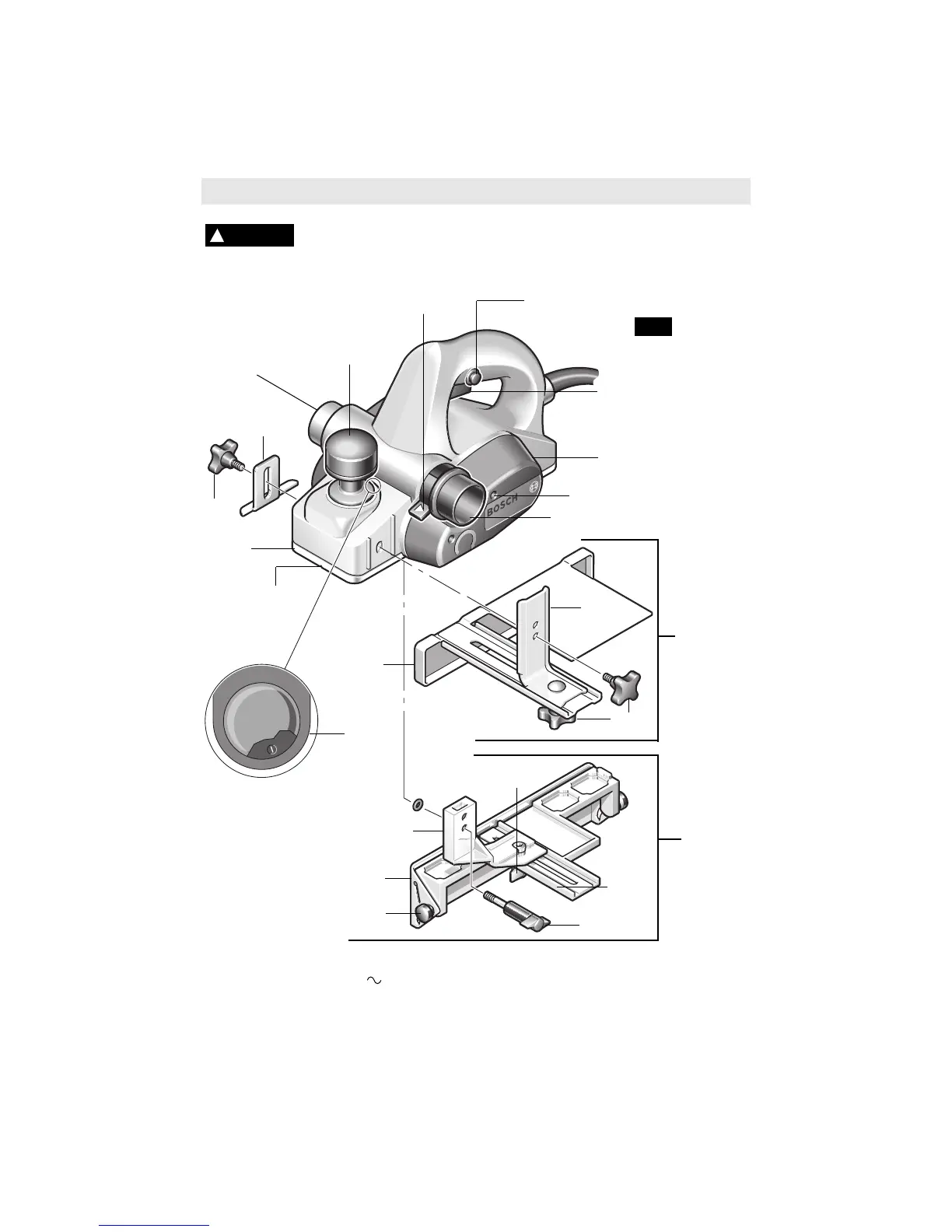

Planer
WING
KNOB
RABBETING
DEPTH STOP
(OPTIONAL)
DEPTH
ADJUSTMENT
KNOB
CHIP
EXHAUST
PORT
CHIP EXHAUST PORT
DEPTH
SCALE
PORT SELECTOR
LEVER
TRIGGER
SWITCH
“LOCK-OFF”
BUTTON
FRONT
SHOE
PIVOT
FENCE
ROUND
KNOB
GUIDE
BRACKET
WING
KNOB
WING KNOB
FENCE
SCREW
DRIVE BELT
COVER
CHAMFER
V-GROOVE
GUIDE
BRACKET
WIDTH
SCALE
DELUXE ANGLE
FENCE
(OPTIONAL)
WING
KNOB
STANDARD
PARALLEL
WIDTH GUIDE
FENCE
FIG. 1
Model number 3365
Voltage rating 120 V 50 - 60Hz
Amperage rating 5 A
No load speed n
0
18,000/min
Maximum Capacities
Planing depth 0 - 5/64" (0 - 2mm)
Rabbeting depth 0 - 5/16" (0 - 8mm)
Cutting width 3-1/4" (82mm)*
THE CUTTING DEPTH
CHOICES ARE
APPROXIMATELY
5/64", 1/16", 3/64",
1mm (•), 1/32", 1/64",
& 1/128" (•)
