Cleaning en-us
29

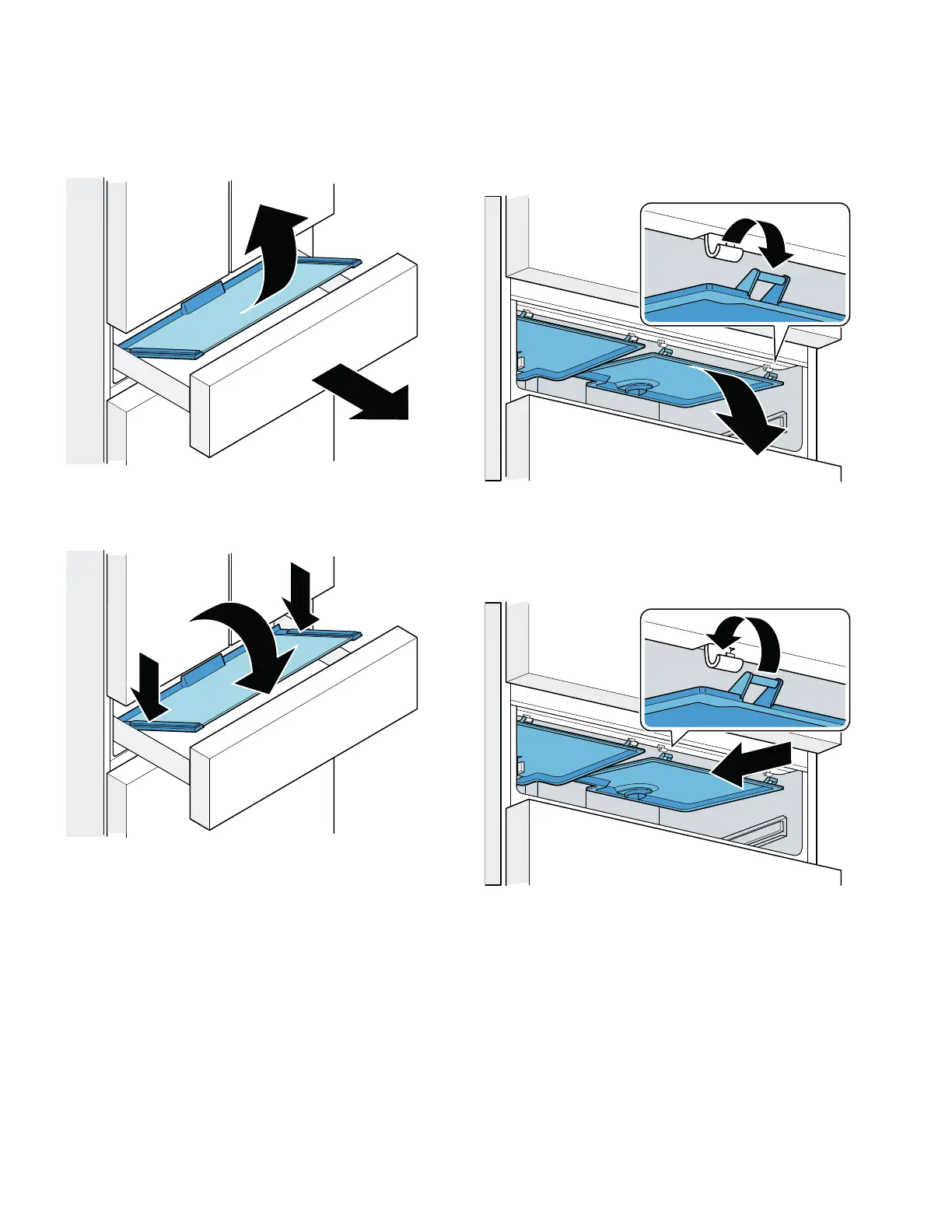

Glass plate drawer
Remove the glass plate:
1. Open the drawer as far as it will go and remove
the bin.
2. Lift the glass plate at the front and remove.
Install the glass plate:
■ Place the glass plate on the rail guide at the rear
and tilt forwards.
Cool-fresh bin cover
Remove the cover:
1. Open the cool-fresh compartment drawer and
remove the cool-fresh bin.
2. In the cool-fresh compartment, lift the cover at the
front and remove.
Install the cover:
1. Slide the cover symmetrically backwards in the
cool-fresh compartment at the top and hook into
place.
2. Push the cover up and engage.
