Operation
Start-up

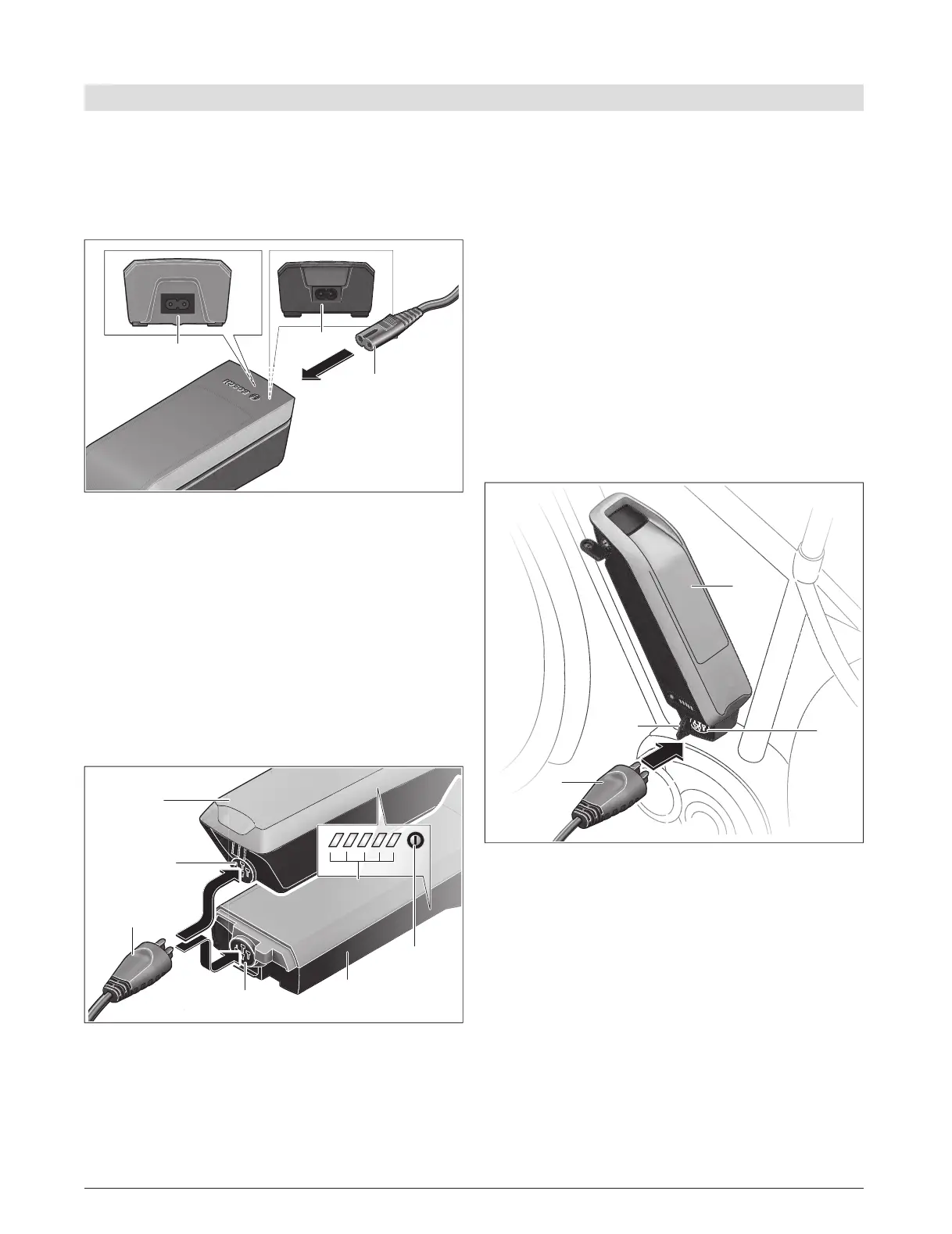

Connecting the charger to the mains
(2)
(2)
(3)
u Note the household voltage! The voltage of the
power supply must correspond to the specifications
given on the battery charger nameplate.
Plug the device connector (3) of the power cable into
the device socket (2) on the charger.
Connect the power cable (country-specific) to the
mains.
Use only the supplied input connection: standard AC
power cord ((3) in the diagram) when connecting to
the household electrical supply.
Charging the battery when removed
(11)
(6)
(5)
(9)
(10)
(8)
(6)
(5)
Charging connector
(6)
Socket for charging connector
(8)
Rack-mounted battery
(9)
Operation/state of charge indicator
(10)
On/off button for battery
(11)
Standard battery
Switch the battery off and remove it from its holder
on the eBike. When doing so, read and observe the
operating instructions of the battery.
u Ensure the battery is placed on clean surfaces
only. Avoid getting dirt, e.g. sand or soil, in the
charging socket and contacts in particular.
Plug the charging connector (5) of the charger into
the socket (6) on the battery.
Charging the battery when inserted in the bicycle
(11)
(6)
(7)
(5)
(5)
Charging connector
(6)
Socket for charging connector
(7)
Charging socket cover
(11)
Standard battery
