Installation Manual Bosch Multi-Position Cased Coils | 7
Bosch Thermotechnology Corp. | 03.2017
Data subject to change
LIQUID LINE CONNECTION
V APOR LINE CONNECTION
AUXILIA R Y DRAIN CONNECTION
3/4'' NP T FEMALE PIPE THREAD
T O P AIR S T O P
' '
0
2
1
W
AUXILIA RY DRAIN CONNECTION
AUXILIA RY DRAIN
CONNECTION
3/4'' NP T FEMALE PIPE THREAD
3/4'' NP T FEMALE
PIPE THREAD
PRIMA RY DRAIN CONNETION
PRIMA RY DRAIN
CONNETION
3/4'' NP T FEMALE PIPE THREAD
3/4'' NP T FEMALE
PIPE THREAD
V APOR LINE CONNECTION
COPPER (SWE A T)
LIQUID LINE CONNECTION
COI L ACCESS
P ANE L
” 1 2
W
H
”
9
1
A

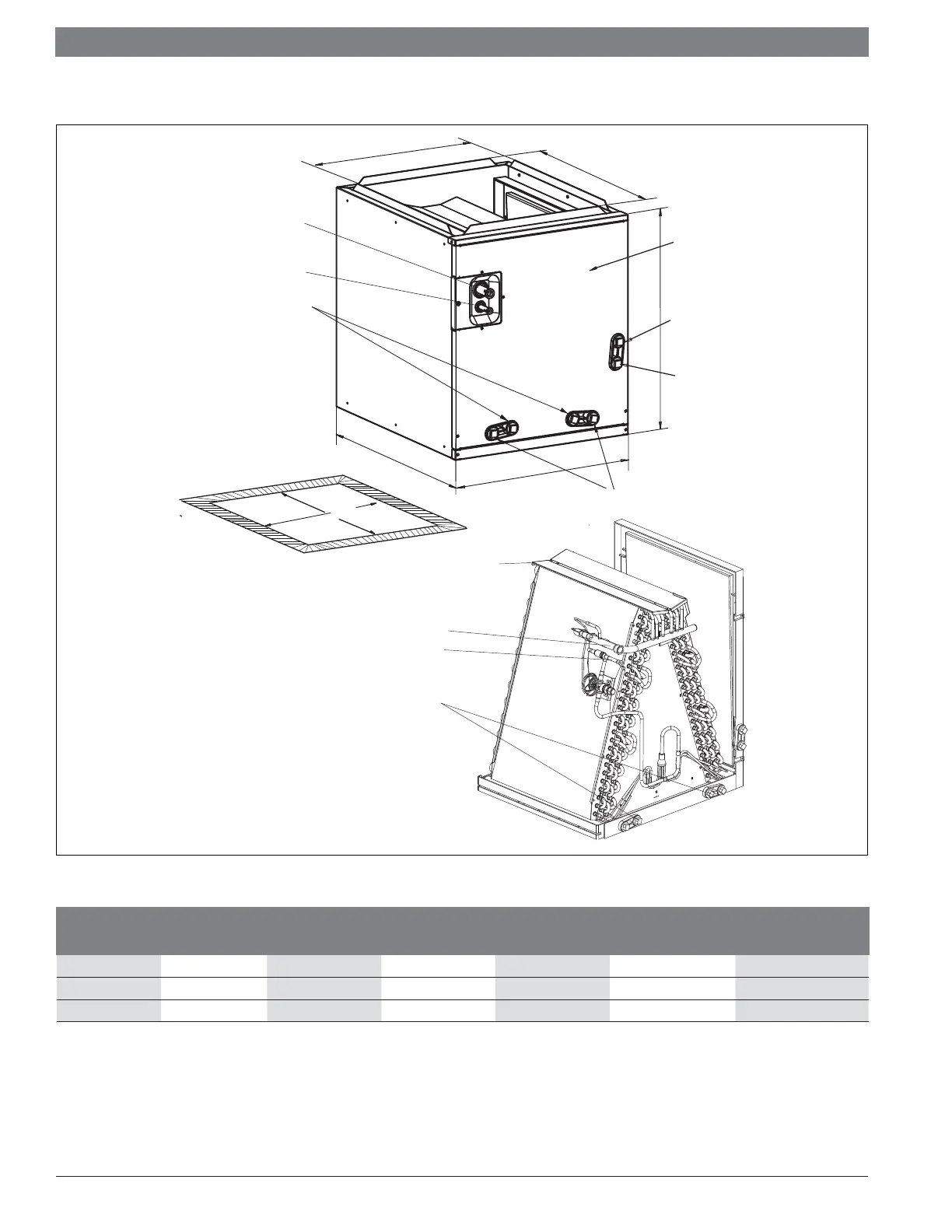

Figure 4
Model
Dimensions inch [mm]
Weight /Shipping
(LBS [kg])
Unit Height "H" Unit Width "W" Supply Duct "A" "W1" Liquid line /Vapor Line
BMAC4248BNTF 30 [762] 17½ [445] 16 [407] 16½ [419] ⅜ /⅞ 67.7/91.7[30.7/41.6]
BMAC4248CNTF 30 [762] 21 [533] 19½ [495] 20 [508] ⅜ /⅞ 71.4/99.9[32.4/45.3]
BMAC4248DNTF 30 [762] 24½ [622] 23 [584] 23½ [597] ⅜ /⅞ 75.0/107.8[34.0/48.9]
Table 2
