| 17
Service Manual
Bosch Climate 5000 Series Ductless Air Conditioner / Heat Pump Multi Zone Outdoor Units (01.2023)

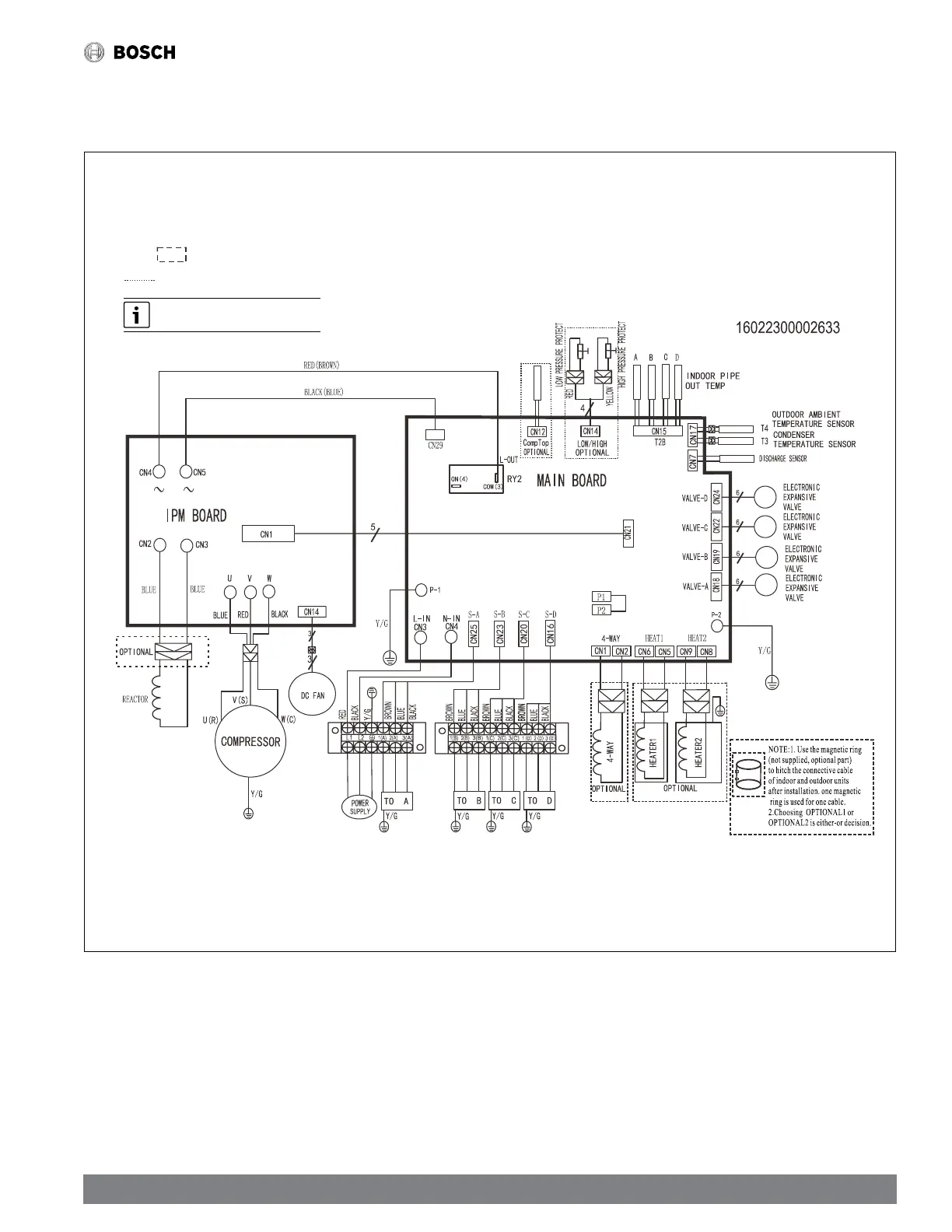

5.4 For Model: 36K Multi Zone Regular System
BMS500-AAM036-1CSXRC
Figure 12
Items listed as OPTIONAL depend on
the specific model installed.
This symbol indicates field wiring
Notes:
