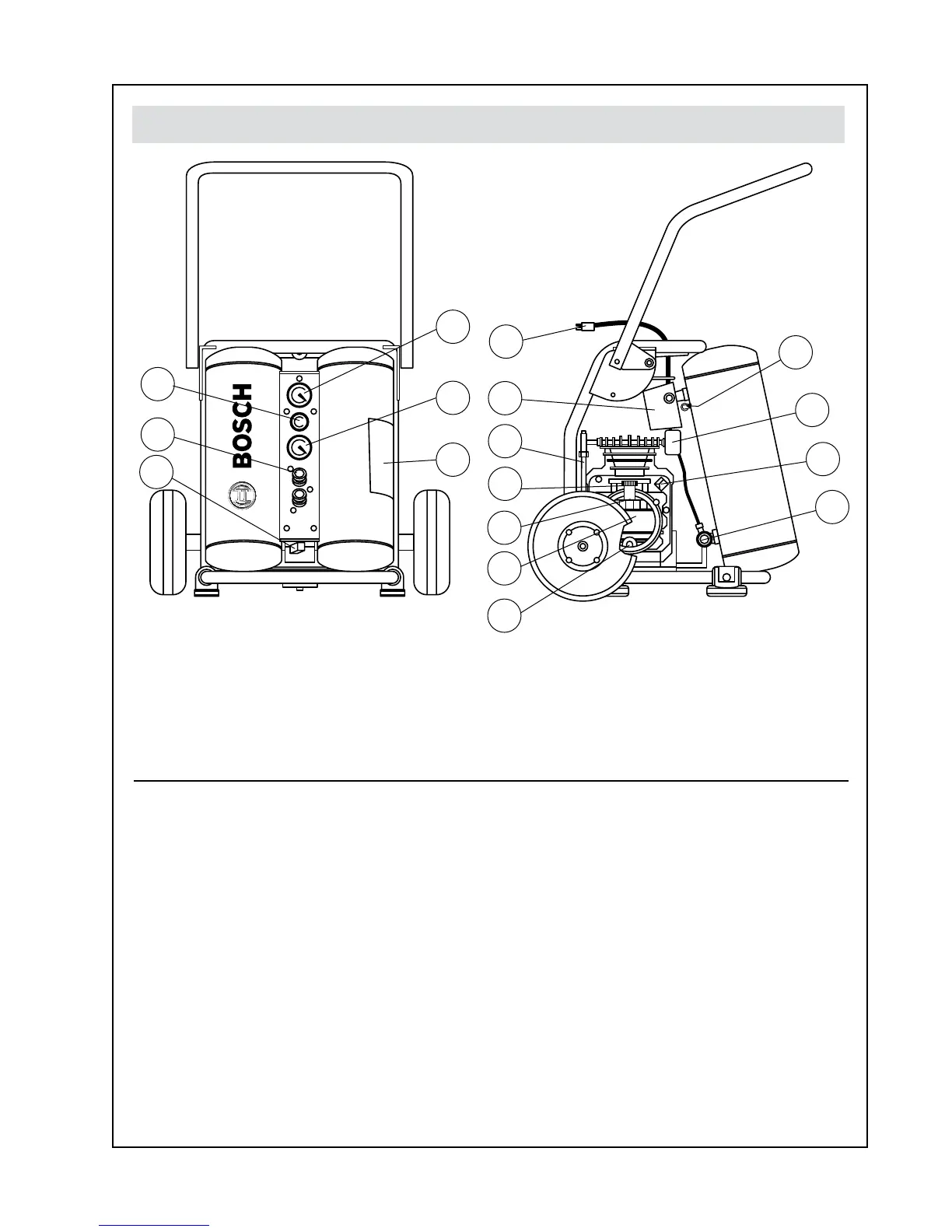

1. Warning Label
2. Pressure Switch
3. Pump Discharge Line
4. Oil Dipstick
5. Air Compressor Pump
6. Thermal Overload
7. Pump Oil Fill Port
8. Pump Oil Drain
9. Air Filter
10. Check Valve
11. Electric Power Cord
12. Safety Release Valve
13. Pressure Gauge - Tank Psi
14. Pressure Regulator
15. Pressure Gauge - Outlet Psi
16. Outlet Fittings
17. Tank Drain Valve
Specications: CET4-20W
Product Size: 22” x 21.5” x 19.75”
(handle down)
Weight: 84.9 lbs.
HP: 2
CFM @ 100 psi: 4.9
RPM: 3400
dBA: 80
Recovery Time: 10 sec.
Motor: 2-Pole Induction
Drive Type: Direct
Maintenance: Oil
5
8
11
14
16
3
6
17
13
15
2
4
9
10
7
1
12
