en Installation instructions
40

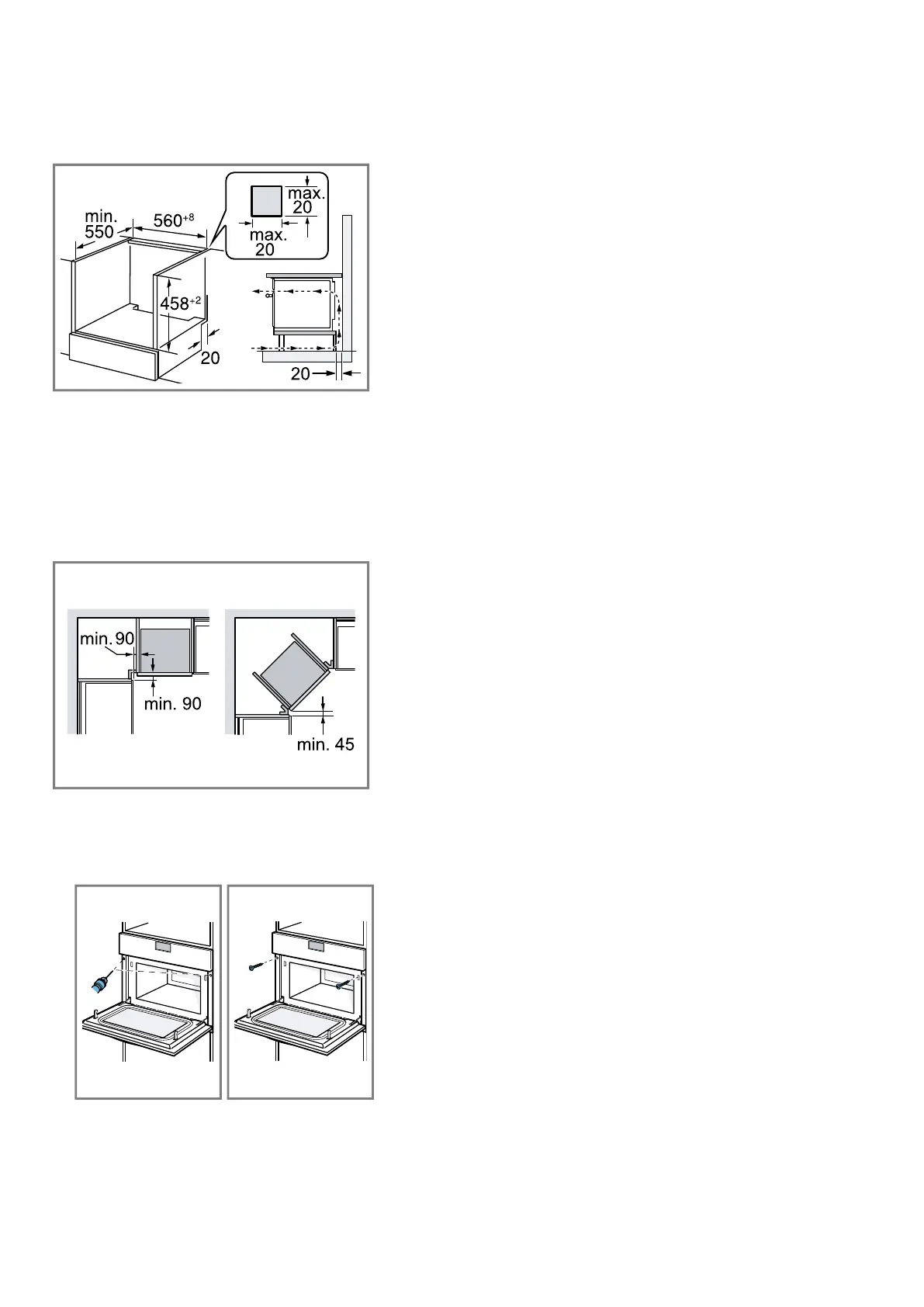

18.6 Installation below a worktop
Observe the installation dimensions and the safety
clearances when installing below a worktop.
To ventilate the appliance, the intermediate floor must
have a ventilation cut-out.
If the appliance is installed below a hob, observe the
hob installation instructions.
18.7 Corner installation
Observe the installation dimensions and the safety
clearances when installing in a corner.
18.8 Installing the appliance
1.
Centre the appliance.
2.
Screw the appliance onto the unit.
18.9 Removing the appliance
1.
Disconnect the appliance from the power supply.
2.
Undo the fastening screws.
3.
Lift the appliance slightly and pull it out completely.
