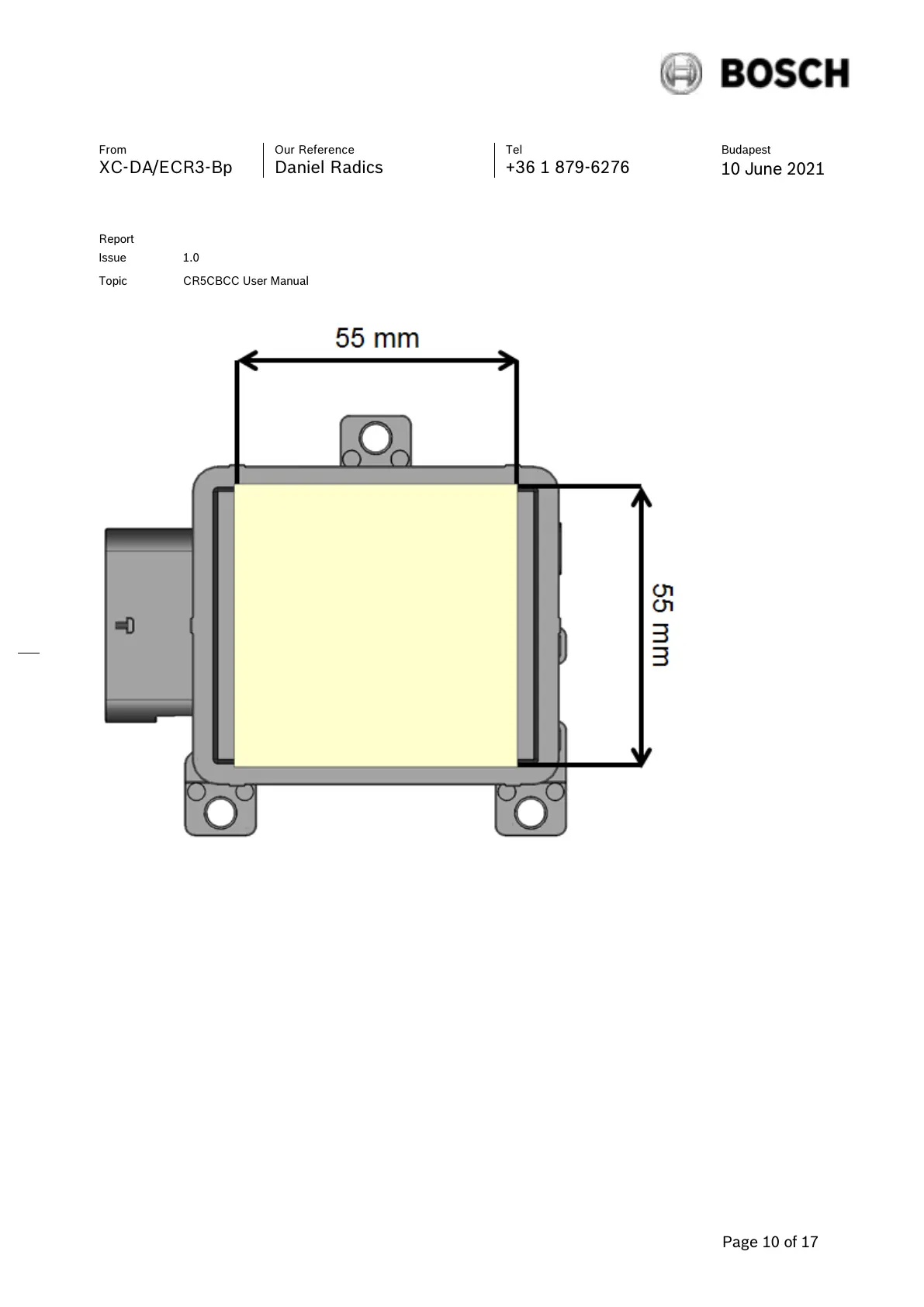

Figure 3: Footprint of the radar cone.
For better visibility, the footprint is shown on top of the sensor housing.
Radar cone definition for covered installation (CR5CB):
The horizontal opening angle depends on the angle range that is evaluated by the sensor in
azimuth and elevation, whereby the opening angle of the radar cone has to be larger than the
angle range that is evaluated. For covered integration the radar cone is 10° larger than the used
angle range that is evaluated by the sensor.
Radar cone:
• ±80°
(1)
(tbc) in horizontal direction (not including misalignment)
• ±20° (tbc) in vertical direction (not including misalignment)
(1)
Valid for angle measurement range of ±75°
