3 Installation
The module and additional batteries are typically mounted inside a separate enclosure (such
as, the D8103, the D8108A, or the D8109) adjacent to the control panel’s enclosure.

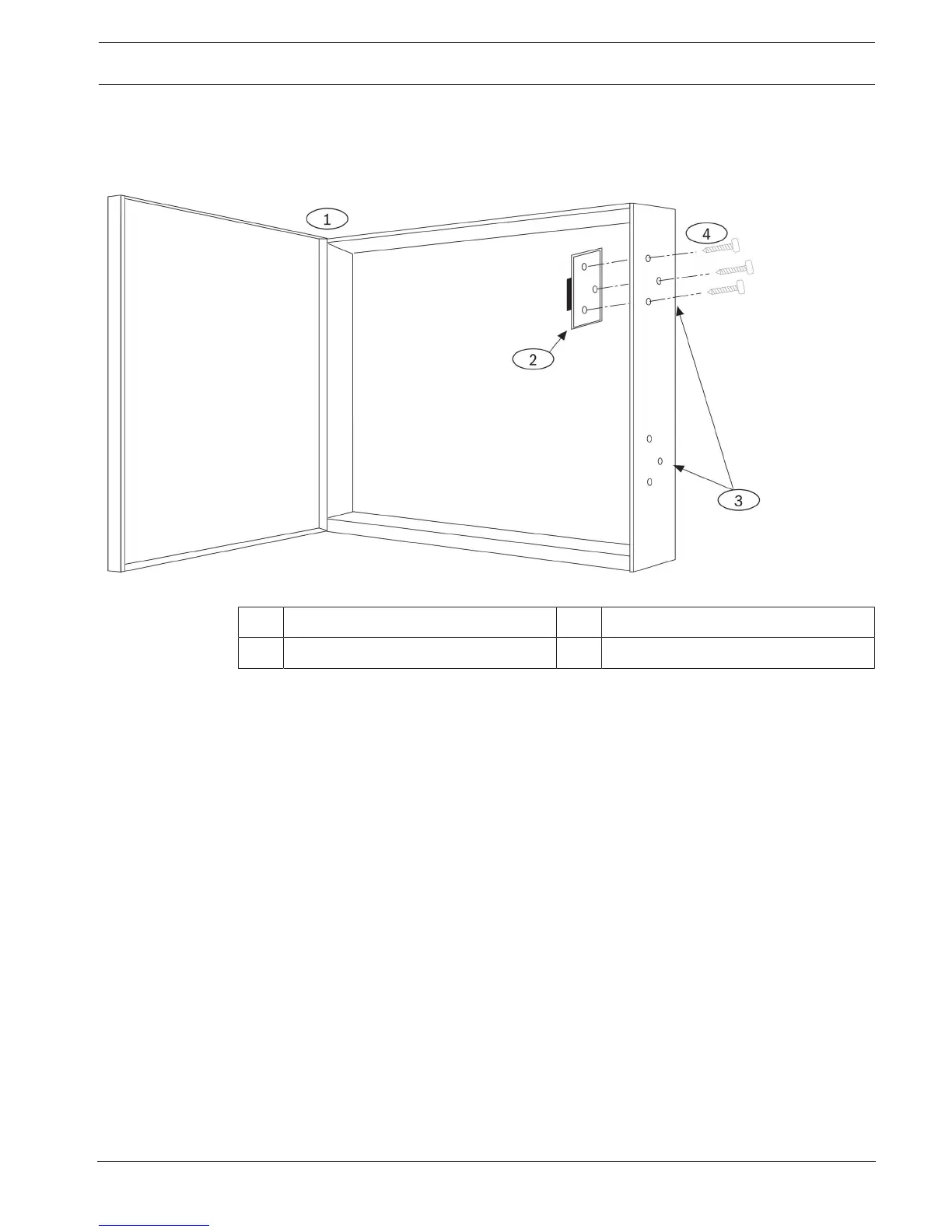

Figure3.1: Module installation
1 Enclosure 3 Mounting locations
2 Module 4 Mounting screws (3)
Install the module in one of the vertical mounting locations. The upper mounting location is
recommended if two 12V, 13.5Ah batteries will be installed. Fasten the module in place with
the three mounting screws provided. The green AC power LED on the module can be viewed if
a knock-out is removed on the front door of the enclosure.
