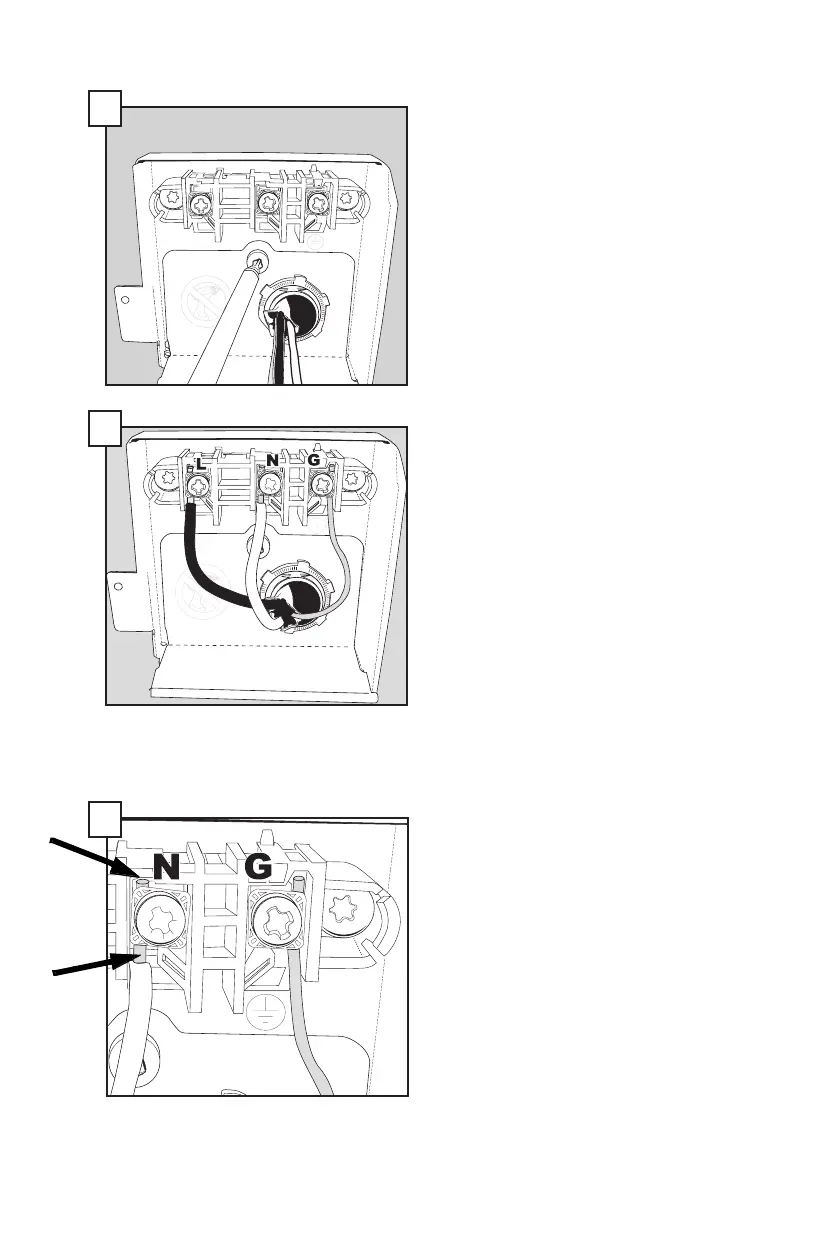

Place the assembled strain relief
plate back into the junction box and
re-attach the screw. Make sure the
tab on the right side of the strain
relief plate is outside the junction
box as you slide it into place.
Do Not Over-tighten or
Remove Terminal Screws
14
Note: Do not loosen or remove
terminal screws! Damage may
occur. Bend the wires so the
exposed leads can reach the
appropriate contacts. Insert the
black (hot) wire into the left opening
on the terminal strip marked “L”, the
white (neutral) wire in the middle
opening of the terminal strip marked
“N”, and the bare copper or green
(ground) wire into the right opening
of the terminal strip marked “G”.
Hand tighten only. Do not use
power tools.
Do Not Over-tighten or
Remove Terminal Screws
15
Make sure that the exposed
(non-insulated) portion of each
stripped wire shows above
and below the terminal screw.
Securely tighten the terminal
screws, but do not over-tighten
or damage may occur.
16
13
