Note: Dimensions are for planning only. For details, see installation manual, or visit www.bosch-home.com/us. Specifications subject to change without notice.
For immediate installation dimensions by fax, call 1.925.284.3558. Use code #8317 for a directory of Bosch products. Also available online at dexpress.com.

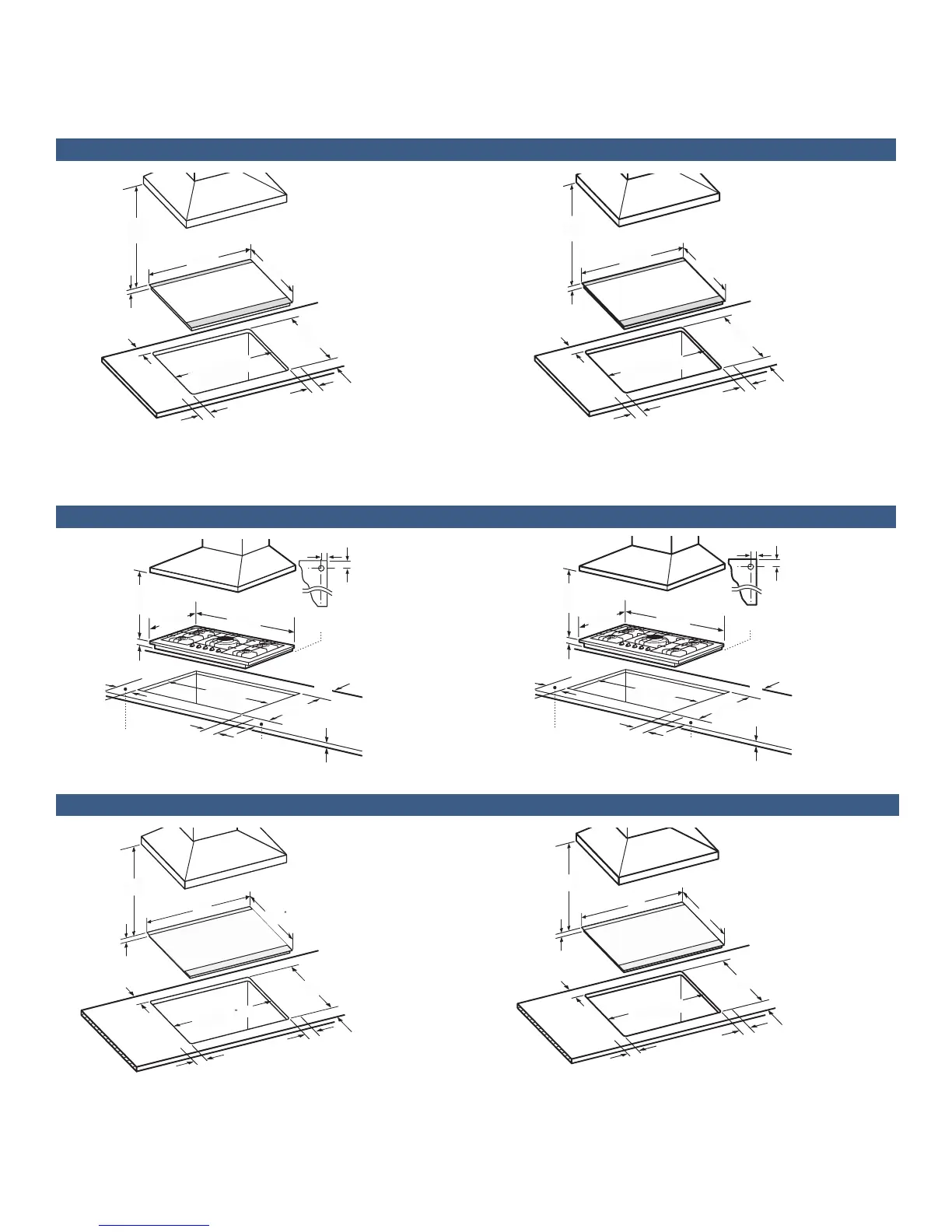

Cooktop Dimensions and Installation
Gas Cooktops
Electric Cooktops
Induction Cooktops
30"***
31"
21¼"
19⅞"–20"
2¼"
1"*
1"*
2"*
4⅛"**
28¾"–28⅞"
* Minimum distance from the cooktop cutout to
the wall
** Installed depth includes 1" of air clearance
*** Minimum distance between surface of the
cooktop and lower edge of the exhaust hood
30"***
37"
21¼"
19⅞"–20"
2¼"
1"*
1"*
2"*
4⅛"**
34¾"–34⅞"
* Minimum distance from the cooktop cutout to
the wall
** Installed depth includes gap of 1" to the
ventilation
*** Minimum distance between surface of the
cooktop and lower edge of the exhaust hood
* Minimum distance from the cooktop
cutout to the wall
** Maximum cutout depth
*** Minimum distance between surface of
the cooktop and lower edge of the
exhaust hood
30"***
31"
21¼"
19⅞"–20"
2¼"
2"*
2"*
2"*
4"**
28¾"–28⅞"
* Minimum distance from the cooktop cutout
to the wall
** Maximum cutout depth
*** Minimum distance between surface of the
cooktop and lower edge of the exhaust hood
30" Models
30" Series Models
36" Models
36" Models
30" Series Models36" Models
* Minimum distance from the cooktop cutout to the wall
** Installed depth includes 1" of air clearance
*** Minimum distance between surface of the cooktop and lower edge of the exhaust hood
* Minimum distance from the cooktop cutout to the wall
** Maximum cutout depth
*** Minimum distance between surface of the cooktop and lower edge of the exhaust hood
3¹³⁄₁₆"
min. 30"
21¼"
31"
13"
1⅞"
19
⅛"
max. 3"
1"
⁹⁄₁₆"
13"
28¹⁵⁄₁₆"
3"
Gas connection
3¹³⁄₁₆"
min. 30"
21¼"
37"
13"
1⅞"
19
1
/
8˝
max. 3"
⁹⁄₁₆"
13"
34¹⁵⁄₁₆"
3"
Gas connection
