20 | English
2 609 140 600 | (23.10.08) Bosch Power Tools
Assembly
Battery Charging
f Use only the battery chargers listed on the
accessories page. Only these battery charg-
ers are matched to the lithium ion battery of
your power tool.
Note: The battery is supplied partially charged.
To ensure full capacity of the battery, complete-
ly charge the battery in the battery charger be-
fore using your power tool for the first time.
The lithium ion battery can be charged at any
time without reducing its service life. Interrupt-
ing the charging procedure does not damage the
battery.
The Li-ion battery is protected against deep dis-
charging by the “Electronic Cell Protection
(ECP)”. When the battery is empty, the machine
is switched off by means of a protective circuit:
The inserted tool no longer rotates.
Do not continue to press the
On/Off switch after the ma-
chine has been automatically switched off. The
battery can be damaged.
The battery is equipped with a NTC temperature
control which allows charging only within a tem-
perature range of between 0 °C and 45 °C. A
long battery service life is achieved in this man-
ner.
Observe the notes for disposal.

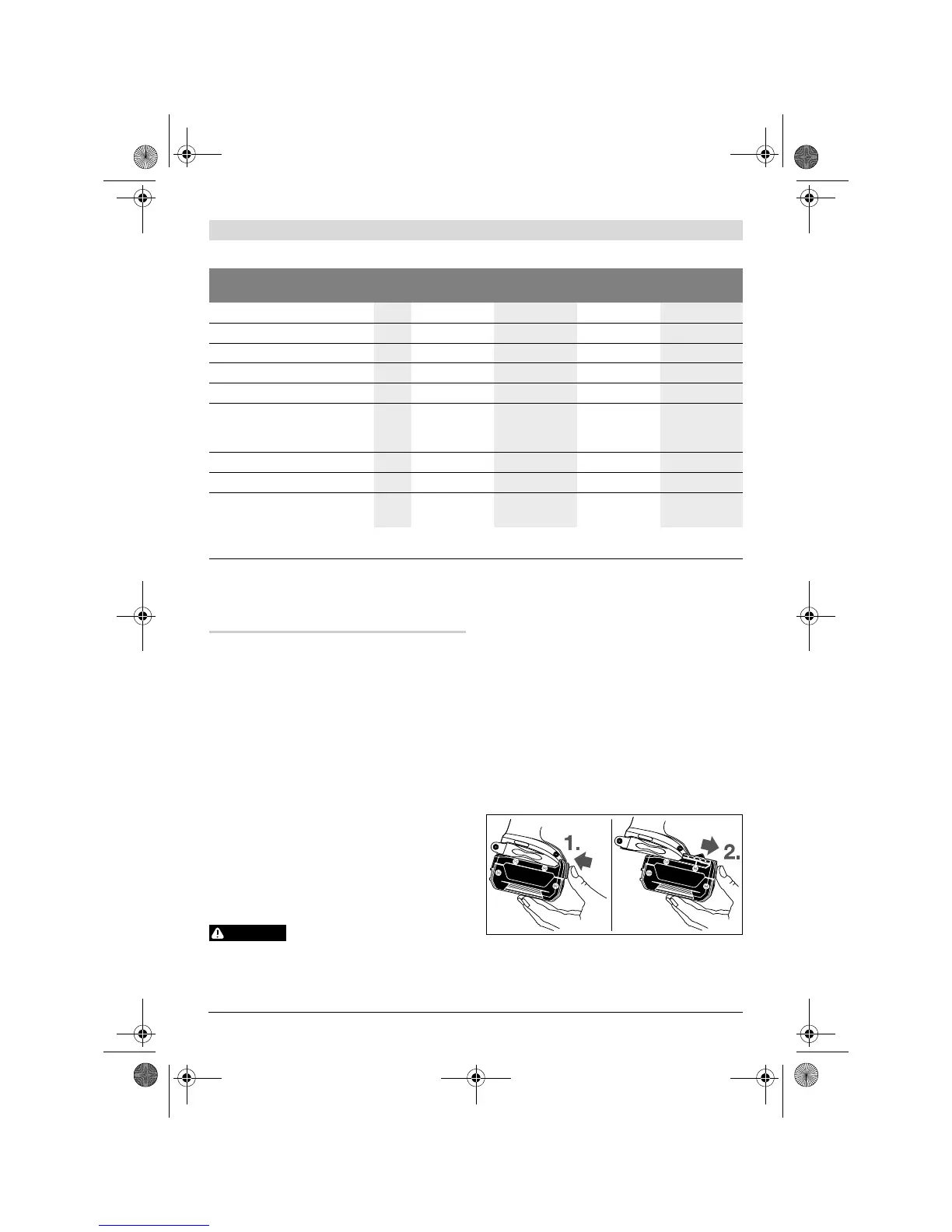

Removing the Battery
The battery 5 is equipped with two locking lev-
els that should prevent the battery from falling
out when pushing the battery unlocking button
6 unintentionally. As long as the battery is in-
serted in the power tool, it is held in position by
means of a spring.
To remove the battery 5, press the unlocking
button 6 and pull out the battery toward the
front. Do not exert any force.
Cordless Impact Screwdriver GDS 14,4 V-LI
Professional
GDS 18 V-LI
Professional
Article number
3 601 JA1 T.. 3 601 JA1 T.. 3 601 JA1 S.. 3 601 JA1 S..
with battery
“premium” “compact” “premium” “compact”
Rated voltage
V= 14.4 14.4 18 18
No-load speed
min
-1
0 –2800 0 –2800 0 –2800 0 –2800
Impact rate
min
-1
0 –3200 0 –3200 0 –3200 0 –3200
Maximum torque, hard
screwdriving application
according to ISO 5393
Nm 170 170 180 180
Bolt size
mm M6 – M16 M6 – M16 M6 – M16 M6 –M16
Tool holder
½" ½" ½" ½"
Weight according to
EPTA-Procedure 01/2003
kg 1.6 1.4 1.7 1.5
Please observe the article number on the type plate of your machine. The trade names of the individual machines
may vary.
WARNING
OBJ_BUCH-832-001.book Page 20 Thursday, October 23, 2008 10:23 AM
