English - 1
1 Release lock
2 Release button for the cutting unit
3 Cutting depth scale
4 Release button for the depth stop
5 Depth stop
6 Chaser rollers
7 Spindle lock
8 On/Off switch
9 Service indicator (GNF 35 CA)
10 Vacuum hose*
11 Vacuuming connection piece
12 Parallel guide* (GNF 20 CA)
13 Guide bolt (GNF 20 CA)
14 Grinder spindle
15 Mounting flange
16 Diamond cutting disc*
17 Spacers
18 Clamping nut
19 Two-pin spanner for clamping nut
20 Break-out tool
* Optional accessories
* Not all of the accessories illustrated or described are
included as standard delivery.

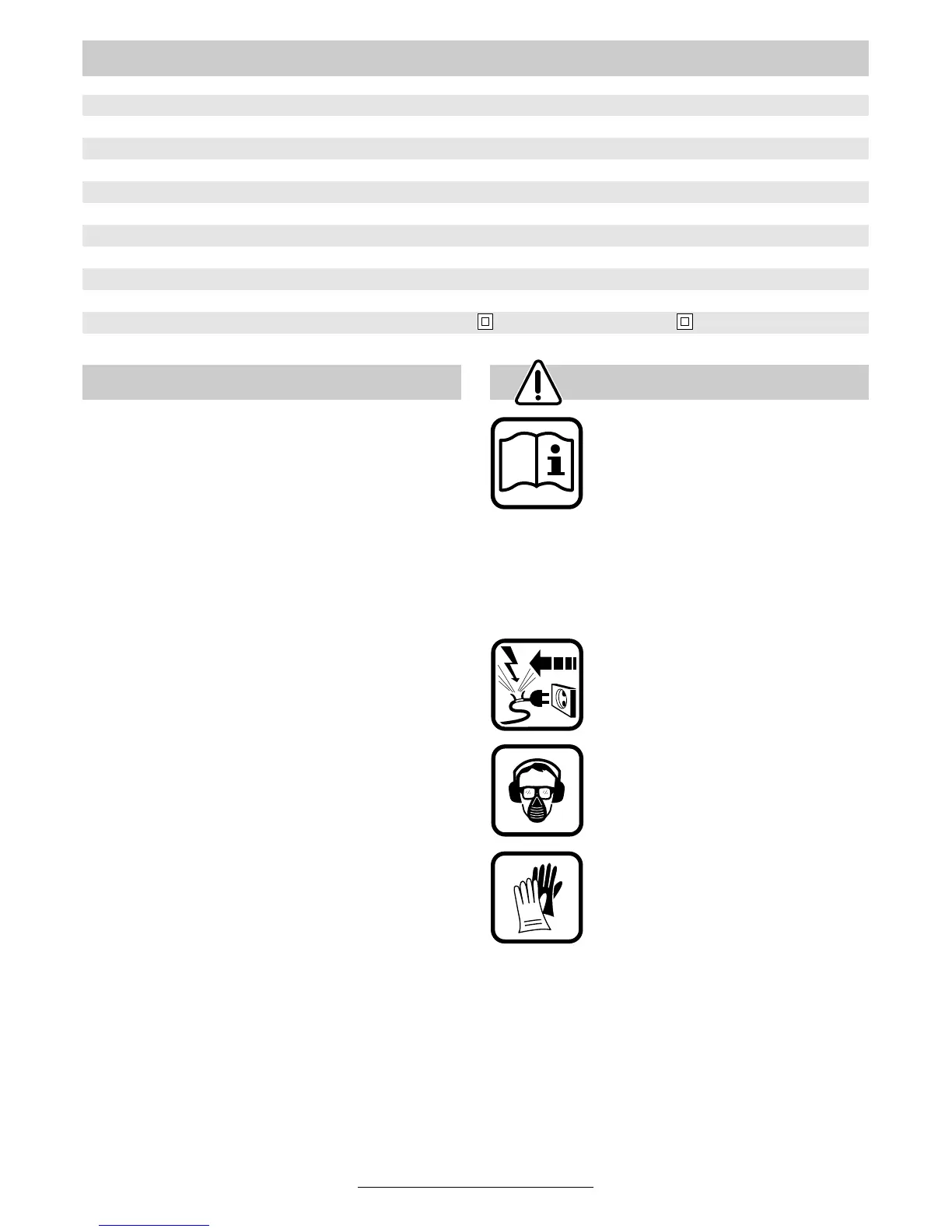

Working safely with this ma-
chine is possible only when the
operating and safety information
are read completely and the in-
structions contained therein are
strictly followed. In addition, the
general safety instructions in the
enclosed booklet must be fol-
lowed. Before using for the first
time, ask for a practical demon-
stration.
If the mains cable is damaged or
cut through while working, do not
touch the cable but immediately
pull the mains plug. Never use the
machine with a damaged cable.
Wear protective goggles, ear pro-
tection and a dust protection mask.
Wear protective gloves and sturdy
shoes.
When necessary, also wear an
apron.
■ When working with the machine, always hold it
firmly with both hands and provide for a secure
stance.
■ Always direct the cable to the rear away from
the machine.
■ Connect machines that are used in the open
via a residual current device (RCD) with an ac-
tuating current of 30 mA maximum. Use only
extension cables that are approved for outdoor
use.
Tool Specifications
Wall chasing machine GNF 20 CA GNF 35 CA
Part number 0 601 612 5.. 0 601 621 7..
Rated power 900 W 1 400 W
Output power 520 W 750 W
No-load speed 9 300 rpm 9 300 rpm
Diamond cutting discs Ø max. 115 mm max. 150 mm
Mounting hole 22.2 mm 22.2 mm
Slot depth 0–20 mm 0– 35 mm
Slot width 7– 23 mm 7– 39 mm
Weight (without optional extras) approx. 2.8 kg 4.1 kg
Safety class / II / II
