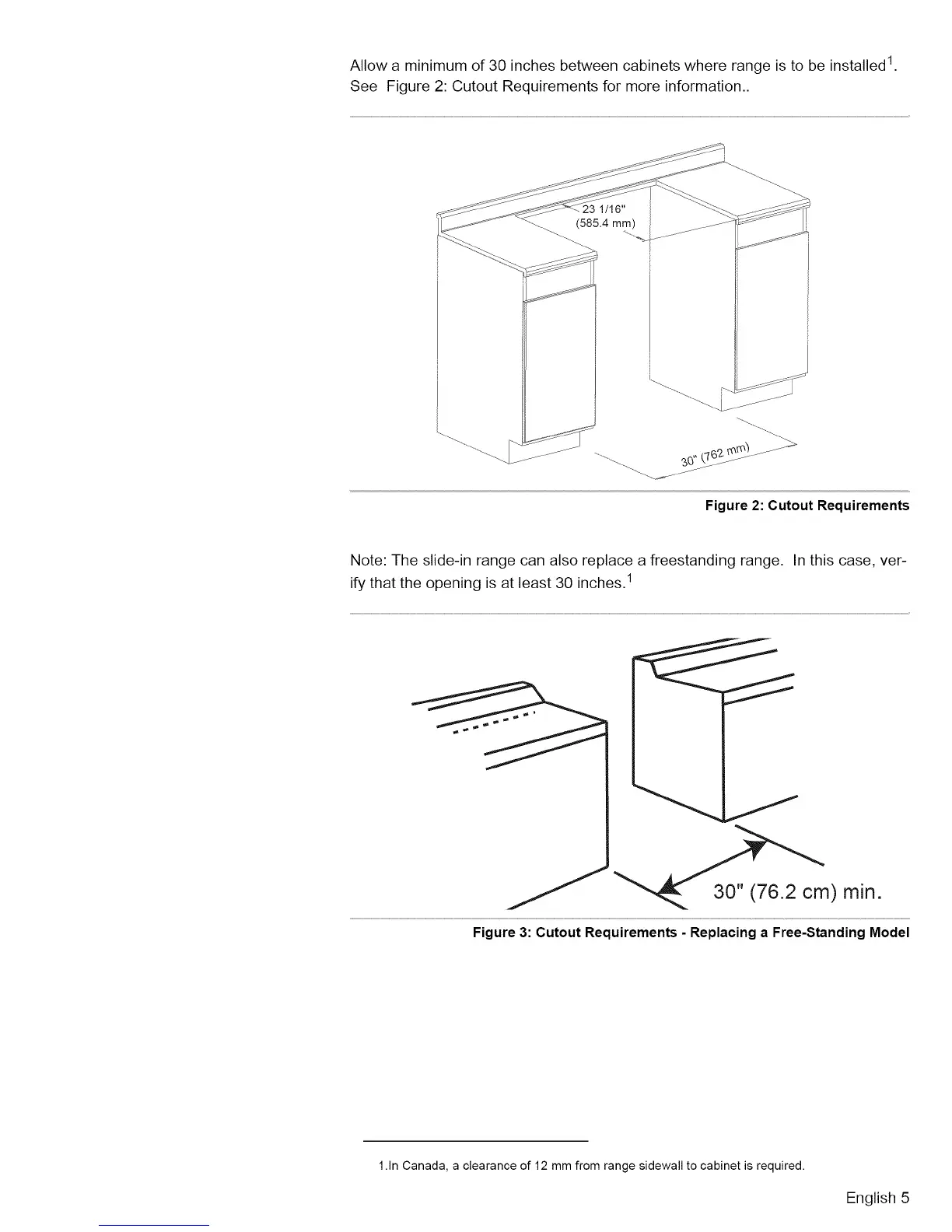

Allowaminimumof30inchesbetweencabinetswhererangeisto beinstalled1.
See Figure2: CutoutRequirementsformoreinformation..
L_,_.
Figure 2: Cutout Requirements
Note: The slide-in range can also replace a freestanding range. In this case, ver-
ify that the opening is at least 30 inches. 1
Figure 3: Cutout Requirements - Replacing a Free-StandingModel
1.In Canada, a clearance of 12 mm from range sidewall to cabinet is required.
English 5
