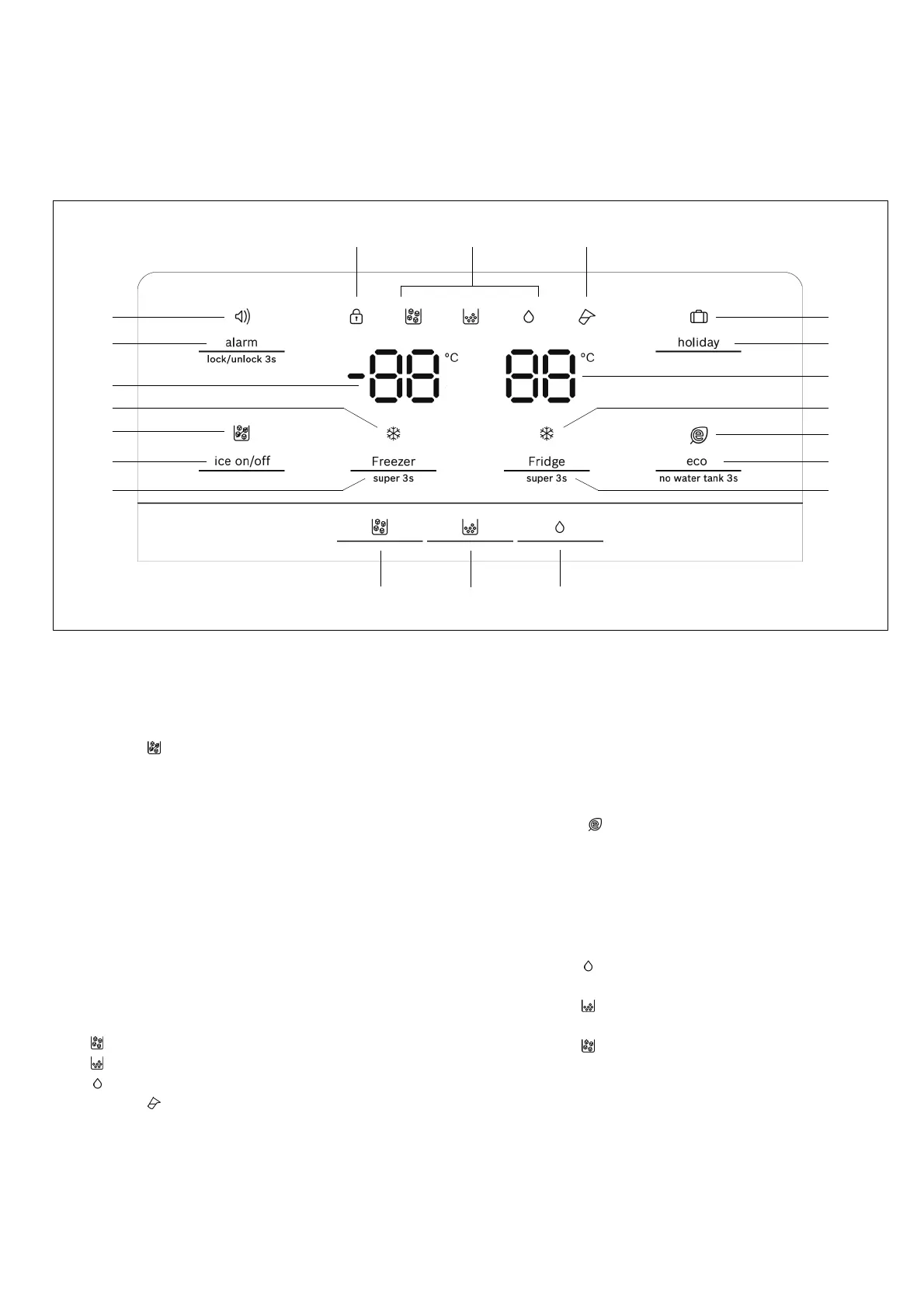

Control and display panel
The control and display panel on the door consists of
2 display areas showing temperatures, displays for
different modes and 9 control buttons.
4
18
9
1920
1
2
3
108
6
7
5
14
17
16
15
12
11
13
1 Button “Freezer / super 3s”
To change temperature of freezer.
2 Button “ice on/off”
To turn ice maker on or off.
3Display
(ice off)
Illuminated, when ice maker is turned off.
4DisplayÊ (super freeze)
Illuminated, when “super freezing” function is
active.
5 Freezer compartment temperature display
6 Button “alarm / lock/unlock 3s”
To clear a present door alarm.
To lock or unlock the control panel and the
dispenser function (child lock).
7DisplayÈ (alarm)
Illuminated in case of door alarm.
8DisplayH (child lock)
Illuminated, when child lock is active.
9 Display of dispenser mode:
“cubed ice” mode active.
“crushed ice” mode active.
“water” mode active.
10 Display
(alarm water storage box)
Water storage box alarm (box not installed or not
correctly installed).
11 Display Ì (holiday)
Illuminated, when “holiday” mode is active.
12 Button “holiday”
To activate or deactivate “holiday” mode.
13 Fridge compartment temperature display
14 Display Ê (super cool)
Illuminated, when “super cooling” function is
active.
15 Display
(eco)
Illuminated, when “energy save” mode is active.
16 Button “eco / no water tank 3s”
To turn energy save mode on or off.
To clear the “water storage box alarm”.
17 Button “Fridge / super 3s”
To change temperature of refrigerator.
18 Button
To activate dispenser mode “water”.
19 Button
To activate dispenser mode “crushed ice”.
20 Button
To activate dispenser mode “cubed ice”.
