Bosch Kiox - 1 Introduction to Operating Instructions; 1.1 Manufacturer Information; 1.4 Safety Warnings and Markups

Technical data
On-board computer Kiox
Product code BUI330
Max. charging current of
USB port
A)
mA 1000
USB port charging voltage V 5
USB charging cable
B)
1 270 016
360
Operating temperature °C –5 to +40
Charging temperature °C 0 to +40
Storage temperature °C –10 to +50
Internal lithium-ion bat-
tery
V
mAh
3.7
230
Protection rating
C)
IP x7 (dust-
proof, water-
tight)
Weight, approx. g 60
BLUETOOTH low energy®
– Frequency MHz 2400–2480
– Transmission power mW < 10
A)
At an ambient temperature of < 25 °C
B)
Not included as part of standard delivery
C)
When the USB cover is closed

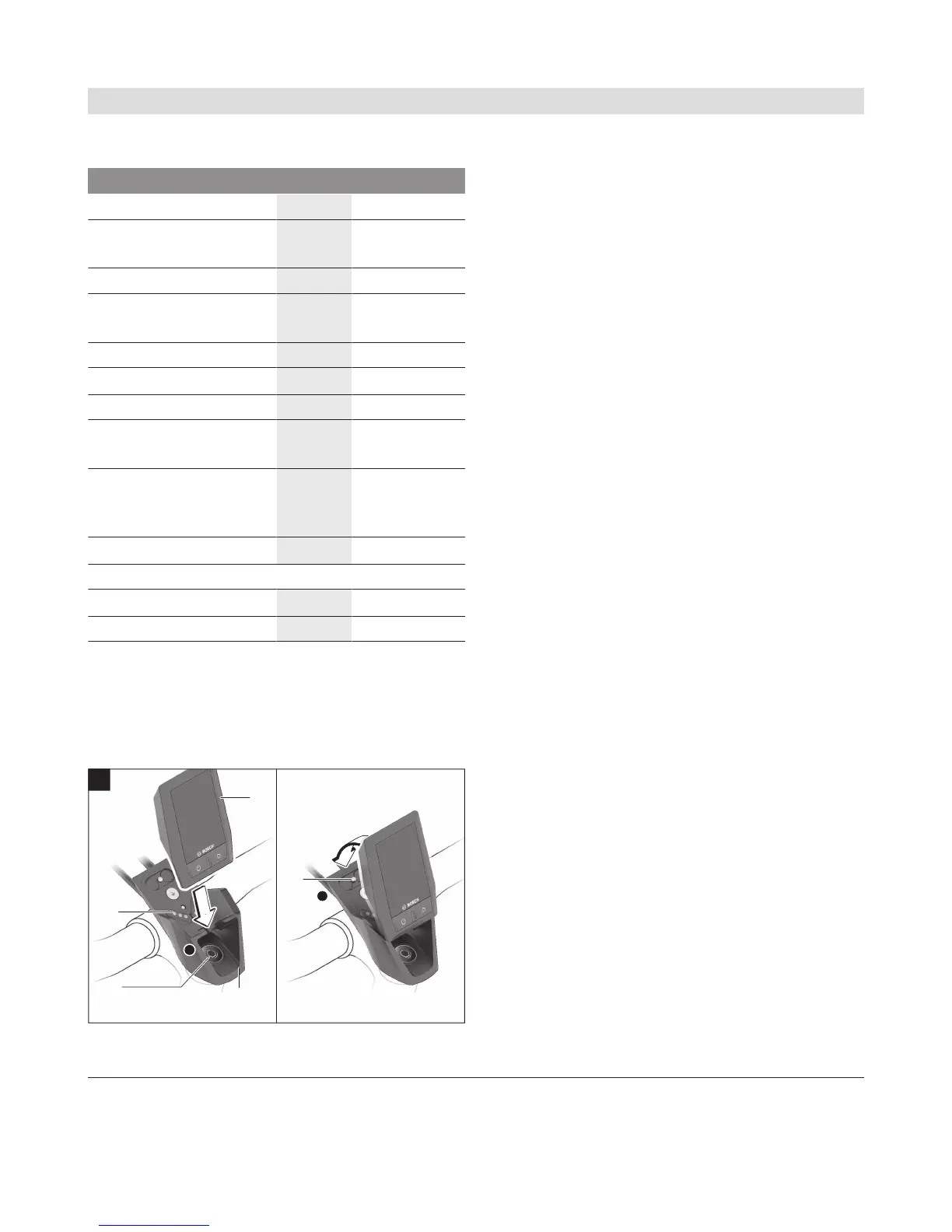

Assembly
1
2
A
(1)
(5)
(14)
(16)
(15)
(1)
On-board computer
(5)
Holder for on-board computer
(14)
Drive unit contacts
(15)
Locking screw for on-board computer
(16)
Headset screw
Fitting and removing the on-board
computer (see figure A)
Fit the lower part of the Kiox into the holder (5) first
and tilt it forward gently until you can feel that the on-
board computer is firmly fixed in the magnetic holder.
Note: To prevent the on-board computer falling out of
the holder in the event of impact, the on-board com-
puter can also be secured with a securing strap (avail-
able as an option).
To remove the on-board computer, hold it by the top
end and pull it towards you until it disengages from
the magnetic holder.
u When you park up the eBike, remove the on-
board computer.
The on-board computer can be secured in place to
prevent it from being removed from the holder. To do
this, loosen the headset screw (16) until the Kiox
holder can be swivelled sideways. Put the on-board
computer in the holder. Screw the locking screw (M3
thread, 6 mm long) from below into the thread pro-
vided in the on-board computer (using a longer screw
may damage the on-board computer). Swivel the
holder back into place and tighten the headset screw
in accordance with the manufacturer's specifications.
Operation
Before initial commissioning
The Kiox is supplied with a partially charged battery.
Before using it for the first time, this battery must be
charged for at least one hour via the USB port (see
"Energy supply of the on-board computer",
pageEnglish–6) or via the eBike system.
The control unit should be attached such that the but-
tons are almost perpendicular to the handlebars.
English – 5
