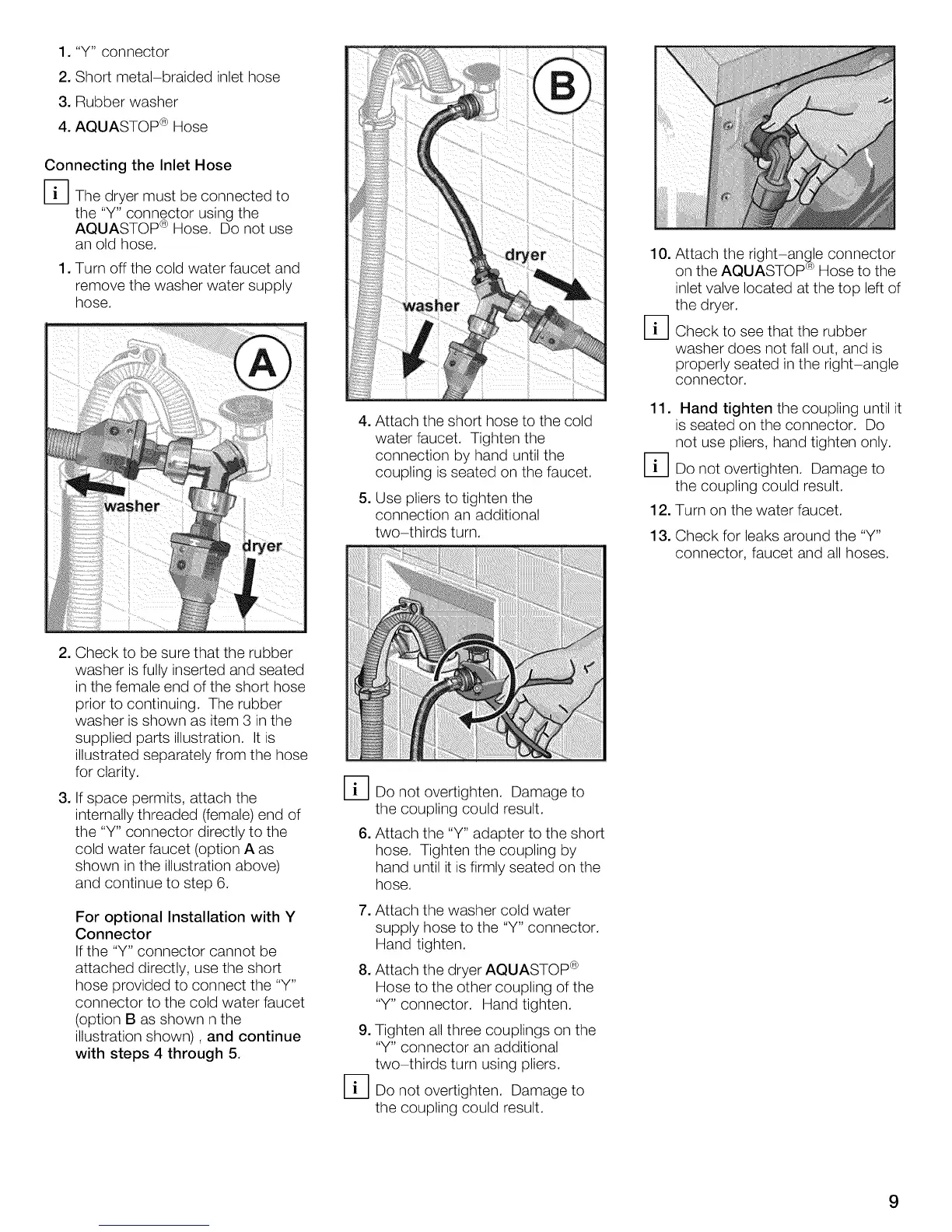

Bosch Nexxt Series User Manual

1. "Y" connector
2. Short metal-braided inlet hose
3. Rubber washer
4. AQUASTOP ® Hose
Connecting the Inlet Hose
D The dryer must be connected to
the "Y" connector using the
AQUASTOP ® Hose. Do not use
an old hose.
1. Turn off the cold water faucet and
remove the washer water supply
hose.
2. Check to be sure that the rubber
washer is fully inserted and seated
in the female end of the short hose
prior to continuing. The rubber
washer is shown as item 3 in the
supplied parts illustration. It is
illustrated separately from the hose
for clarity.
3. If space permits, attach the
internally threaded (female) end of
the "Y" connector directly to the
cold water faucet (option A as
shown in the illustration above)
and continue to step 6.
For optional Installation with Y
Connector
If the "Y" connector cannot be
attached directly, use the short
hose provided to connect the "Y"
connector to the cold water faucet
(option B as shown n the
illustration shown), and continue
with steps 4 through 5.
4. Attach the short hose to the cold
water faucet. Tighten the
connection by hand until the
coupling is seated on the faucet.
5. Use pliers to tighten the
connection an additional
two-thirds turn.
D Do not overtighten. Damage to
the coupling could result.
6. Attach the "Y" adapter to the short
hose. Tighten the coupling by
hand until it isfirmly seated on the
hose.
7. Attach the washer cold water
supply hose to the "Y" connector.
Hand tighten.
8. Attach the dryer AQUASTOP ®
Hose to the other coupling of the
"Y" connector. Hand tighten.
g,
%
Tighten all three couplings on the
"Y" connector an additional
two-thirds turn using pliers.
Do not overtighten. Damage to
the coupling could result.
10. Attach the right-an_le connector
on the AQUASTOP _ Hose to the
inlet valve located at the top left of
the dryer.
%
11.
%
Check to see that the rubber
washer does not fall out, and is
properly seated in the right-angle
connector.
Hand tighten the coupling until it
is seated on the connector. Do
not use pliers, hand tighten only.
Do not overtighten. Damage to
the coupling could result.
12. Turn on the water faucet.
13. Check for leaks around the "Y"
connector, faucet and all hoses.
9

Bosch Nexxt Series Specifications

General

Brand	Bosch
Series	Nexxt
Capacity	4.0 cu. ft.
Energy Star Certified	Yes
Sensor Drying	Yes
Energy Source	Electric
Color	White
Delay Start	Yes
Wrinkle Prevent Option	Yes
Moisture Sensor	Yes
Control Type	Electronic
Width	24 inches
