NGM5656UC, NGM8656UC
*See section OptiSim® Burner Cap Placement and
OptiSim® Burner Cap Installation for further information.

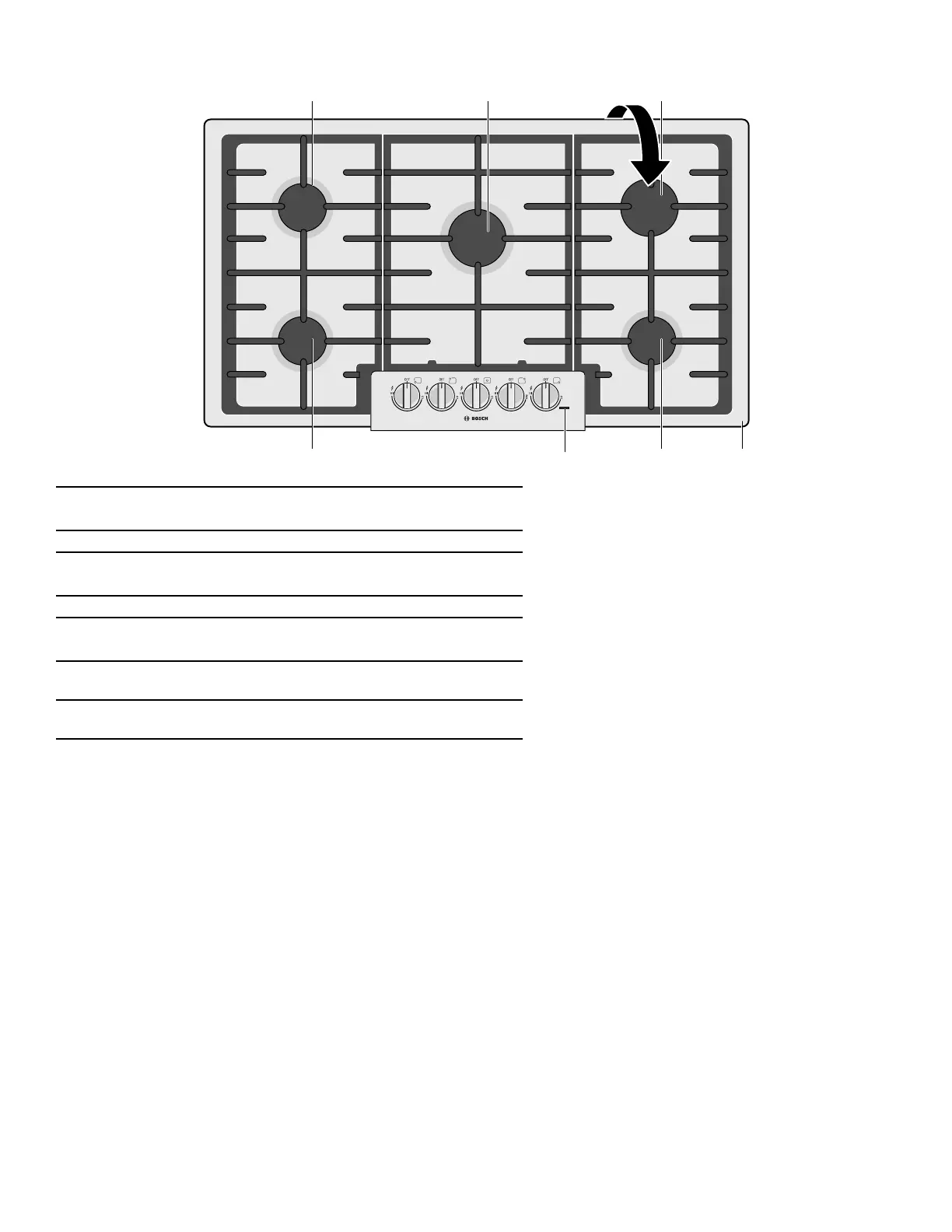

1 Left front burner (10,000 BTU/ 2.93 kW-NGM5656UC)
Left front burner (12,000 BTU/ 3.52 kW-NGM8656UC)
2 Left rear burner (10,000 BTU/ 2.93 kW)
3 Center burner (16,000 BTU/ 4.69 kW- NGM5656UC)
Center burner (19,000 BTU/ 5.57 kW- NGM8656UC)
4 Right rear burner (5,500 BTU/ 1.61 kW) *OPTISIM® feature
5 Right front burner (10,000 BTU/ 2.93 kW-NGM5656UC)
Right front burner (12,000 BTU/ 3.52 kW-NGM8656UC)
6 Burner “On” indicator light
(500 Series does not have a light)
7 Serial Number/Data Plate location
(right front underneath)


