-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

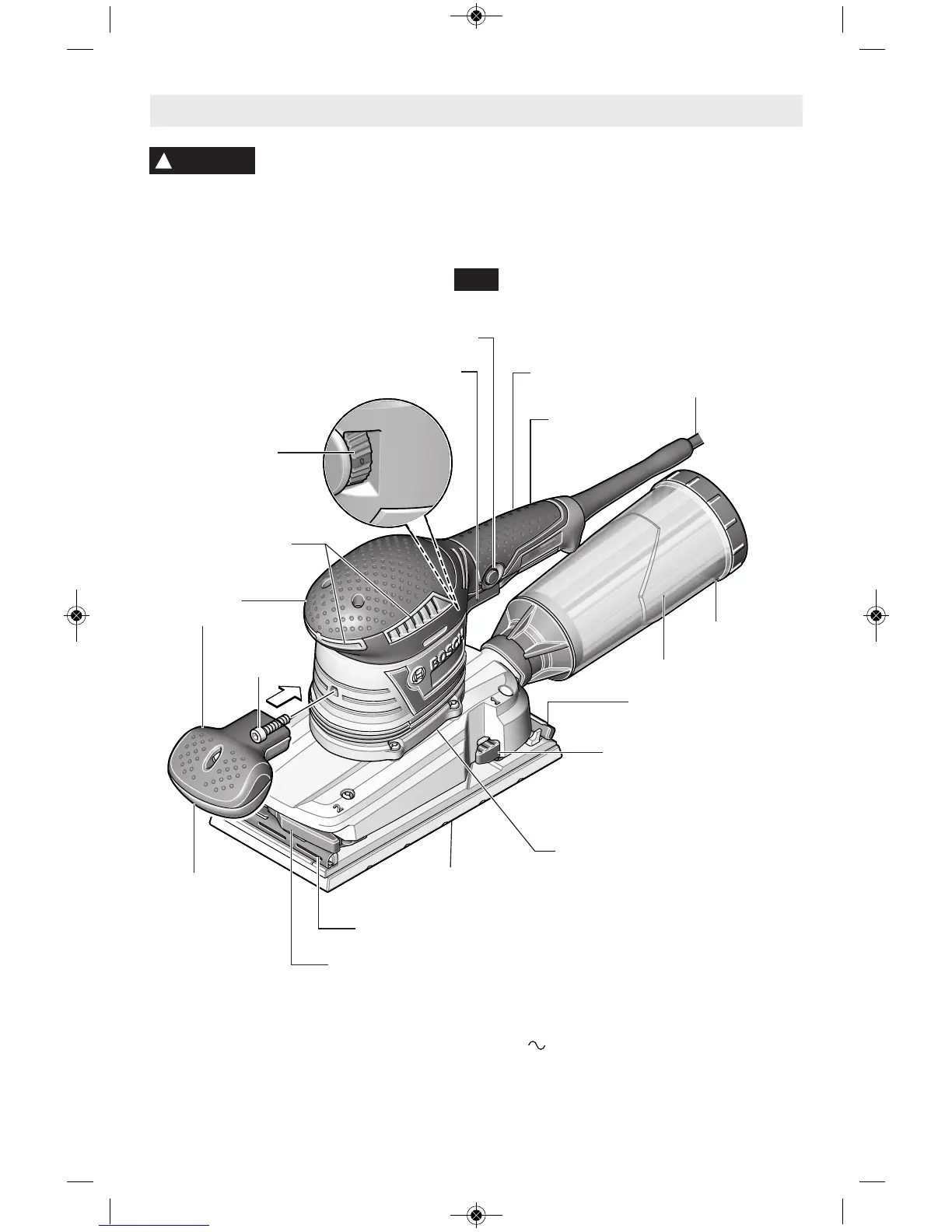

FIG. 1
Orbital Sander
Model number OS50VC
Voltage rating 120 V 60Hz
Pad size 4 1/2" x 11" (1/2 sheet)
VARIABLE SPEED
DIAL
RUBBERIZED
GRIP
FRONT
HANDLE
SCREW
(5 MM
WRENCH)
BACKING PAD
REAR CLAMP
MICROFILTER
DUST
CANISTER
VIBRATION CONTROL
SUSPENSION SYSTEM
Suspension system separates housing
and grip areas above this point from
motor housing and sanding mechanism
for low vibration and maximum comfort
SHEETLOC SUPREME™
REAR CLAMP LEVER
TRIGGER SWITCH
“LOCK-ON” BUTTON
SHEETLOC SUPREME™
FRONT CLAMP LEVER
FRONT CLAMP
AIR VENTS
REAR HANDLE
CORD
RUBBERIZED GRIP
NOTE: For tool specifications refer to the nameplate on your tool.
