Product Features PowerPack Rack
(18)
(27)
(19)
(5)
(7)
(6)
(2)
(1)
(26)

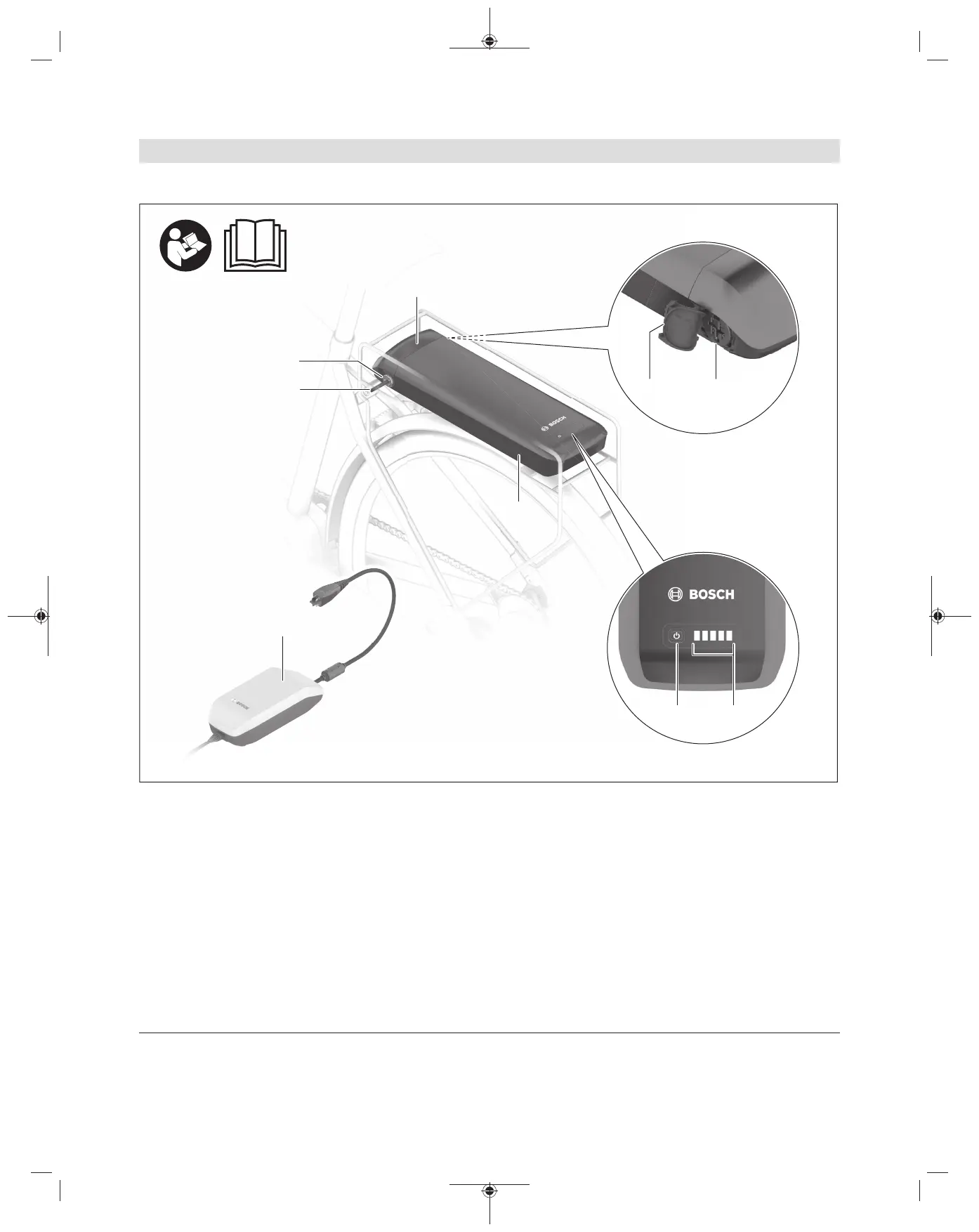

All representations of bike components are schematic
and can deviate from your eBike.
(1)
Key for the battery lock
(2)
Battery lock
(5)
Socket for charging connector
(6)
Operation/battery charge indicator
(7)
On/off button
(18)
Charger
(19)
Charging socket cover
(26)
Rack-mounted battery holder
(27)
Rack-mounted battery
0 275 U07 3PX | (20.03.2023) Bosch eBike Systems
