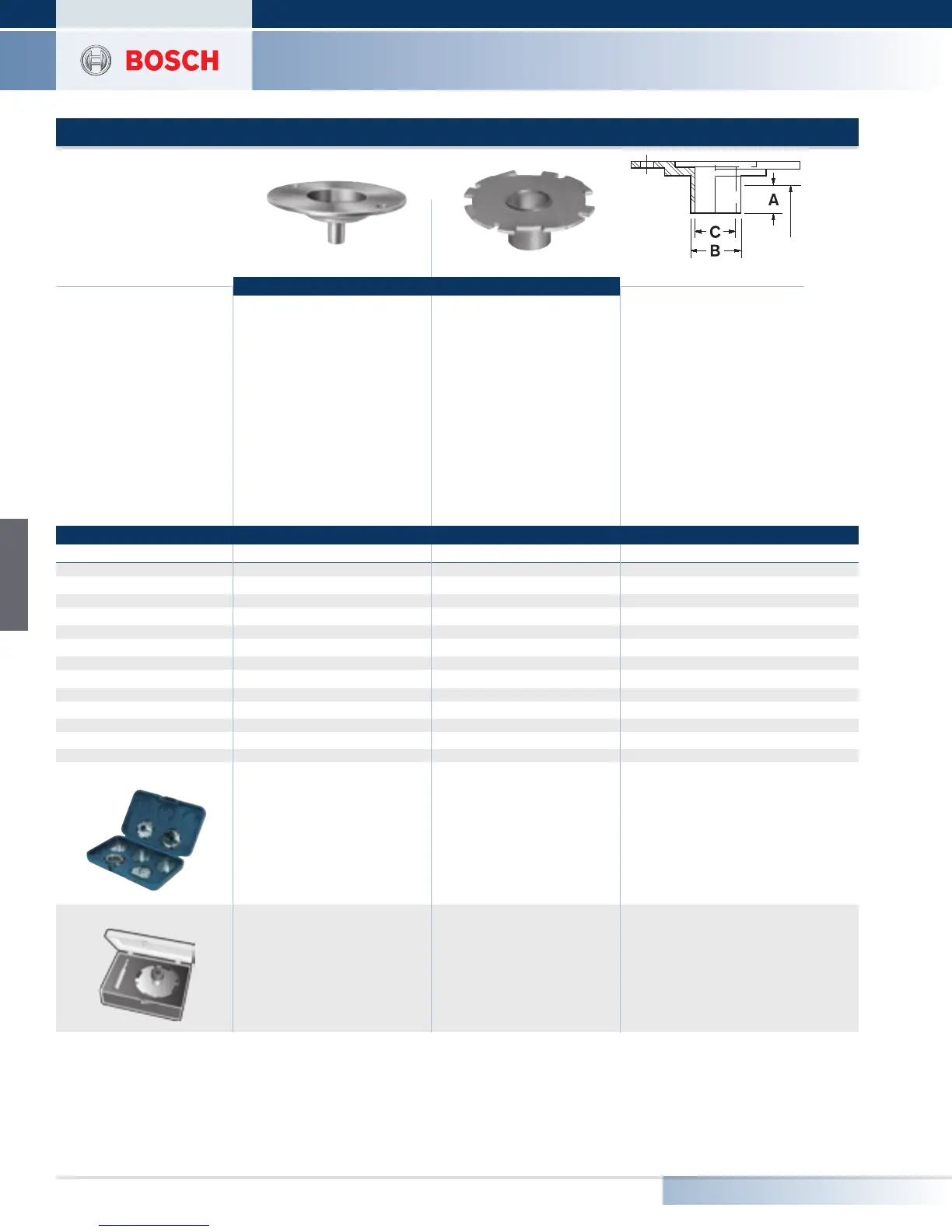

Guides
A
= Distance templet guide tip
extends from bottom of base
B
= Outside diameter templet
guide tip
C
= Inside diameter templet
guide tip
Note: Cut diameter of router bit
should be at least 1/16" less than
dimension “C” on templet guide
Bottom
of Subbase
90085, 90150, 90300, 90303,
1600, 1601, 1601A, 1602, 1602A,
1603, 1604, 1604A, 1606, 1606A,
1608, 1611*, 1611EVS*, 1615*,
1615EVS*
* Adapter plate 3 605 700 511 required for models 1611, 1611EVS, 1615, 1615EVS (standard equipment).
** Inlay templet guides: Use router bit 85982M or 85213M for inlaying wood veneers or inlaying replacement laminate
on damaged countertops. Also see RA1127 router inlay kit.
NOTE: The following Bosch routers are recommended for these applications: 1613AEVS, 1617, 1617EVS, 1618 and 1618EVS.
† Not for use with trim router models 90085,1608 and 1609.
1613, 1613AEVS, 1613EVS, 1614,
1614EVS, 1617,1617EVS, 1617PK,
1617EVSPK, 1618, 1618EVS,
1619EVS, PR10E, PR20EVS
Note: Colt PR10 and PR20 Series Palm
Routers require accessory subbase
PR009 to accept templet guides
Standard Style
RA-Style
Router Item #
Primary Application Templet Guide Item # Templet Guide Dimensions
A B C
General
82859
RA1107
5/16" 7/16" 3/8"
General
82988
RA1109
7/16" 1/2" 13/32"
General
82860
RA1111
3/16" 5/8" 17/32"
General
82867
RA1115
3/16" 3/4" 21/32"
General
82850
RA1117
31/64" 13/16" 5/8"
General
82868
N/A
27/64" 13/16" 5/8"
General
82849
RA1119
31/64" 1" 25/32"
Large dovetail
N/A
RA1105
9/64" 7/16" 3/8"
Radius hinge, 1/4"
82864
RA1113
1/2" 5/8" 17/32"
Radius hinge, 5/8"
82869†
RA1121
7/16" 1-3/8" 1-19/64"
Raised panel & general
83019
N/A
13/32" 7/8" 1-3/16"
Inlays (recess & insert)**
82862**
RA1101**
3/16" 5/16" 1/4"
Small dovetail
82866
RA1103
9/64" 5/16" 17/64"
7 pc. templet guide kit
N/A
RA1125
includes RA1103,
RA1105, RA1109,
RA1113, RA1115
and RA1100 adapter
for threaded templet
guides
Router inlay kit
N/A
RA1127
includes RA1101 and
85982M router bit
Router
