Parts List
Key No. Description Quantity
B FASTENERS (FOR ROUTER TABLE ASSEMBLY)
30 1/4-20 Weld Nut 4
31 #10-32 KEPS Nut 18
32 1/4-20 KEPS Nut 10
33
#10-16 x 5/8″ lg. BT Countersunk Self-Tapping Phillips Screw
6
34 #10-32 ESNA Stop Nut 12
35
#10-32 x 1″ lg. Countersunk Phil. Head Machine Screw
4
36 9/32″ ID x 5/8″ OD x 1/16″ thick Washer 24
37 15/32″ ID x 59/64″ OD x 0.065″ thick Washer 12
38 1/4-20 x 5/8″ lg. Carriage Bolt 2
39 1/4-20 x 1-1/2″ lg. Carriage Bolt 12
40 #10-32 x 1/2″ lg. Truss Head Machine Screw 4
41 #10-32 x 3/8″ lg. Truss Head Machine Screw 1
42 #10-32 x 3/4″ lg. Truss Head Machine Screw 6
43 1/4-20 x 5/8″ lg. Truss Head Machine Screw 6
44 #10-32 x 3/4″ lg. Countersunk Socket Head Screw 8
45 1/4-20 Hex Machine Screw Nut 6
46 7/16-20 Hex Machine Screw Nut 2
47 1/8″ Hex Key (Allen Wrench) 1
FASTENERS (FOR MOUNTING ROUTERS)
32 1/4-20 KEPS Nut 4
48
M4 x 20mm lg. Countersunk Phil. Head Machine Screw
4
49
1/4-20 x 1-1/2″ lg Countersunk Phil. Head Machine Screw
4
50 #10-24 x 3/4
″ lg Countersunk Phil. Head Machine Screw
3

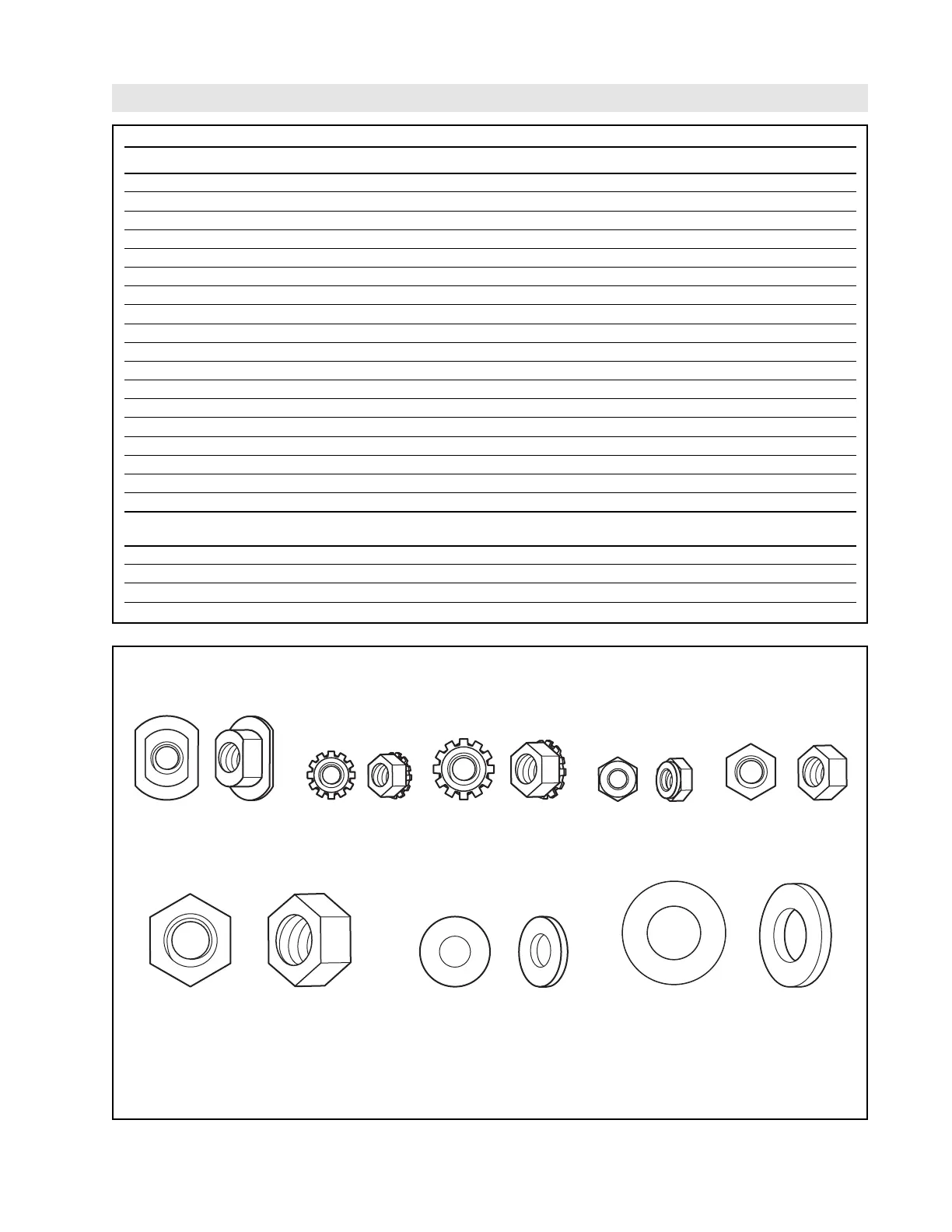

Use the guide below and on page 9 to identify the fasteners included with your Router Table.
Numbers in bold correspond to the key numbers in the parts list above.
(32) 1/4-20
KEPS Nut
(45) 1/4-20 Hex Machine
Screw Nut
(30) 1/4-20 Weld Nut
(34) #10-32 ESNA
Nut
(31) #10-32
KEPS Nut
(36) 9/32″ ID x 5/8″ OD x 1/16″
thick Washer
(37) 15/32″ ID x 59/64″ OD x 0.065″
thick Washer
(46) 7/16-20 Hex Machine
Screw Nut
