Bosch SHU43C06 - Apexx Display Module Disassembly

45
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
–
–
Apexx
Apexx

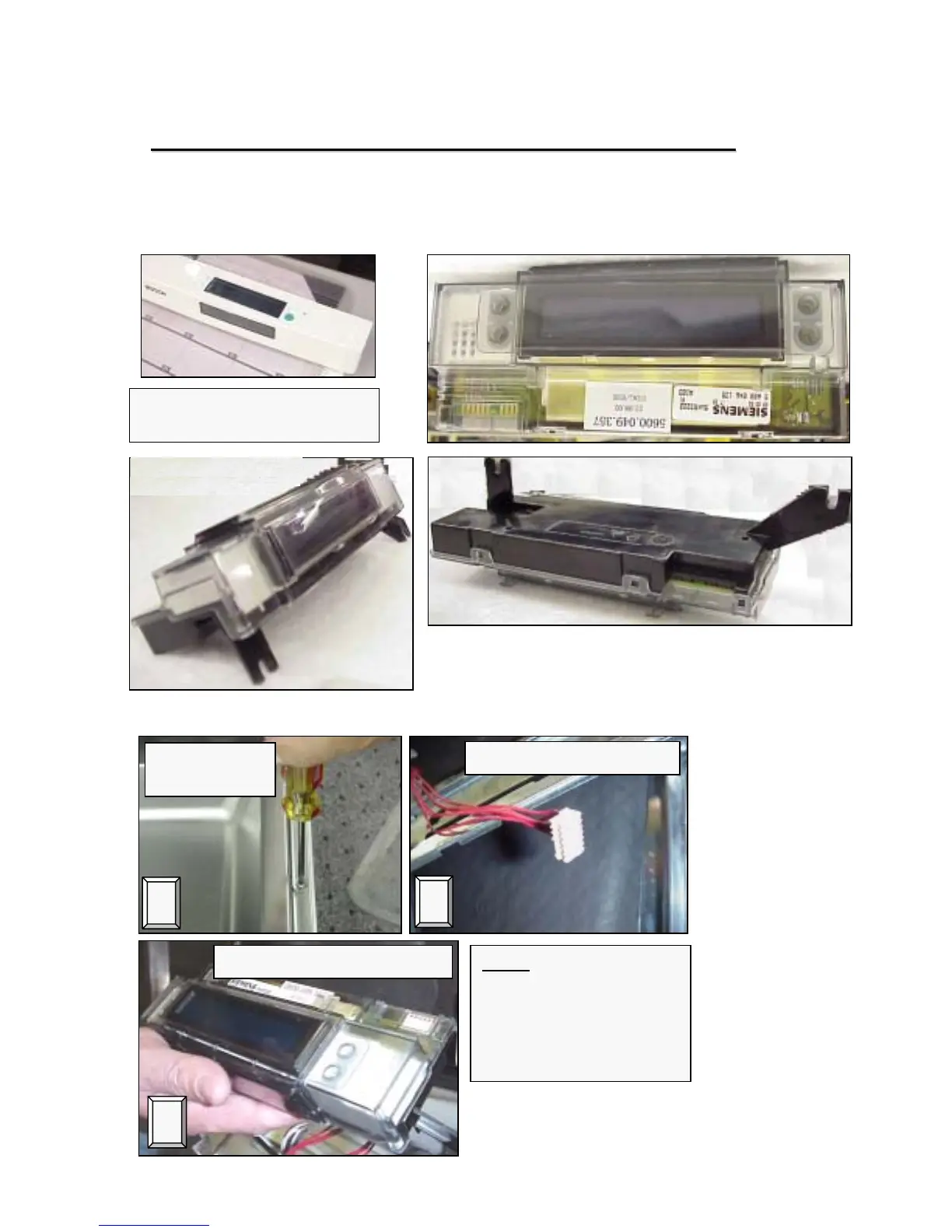

Display Module Disassembly
Display Module Disassembly
Apexx (SHV99A/SHX99B/SHY99A) display modules are mounted on
fascia panels (where control modules are mounted on other models).
These instructions apply to
SHV/SHX/SHY99A models.
front
top
1
Removing
fascia screws
2
Removing wire harness
3
Removing display module NOTE: Control
modules were moved to
the base to make room
for the larger full text
displays in the fascia
panel.
