V. Theory of Operation
V. Theory of Operation
Dispensers
Dispensers

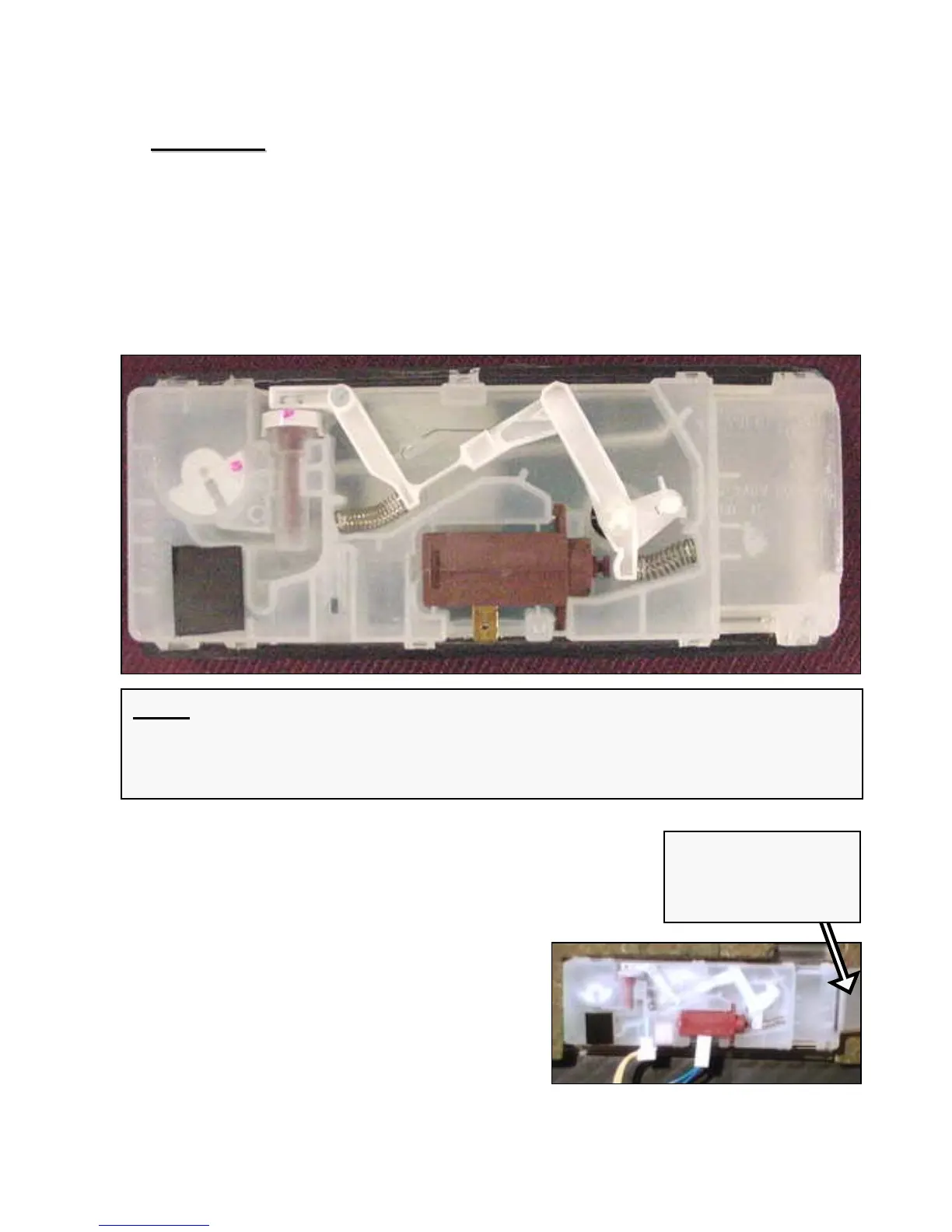

During each wash program, the wax motor opens twice --
once to dispense detergent and again to dispense rinse-aid.
The wax motor opens the same way -- the linkages make the
separate compartments open.
NOTE: The white plastic linkage 1st opens the detergent dispenser door, then
cocks in place to dispense rinse-aid when the wax motor operates the 2nd time.
After the 2nd operation, the linkage resets itself so it will open the dispenser
detergent door for the next wash program.
Condensation
tube (for vented
dispenser)
