Bosch SHV6803 - Measuring Circulation Pump Resistances @ Modules

106
IX.
IX.
Wiring Diagrams/Tech Sheet
Wiring Diagrams/Tech Sheet
Measuring SHU303x/313x/33/430x/432x/53/68/88/99, SHV43/48
Measuring SHU303x/313x/33/430x/432x/53/68/88/99, SHV43/48

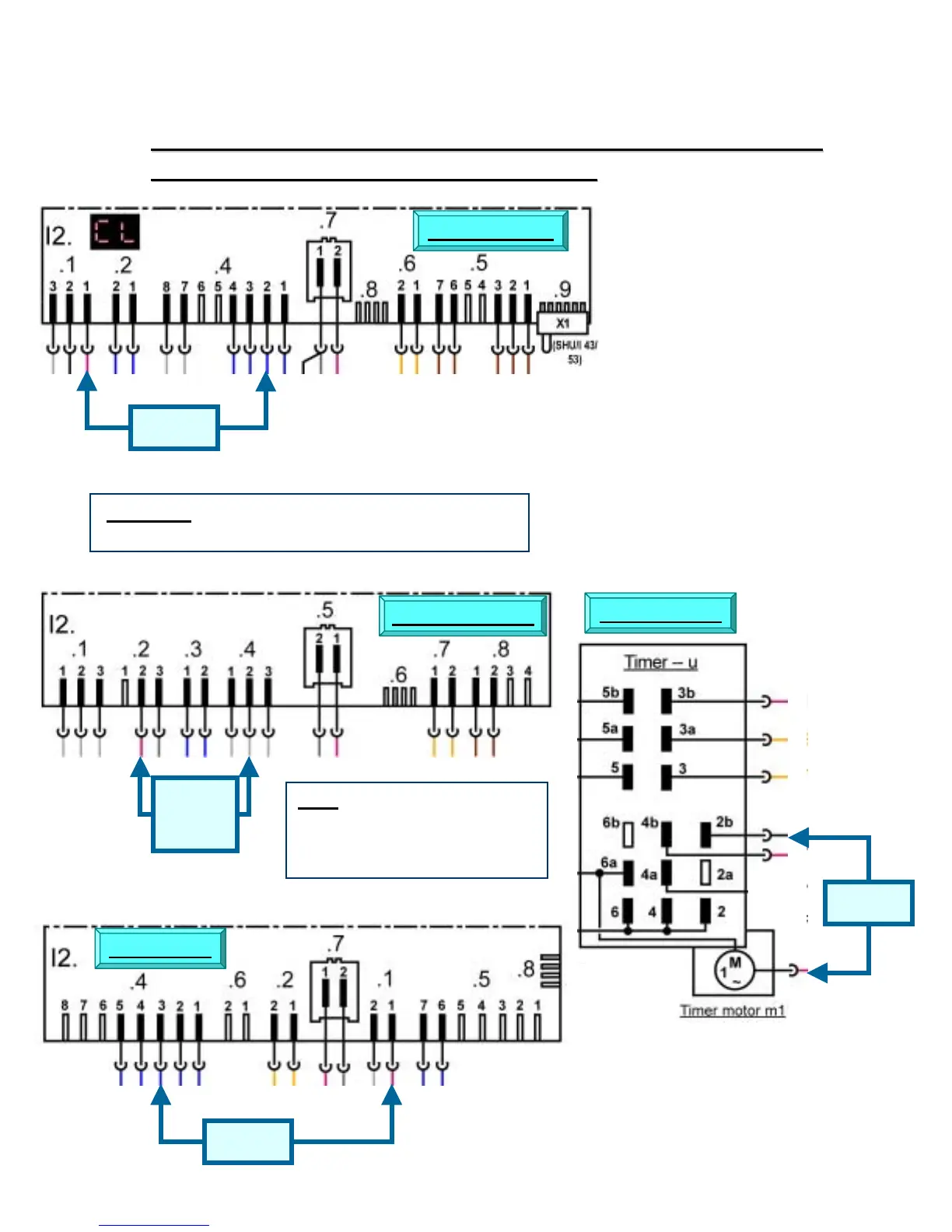

Circulation Pump Resistances @ Modules
Circulation Pump Resistances @ Modules
SHU 430x/53/68
~ 10Ω
CAUTION: Disconnect dishwasher power before
measuring circulation pump motor resistance.
SHU 88/99, SHV 4
~ 10Ω
(with door
closed)
HINT: To measure integrated
model resistances while door
is open, use a screwdriver to
trip door latch closed.
Not SHU 995x
~ 10Ω
SHU 303x/313x
SHU 33/432x
~ 10Ω
