CLICK
Adhesive
backed
cord clip
Leg Adjuster
5"
(127 mm
)
11
10

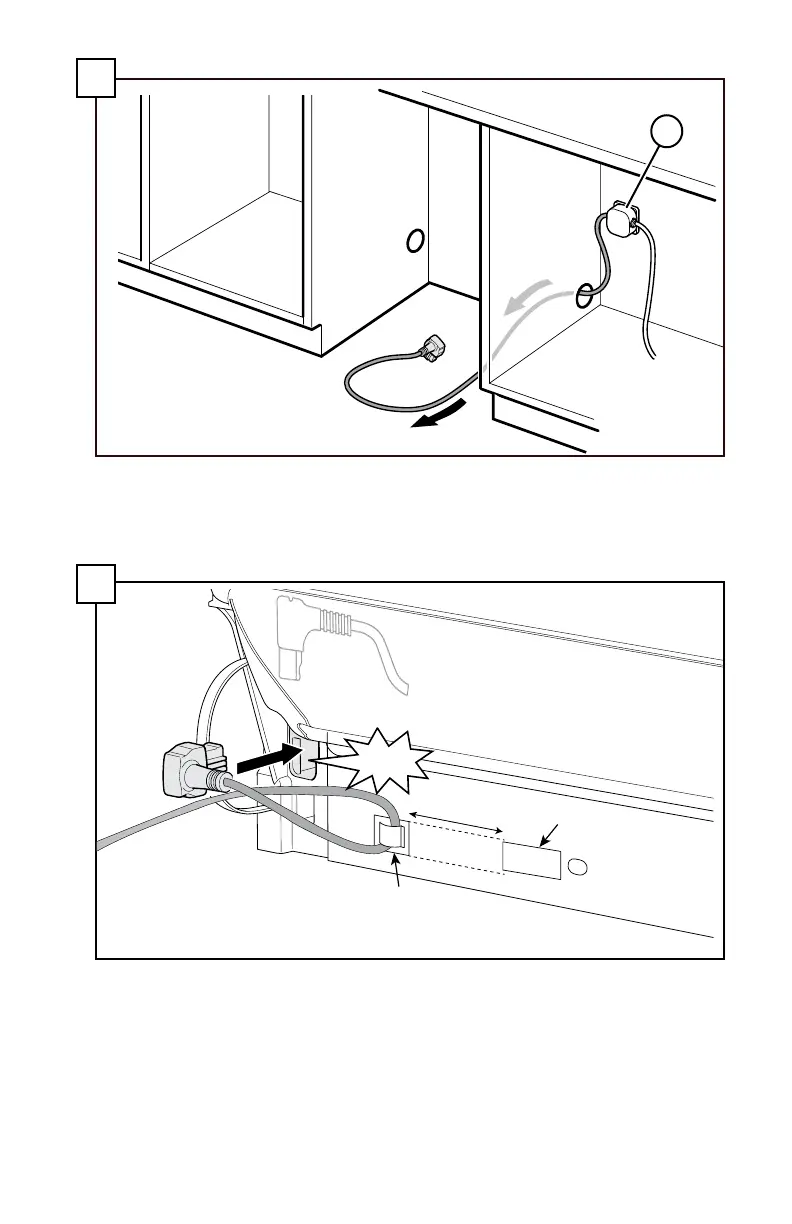

Mount the dishwasher electrical supply junction box (A) and dedicated
receptacle in an accessible cabinet adjacent to the dishwasher (do not
mount the junction box or receptacle behind the dishwasher).
Note: screws are not provided for mounting electrical supply junction box.
A
13
Check all electrical connections to ensure they are secure and then reattach
the junction box cover.
Place adhesive backed cord clip (provided in the installation kit) 5 inches from
leg adjuster as shown in the gure above and route power cord through the clip.
Note: The length of cord measured from the plastic back strap to the receptacle
should be ≤ 47.25" (1,200 mm).
Plug the end of the supply cord into the back of the dishwasher as shown
until it clicks.
