22
Drain Connections

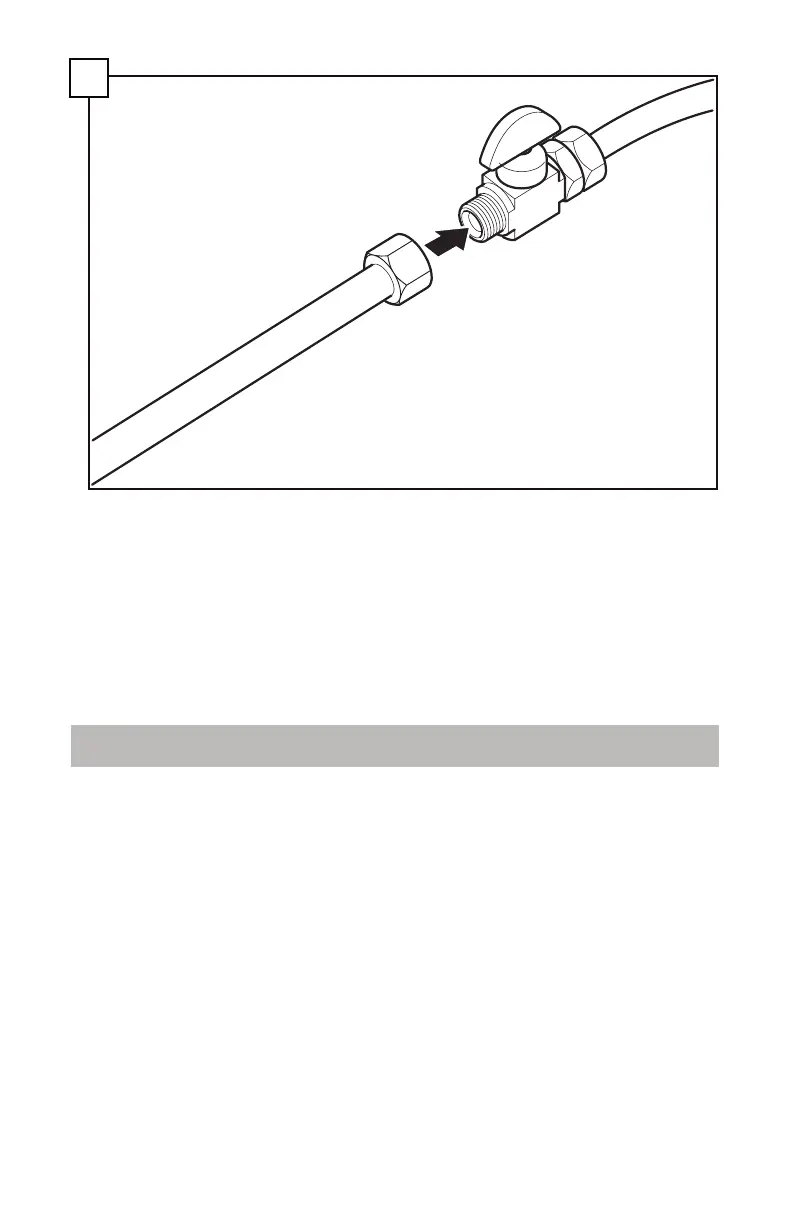

Connect the dishwasher water supply line to the water shut off valve.
You will need to use an approved dishwasher water supply line with
the correct ttings for this connection. Always use the appropriate seal
when making plumbing connections.
After all connections are made, turn on the hot water and check for
leaks.
IMPORTANT NOTES about your drain connection:
• If local ordinance require an air gap, install it according to the manu-
facturer’s instructions.
• If the dishwasher drain hose is to be connected to a disposer
dishwasher drain connection, remove the plug from the disposer’s
dishwasher drain connection.
• The dishwasher drain hose must have one place along its length that is
securely attached 20″ (508mm) above the cabinet oor.
• The drain hose length can be extended if necessary. The maximum
length of the drain hose, including the hose leading to the air gap, is
150″ (3800mm).
23
