Bosch TS2100 - Attach Kick Bar; Attach Top Structure

Step 4
Attach Kick Bar
1. Locate the kick bar and position it between
the left and right wheel assemblies as
shown in figure D.
2. Place one (1) 10 mm star washer onto one
(1) 10 mm x 50 mm hex head bolt. Insert
bolt through the wheel assembly and
thread it into the the kick bar and securely
tighten to 125 in.-lbs.
Repeat this procedure on opposite side.
Step 3 (Continued)
Attach Linkage Bar/Wheel Assemblies
3
. Place another (1) 10 mm flat washer on
bolt between linkage bar/wheel assembly
and upper/lower cross bar assembly.
4. Insert bolt through upper/lower cross bar
assembly, place one (1) 10 mm flat
washer, and loosely tighten with one (1) 10
mm lock nut.
Note: Do not over-tighten lock nut - these
parts need to freely rotate for stand to
operate properly.
Repeat procedure on left side.
Step 5
Attach Top Tube Bar
(Model TS3100 only)
Attach Table Top (Model TS2100)
1. Locate the top tube bar or table top.
Position holes in end of top tube bar or
table top with holes in upper cross bar as
shown in figure E or F.
2. Place one (1) flat washer onto one (1) 10
mm x 100 mm bolt.
3. Insert bolt through top tube bar and place
another (1) flat washer on bolt between top
tube bar and upper cross bar.
4. Insert bolt through upper cross bar, place
one (1) flat washer, and loosely tighten
with one (1) 10 mm lock nut.
Note: Do not over-tighten lock nut - these
parts need to freely rotate for stand to
operate properly.
Repeat this procedure on opposite side.
-7-

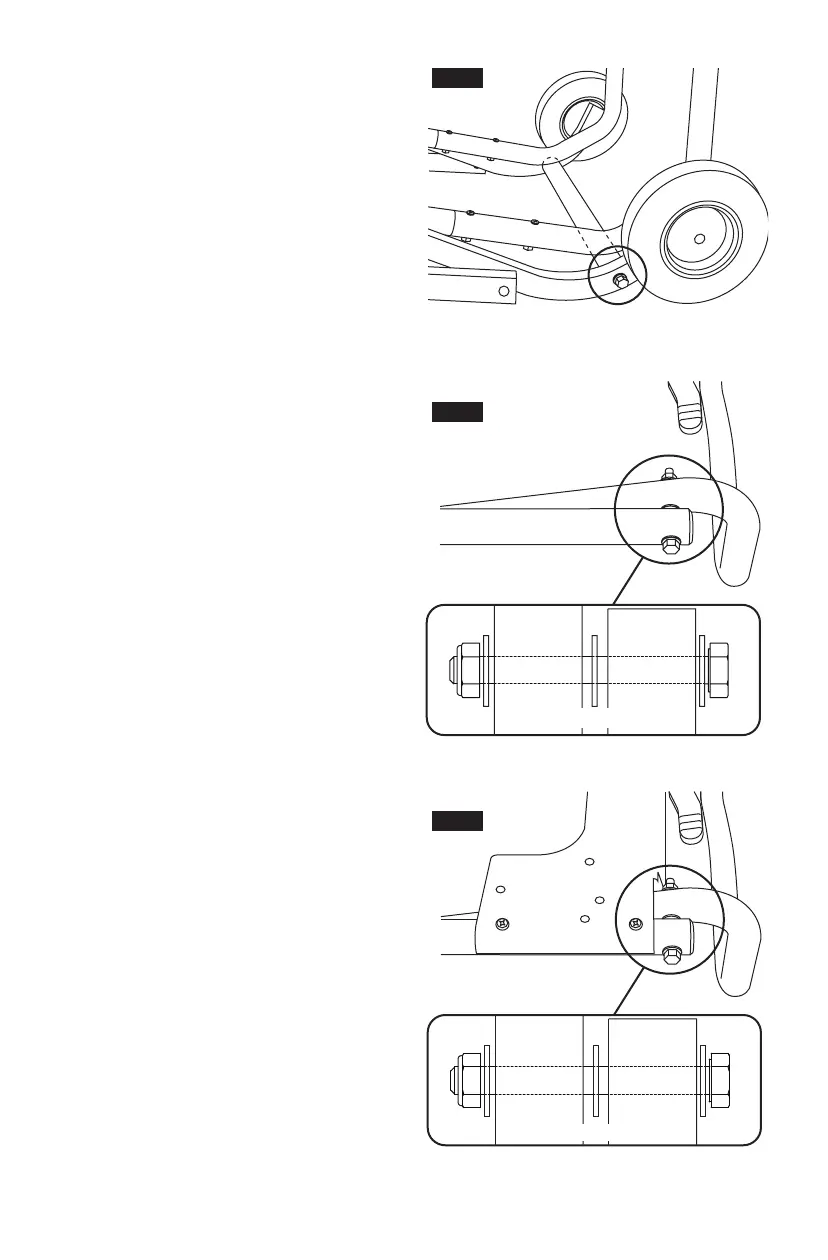

FIG. D
Lock Nut Upper
Cross Bar
Top Tube
Bar
Bolt
WasherWasherWasher
FIG. E
FIG. F
Lock Nut Upper
Cross Bar
Top Tube
Bar
Bolt
WasherWasherWasher
