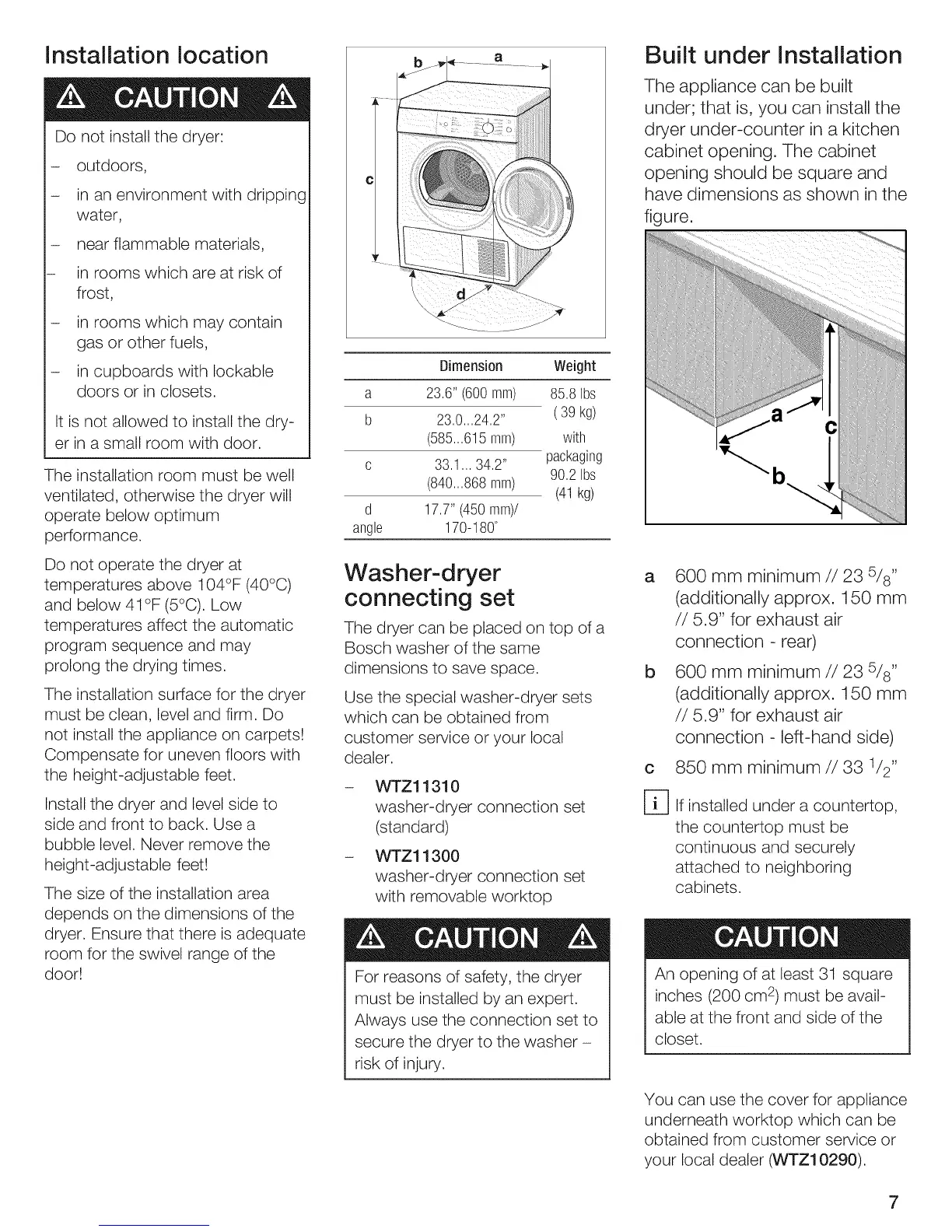

Installation location
Do not install the dryer:
- outdoors,
- in an environment with dripping
water,
- near flammable materials,
- in rooms which are at risk of
frost,
- in rooms which may contain
gas or other fuels,
- in cupboards with Iockable
doors or in closets.
It is not allowed to install the dry-
er in a small room with door.
The installation room must be well
ventilated, otherwise the dryer will
operate below optimum
performance.
Do not operate the dryer at
temperatures above 104°F (40°C)
and below 41°F (5°C). Low
temperatures affect the automatic
program sequence and may
prolong the drying times.
The installation sur[ace for the dryer
must be clean, level and firm. Do
not install the appliance on carpets!
Compensate for uneven floors with
the height-adjustable feet.
Install the dryer and level side to
side and front to back. Use a
bubble level. Never remove the
height-adjustable feet!
The size of the installation area
depends on the dimensions of the
dryer. Ensure that there is adequate
room for the swivel range of the
door!
Dimension Weight
a 23,6"(600 mm) 85,8Ibs
b 23,0,,,24,2" ( 39 kg)
585,,,615mm) with
c 33,1,,, 34,2" packaging
90,2 Ibs
840,,,868mm)
(41 kg)
d 17,7" (450mm)/
angle 170-180°
Washer-dryer
connecting set
The dryer can be placed on top of a
Bosch washer of the same
dimensions to save space.
Use the special washer-dryer sets
which can be obtained from
customer service or your local
dealer.
- WTZ11310
washer-dryer connection set
(standard)
- WTZ11300
washer-dryer connection set
with removable worktop
For reasons of safety, the dryer
must be installed by an expert.
Always use the connection set to
secure the dryer to the washer -
risk of injury.
Built under Installation
The appliance can be built
under; that is, you can install the
dryer under-counter in a kitchen
cabinet opening. The cabinet
opening should be square and
have dimensions as shown in the
figure.
.....
a 600 mm minimum//23 5/8"
(additionally approx. 150 mm
//5.9" for exhaust air
connection - rear)
b 600 mm minimum//23 5/8"
(additionally approx. 150 mm
//5.9" for exhaust air
connection -left-hand side)
850 mm minimum//38 1/2"
If installed under a countertop,
the countertop must be
continuous and securely
attached to neighboring
cabinets.
An opening of at least 31 square
inches (200 cm 2) must be avail-
able at the front and side of the
closet.
You can use the cover for appliance
underneath worktop which can be
obtained from customer service or
your local dealer (WTZ10290).
7
