Examples of Installations
Greenstar – 6721822579 (2021/01)
28

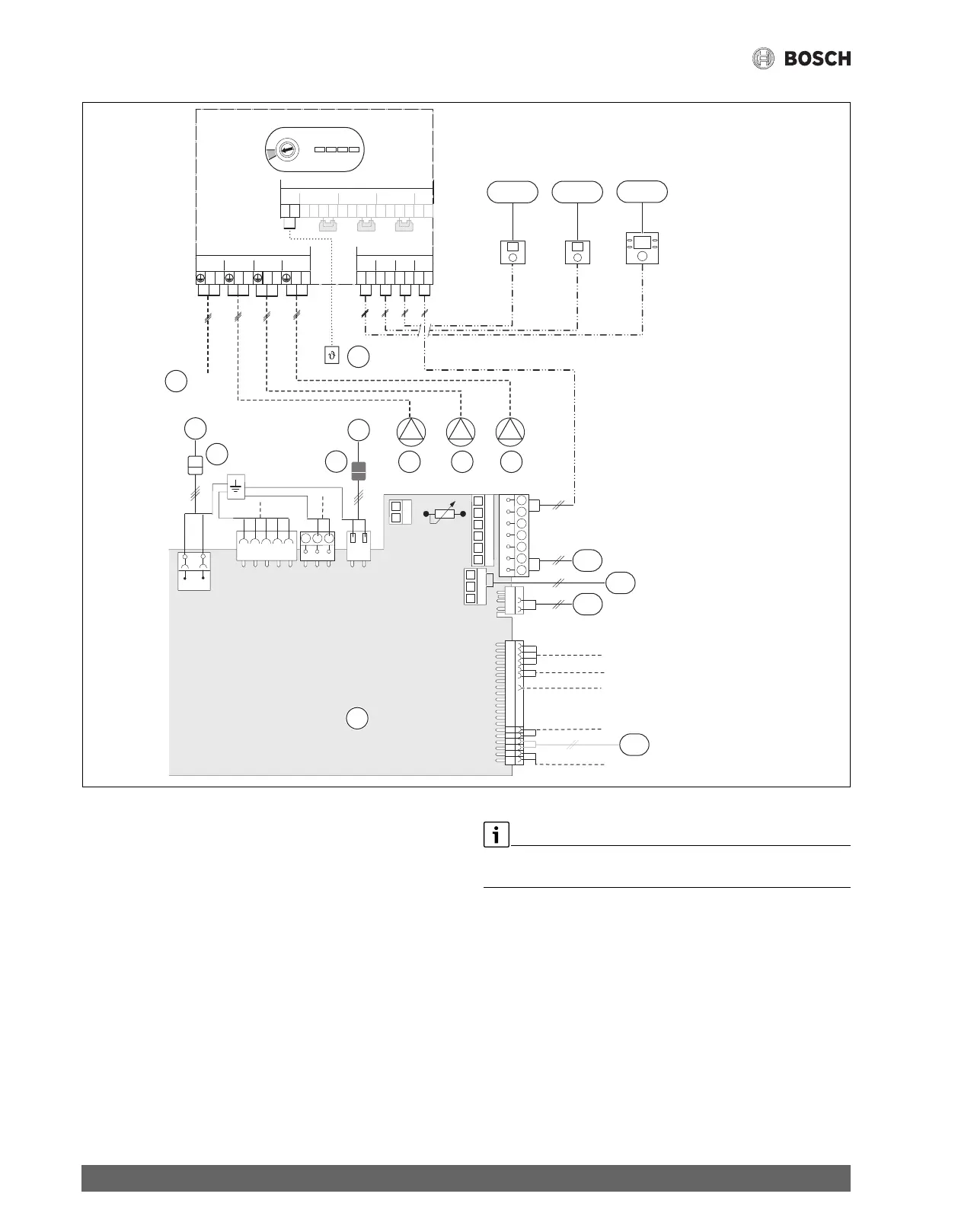

Fig. 12 Wiring
[1] PCB in heating boiler ZBR...-3A
[2] White plug for mains power supply, 120 V AC, 60 Hz
( chapter 7.3.4, page 48)
[3] 120 V AC, 60 Hz
[4] Red plug (for external DHW tank, chapter 7.3.3, page 48)
[5] DHW pump
[6] External system supply temperature sensor
[7] Pump heating zone 1
[8] Pump heating zone 2
[9] Pump heating zone 3
[10] Outdoor temperature sensor (optional)
[11] LWCO (Low Water Cut Off, 24V AC Transformer required)
[12] DHW temperature sensor (connection with clear connector)
[13] Optionally connect external system supply temperature sensor
for system supply pipe here (with white plug)
For all accessories not included in the package please refer to the Bosch
Product Catalog.
