4 • English DesignMax DM2S • Installation Guide
PRO.BOSE.COM
Setup

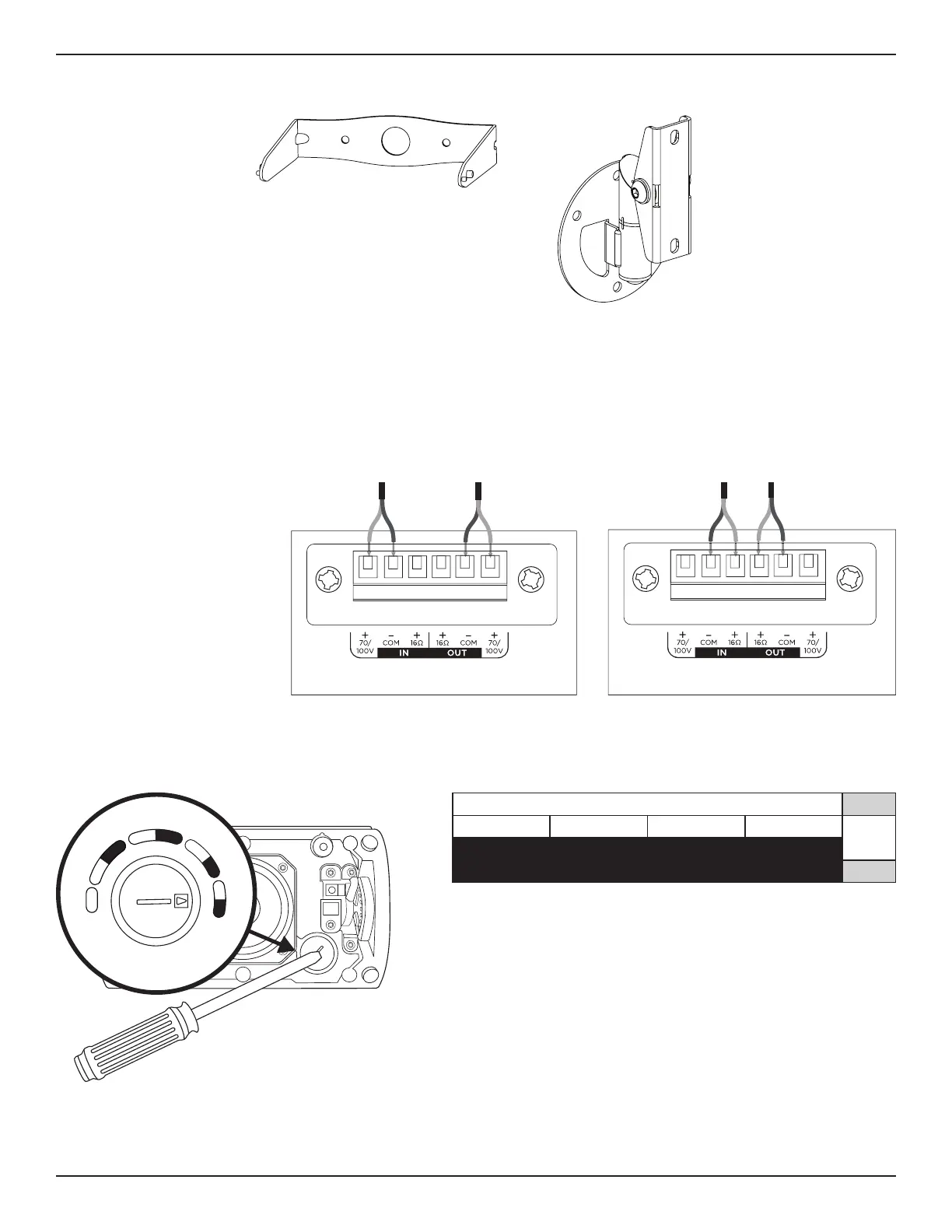

Installation Options
Installation Options and Accessories
q Mounting bracket (included)
w DMSBRKT Pan-and-tilt bracket (optional)
q w
Wiring the Loudspeaker
Wire Gauge
The DesignMax DM2S loudspeaker is designed to work with 18 AWG (0.8 mm
2
) to 14 AWG (2.1 mm
2
) size wire only.
Connection Diagrams
Expose six millimeters (¼ inch) of bare wire to attach to the terminals.
70V/100V 16Ω
Note: The loudspeaker is not
rated for use with a rigid conduit.
The loudspeaker is suitable
for a flexible conduit or wiring
connection only.
Loudspeaker Settings
70V
1.2W 2.3W 4.5W 9W*
16Ω
2..3W 4.5W 9W NC**
100V
** NC: No Connection (do not use)* Factory default
16Ω
1
.
2
W
2
.
3
W
2
.
3
W
4
.
5
W
4
.
5
W
9
W
9
W
N
C
Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.
