6 • English DesignMax DM2S • Installation Guide
PRO.BOSE.COM
Installation
qq ww
ee

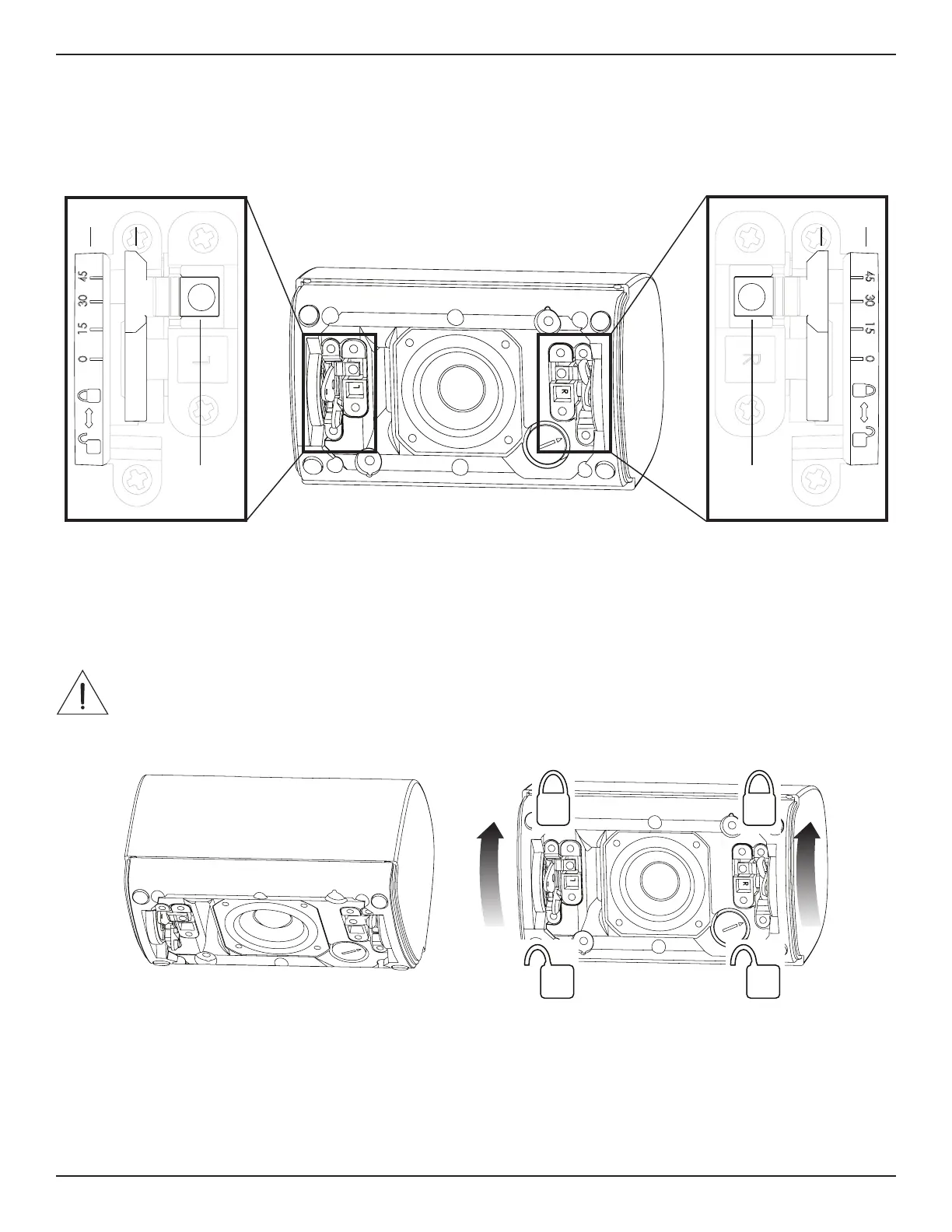

Important Mounting Information
q Lock levers: Used to secure the loudspeaker to the mounting bracket. Push the levers toward the lock pins to lock; push the levers
away from the lock pins to unlock.
w Angle labels: Identify your desired angle position and the locking direction.
e Lock pins: Press the pins down to unlock the levers.
Installing the Loudspeaker
Note: The loudspeaker is shipped with the lock levers taped down. Remove the tape before installation.
1. Attach the loudspeaker to the bracket, adjust the loudspeaker to 45°, and lock the levers into place.
2. Attach the wired connector to the loudspeaker.
3. Unlock the levers and adjust the loudspeaker to your desired angle.
Note: The angle of the loudspeaker can be adjusted to 0°, 15°, 30°, or 45°.
4. Lock the levers into place.
WARNING: Failing to push the levers into the lock position as instructed can create a falling hazard, which can result in property
damage, serious injury, or death. It is the installer's responsibility to ensure the mounting system is installed according to the
instruction.
q e

Bose DesignMax DM2S Specifications

General

Brand	Bose
Model	DesignMax DM2S
Category	Speakers
Language	English
