4 • English DesignMax DM3C • Installation Guide
PRO.BOSE.COM
Setup
Installation Options

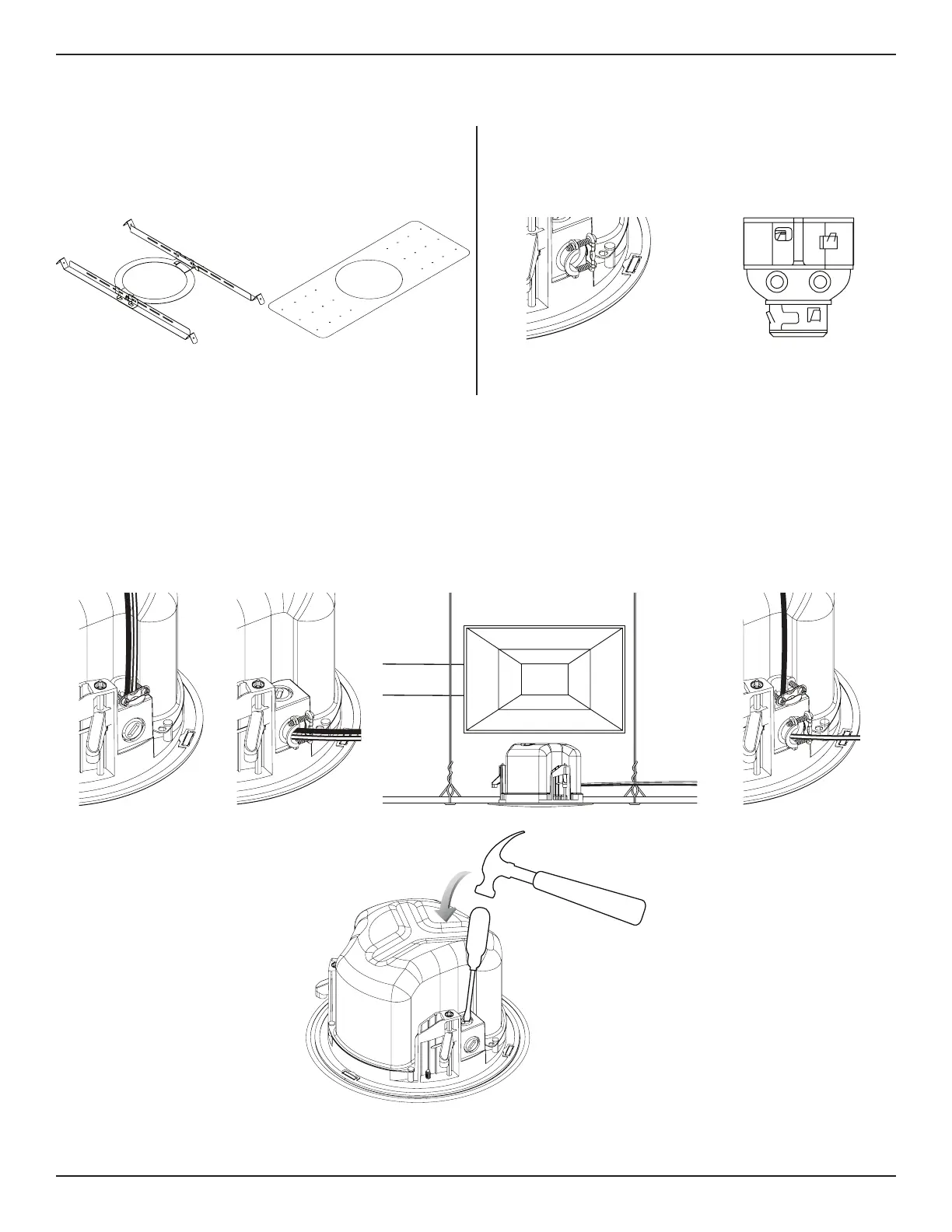

Installation Options and Accessories
q Adjustable Tile Bridge (included)
w Rough-in Pan (optional)
Conduit Fitting
If using a flexible metal conduit, use with a ⅜-inch conduit
fitting or a ⅜-inch dual (duplex) connector.
Note: Conduit fittings are not provided.
q
w
⅜-inch single in ⅜-inch duplex in/loop
Choosing an Installation Method
q Top Knockout
Use the top knockout when there is available space above the ceiling.
w Side Knockout
Use the side knockout when there is limited space above the ceiling.
e Both Knockouts
Use both knockouts when an independent signal-in and signal-out wiring scheme is required and there is available space
above the ceiling.
q w e
