Design Guide - 13
Design Worksheet, EdgeMax EM180 & Mixed EM90/EM180 Systems
Step 5: Select the type of layout that will be used for your room’s shape. Proceed to the
design step noted.
Step 6 (Square): Place the EdgeMax loudspeakers in corners or centered along walls. Proceed
to step 8 when complete.
Step 7 (Rectangle): Determine the Loudspeaker Spacing Distance for the mounting height
and desired coverage quality.
Square Shaped
Room / Coverage Area
Rectangular Shaped
Room / Coverage Area
petS ot deecorP petS ot deecorP
67

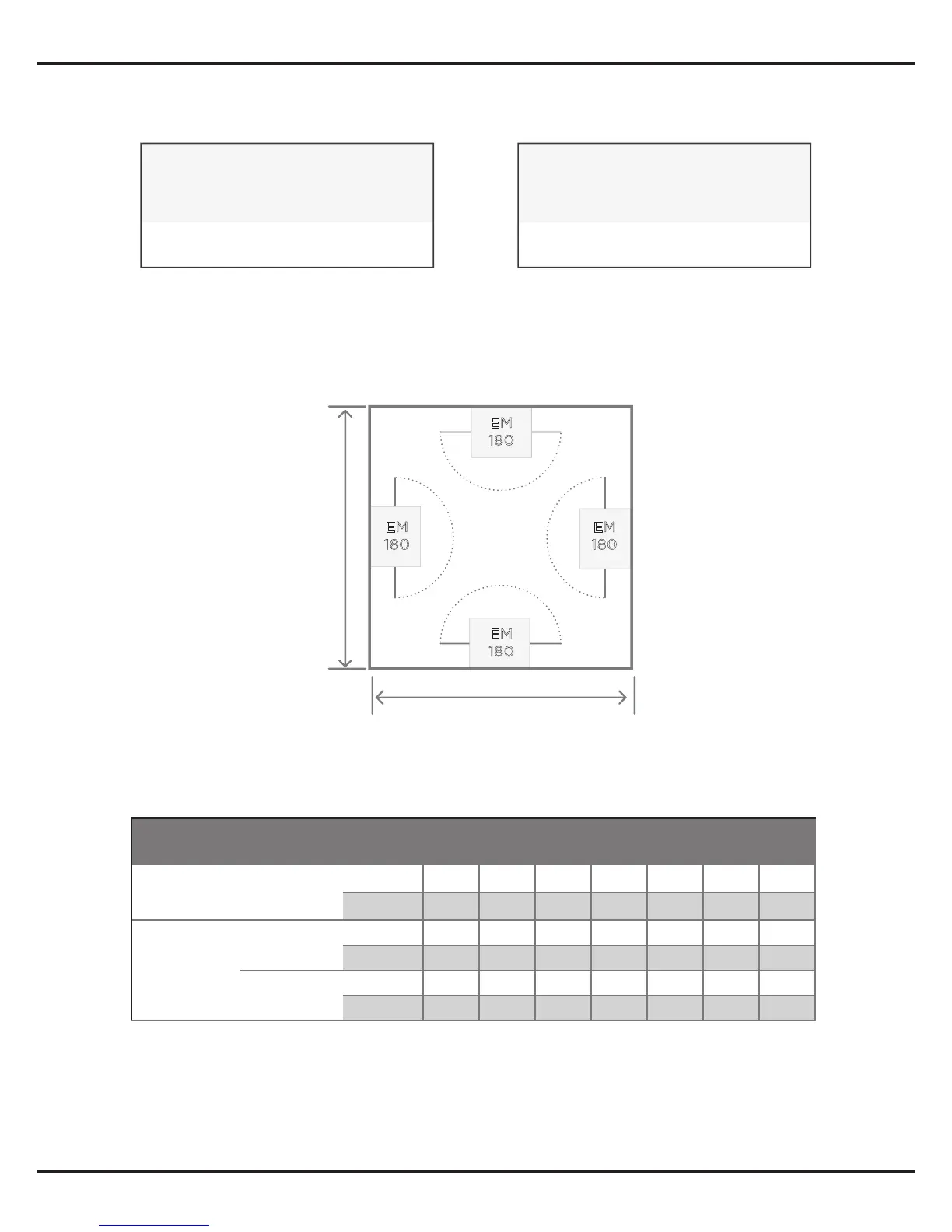

EM180 Square Room
2x Usable Throw Distance
2x Usable Throw Distance
EM
180
EM
180
EM
180
EM
180
Loudspeaker Spacing Distance, EdgeMax EM180
Mounting Height
m 2.7 3.0 3.7 4.3 4.9 5.5 6.1
ft 9 10 12 14 16 18 20
Coverage
Quality
Premium
m 3 4 6 8 9 11 13
ft 11 15 20 25 30 35 40
Standard
m 7 9 12 12 12 12 12
ft 20 30 40 40 40 40 40

Bose EdgeMax EM90 Specifications

General

Product color	White
Recommended usage	-
Woofer	Yes
Number of drivers	1
Speaker placement	In-wall/in-ceiling
Audio output channels	- channels
Woofer diameter (imperial)	8 \
Impedance	8 Ω
Sensitivity	96 dB
Frequency range	45 - 20000 Hz
RMS rated power	125 W
Peak Music Power Output (PMPO)	500 W
Connectivity technology	Wired
Speaker width	339 mm
Speaker height	249 mm

Weight and Dimensions

Width	390 mm
Height	13 mm
Weight	10100 g
