Design Guide - 14
Design Worksheet, EdgeMax EM180 & Mixed EM90/EM180 Systems
Loudspeaker Spacing Distance
0.5 x
Loudspeaker
Spacing

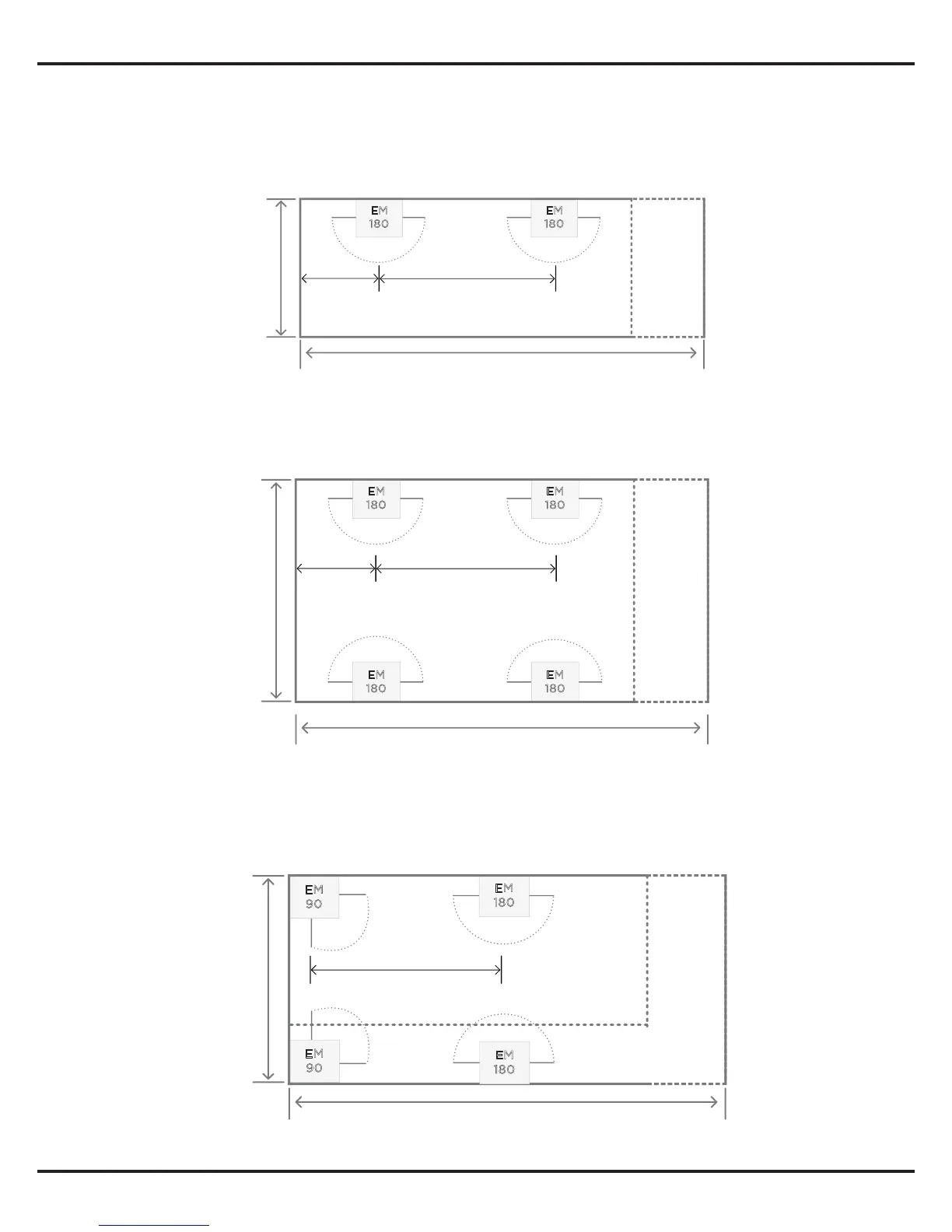

EM180 Single Edge Mounting
Variable Room Dimension
Usable Throw
Distance
EM
180
EM
180
Create a layout using one of the three layout options below.
Single Edge Mounting – place the EdgeMax loudspeakers along a side wall using the
spacing distance for the mounting height that will be used.
Proceed to step 6.
Perimeter Mounting – place the EdgeMax loudspeakers along side walls using the spacing
distance for the mounting height that will be used.
Mixed (Recommended) – place the EdgeMax loudspeakers along side walls using the
spacing distance for the mounting height that will be used. Follow the guidelines for
Single Edge and Perimeter mountings.
EM
180
EM
180
Loudspeaker Spacing Distance
0.5 x
Loudspeaker
Spacing
EM180 Perimeter Mounting
Variable Room Dimension
2x Usable Throw Distance
EM
180
EM
180
EM90 & EM180 Mixed Mounting
Variable Room Dimension
Up to 2x Usable Throw
Distance
EM
180
EM
90
Loudspeaker Spacing Distance
EM
180
EM
90

Bose EdgeMax EM90 Specifications

General

Product color	White
Recommended usage	-
Woofer	Yes
Number of drivers	1
Speaker placement	In-wall/in-ceiling
Audio output channels	- channels
Woofer diameter (imperial)	8 \
Impedance	8 Ω
Sensitivity	96 dB
Frequency range	45 - 20000 Hz
RMS rated power	125 W
Peak Music Power Output (PMPO)	500 W
Connectivity technology	Wired
Speaker width	339 mm
Speaker height	249 mm

Weight and Dimensions

Width	390 mm
Height	13 mm
Weight	10100 g
