SETUP
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
For the receiver
1. Connect one end of the second Bose
®
link A cable to the jack labeled Bose
®
link 
OUTPUT on the receiver.
2. Connect the other end of the cable to the Bose link Input jack on the expansion room
system, amplifier, or powered speaker (Figure 5).

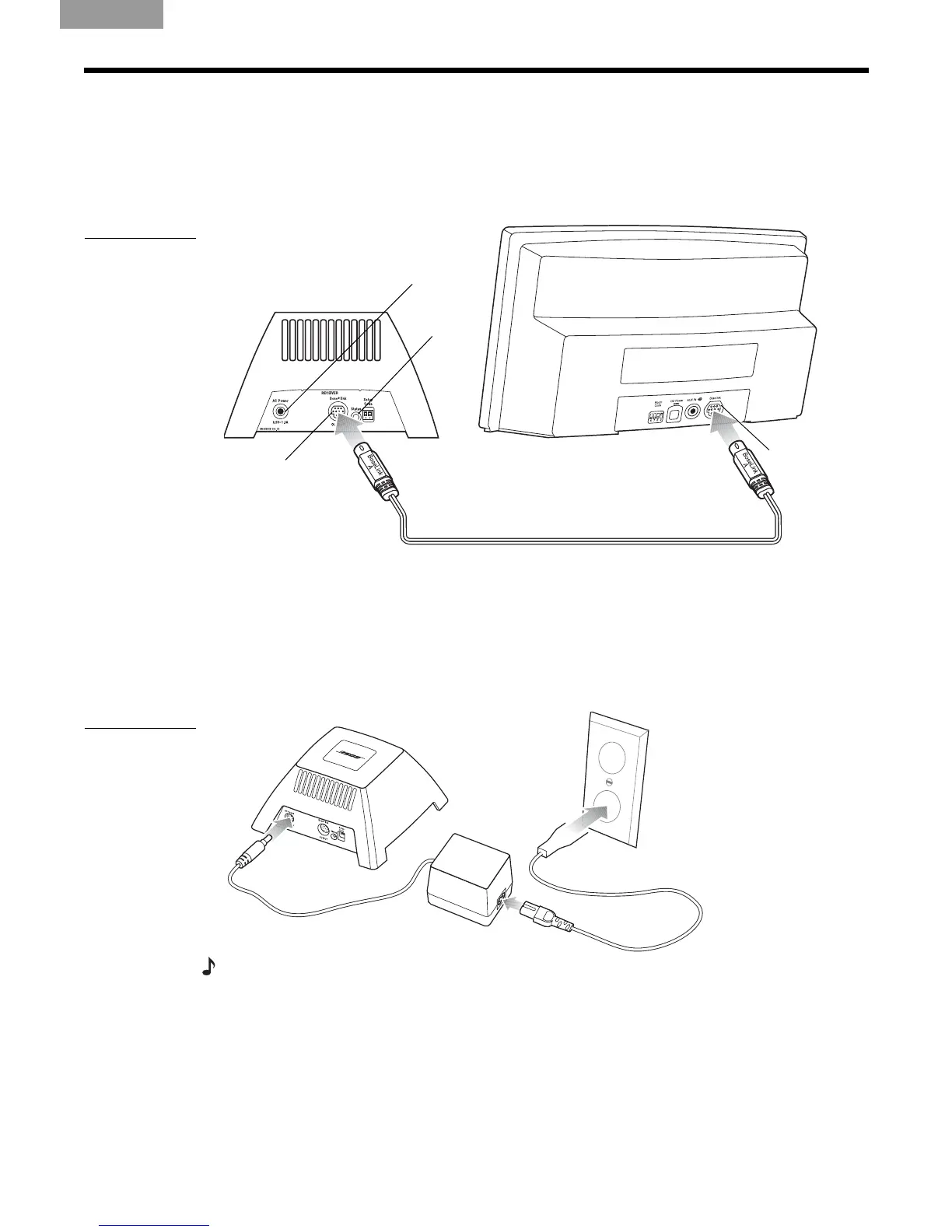

Figure 5
Connection to a
Bose link amplifier,
as an example
Bose link
Input jack
Receiver
AC Power
LIFESTYLE
®
RoomMate
®
speaker
Status
LED
Bose
®
link
OUTPUT
Bose link A
cable
Connecting to power
1. Insert the small plug on the power pack cable into the AC Power jack on the transmitter
or receiver (Figure 6).
2. Insert the small connector end of the power cord into the jack on power pack. Plug the
other end of the cord into an AC (mains) wall outlet. The Status LED lights to verify this
power connection.
Figure 6
Connecting the
power pack and
cord
Power cable
Receiver
Power cord
Power pack
AC (mains)
power outlet
Note: For information on the meaning of the different Status LED lights, refer to “Check the
indicators and settings” on page 9
.
