Bose L1 1S User Manual

19

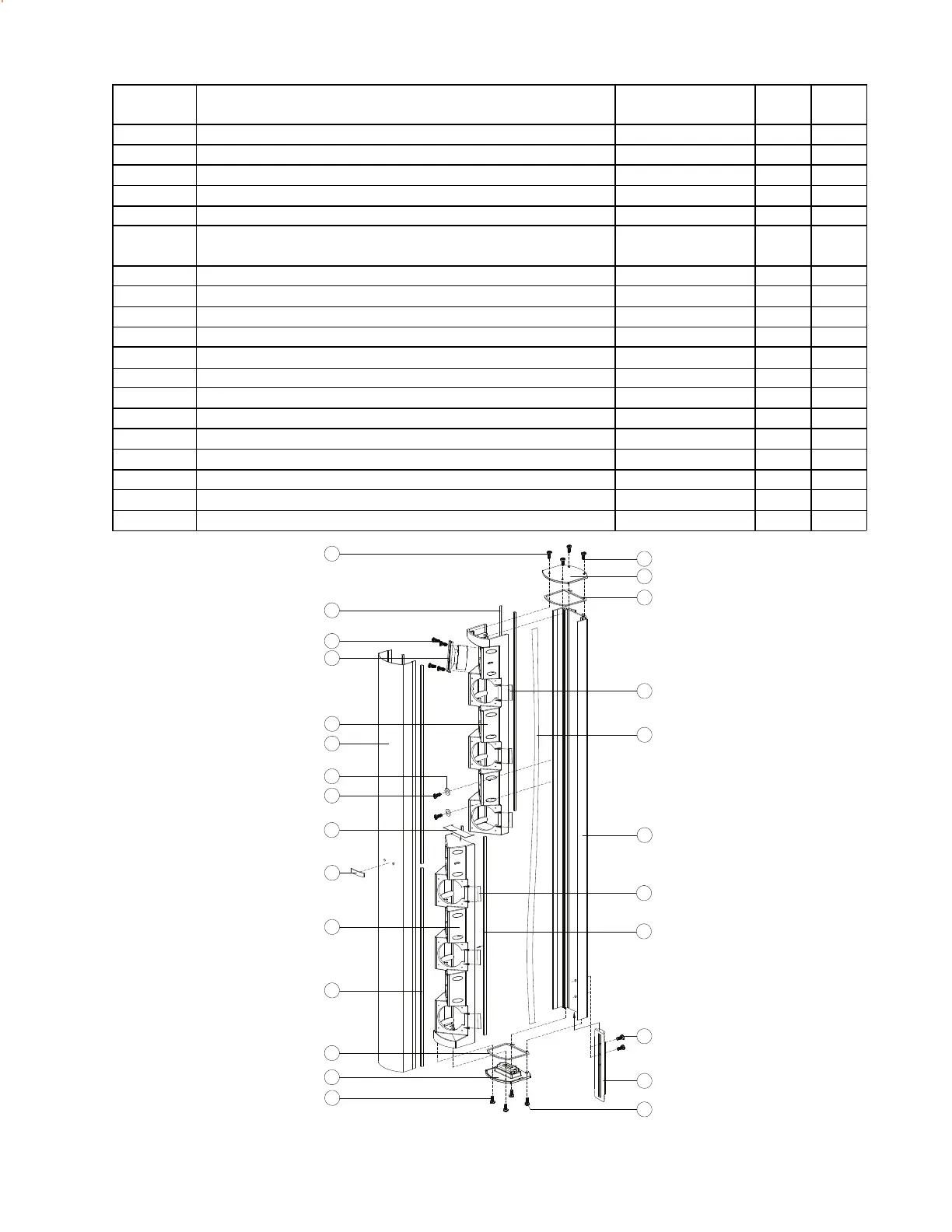

Main Part List
L1
®
Model 1S Upper Line Array (see Figure 8)
Item
Number
Description Part Number Qty. Note
1 MS SCREW, M3x12, CSH, BLK - 4 4
2 EVA GASKET, BAFFLE - 4 4
3 ME SCREW, M3.5x8, 6.7mm - 48 4
4 DRIVER, 2.75 INCH, 6 OHM 303836 12
5 BAFFLE, DRIVER - 2 4
6 GRILL E ASSY, UPPPER
(INCLUDES GRILLE, LOGO AND GASKETS)
304988 1
7 SCREW, TTP/B, M4x9.5mm, BLK - 24 4
8 RUBBER PAD, D8x1.5mm - 24 4
9 FOAM, TOP BAFFLE - 1 4
10 BOSE LOGO 303709 1
11 GASKET, END CAP #1, 83x82x1.5mm - 2 4
12 COVER, END CAP #2 - 1 4
13 SCREW, B-TITE, FLAT-CS, M3x10mm - 4 4
14 COVER, END CAP #1 - 1 4
15 WIRING HARNESS, UPPER ARRAY ASSY - 1 4
16 HOUSING, UPPER ARRAY, EXTRUDED - 1 4
17 SCREW, MACHINE, OVAL-CS, M6x20 - 2 4
18 BAYONET, LINE SOURCE 264001 1
19 GASKET, GRILLE - 4 4
Figure 8. L1 Model 1S Upper Line Array Exploded View
1
2
3
4
5
6
7
8
9
10
13
14
11
11
15
16
11
2
17
18
13
1
12
11
19
5
