20

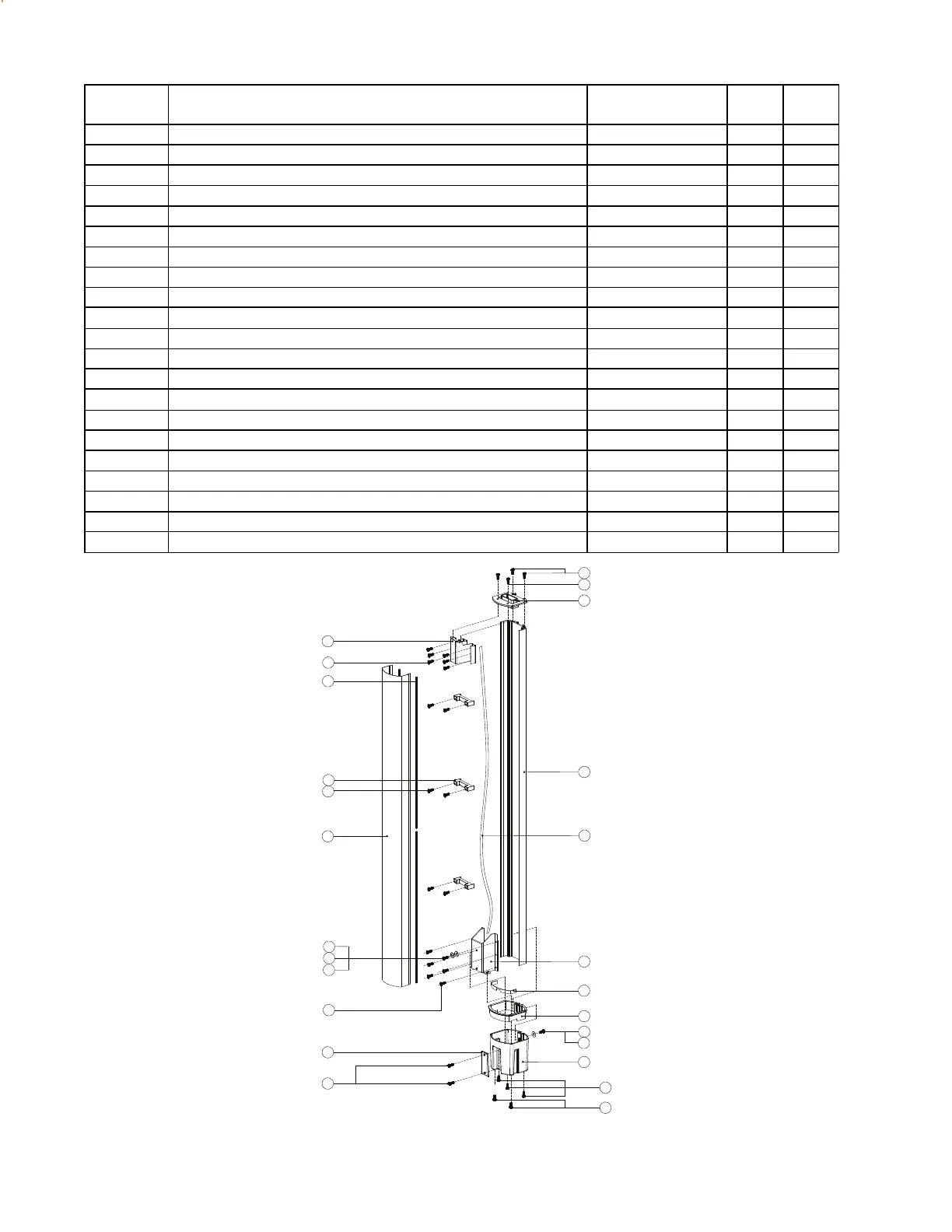

Figure 9. L1 Model 1S Lower Line Array Extension Exploded View
Main Part List
L1
®
Model 1S Lower Line Array Extension (see Figure 9)
Item
Number
Description Part Number Qty. Note
1 SCREW, B-TITE, FLAT-CS, M3x10 - 5 4
2 MS SCREW, M3x12, CSH, BLK - 6 4
3 COVER, END CAP #3 - 1 4
4 HOUSING, EXTENSION, EXTRUDED - 1 4
5 WIRING HARNESS, EXTENSION - 1 4
6 BRACKET, END CAP #4 298029 1
7 GASKET, LOWER COLLAR - 1 4
8 FRAME, LOWER COLLAR - 1 4
9 WASHER, METAL, M4x0.8x10, BZ - 1 4
10 MA SCREW, 4x15, 6.8mm, BK/C HD - 1 4
11 COVER, END CAP #4 - 1 4
12 SHIM, CAVITY - 1 4
13 SCREW, B-TITE, M3.5x10, BLK zn - 11 4
14 WASHER, EXTERNAL TOOTH, M4x0.8x8.5 - 1 4
15 WASHER, SPRING, M4x1x7, YZ - 1 4
16 ME SCREW, M4x8, TTP/B, YW, ZN - 1 4
17 FRONT COVER, EXTENSION 354559-0110 1
18 SCREW, B-TITE, M3.5x16, BLK ZN - 6 4
19 SUPPORT, EXTENSION FRONT COVER - 3 4
20 GASKET, GRILLE - 4 4
21 BRACKET, UP - 1 4
21
13
20
3x 19
6x 18
17
16
15
14
11x 13
12
2
2
1
11
10
9
8
7
6
5
4
3
2 x6
1 x5
