Bose L1 1S User Manual

23

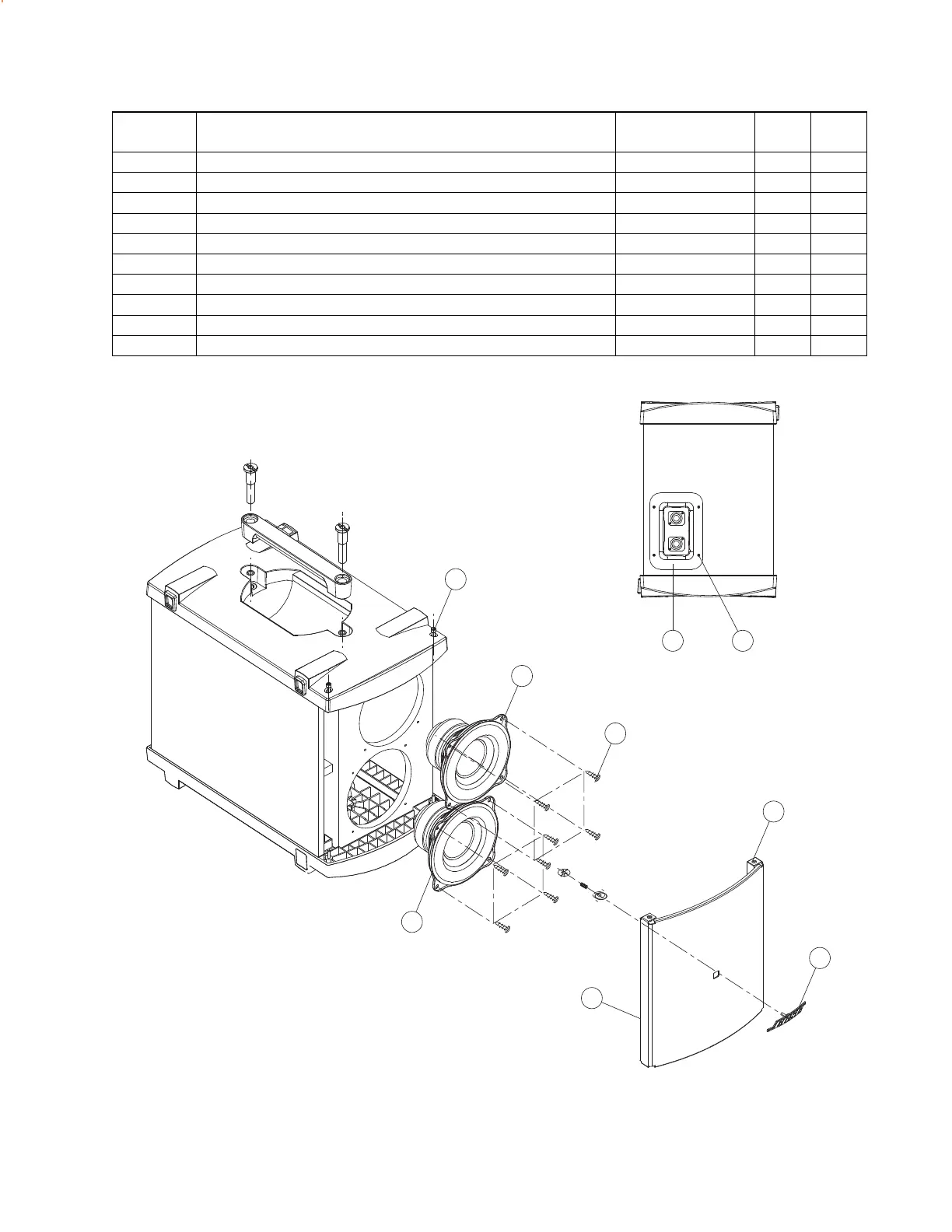

Figure 11. B1 Bass Module Exploded View
1
2
4x
4x
2x
2x
4
8x
8x
3
2x
2x
5
7
6
2x
2x
8
9
Main Part List
B1 Bass Module Exploded View (see Figure 11)
Item
Number
Description Part Number Qty Note
1 Screw, M4 X 28, BK, B1 Grille 275465 4
2 Woofer Assembly 263998 2
3 Gasket, Woofer Assembly 263998 2 4
4 Screw, M4 X 17, BK, B1 Driver 275466 8
5 Grille Assembly (includes items 6 and 7 below) 263992 1
6 Gasket, Grille Assembly - 2 4
7 Logo, Assembly, B1/B2 739717-011S 1
8 B1 Terminal Panel Assembly 276409 1
9 Screw, M3 X 12, BK, B1 Input Cup 275467 4
- Speaker Cable, Bass Module, P-Free, 1M 354990-0010 1
