Bose L1 1S User Manual

24

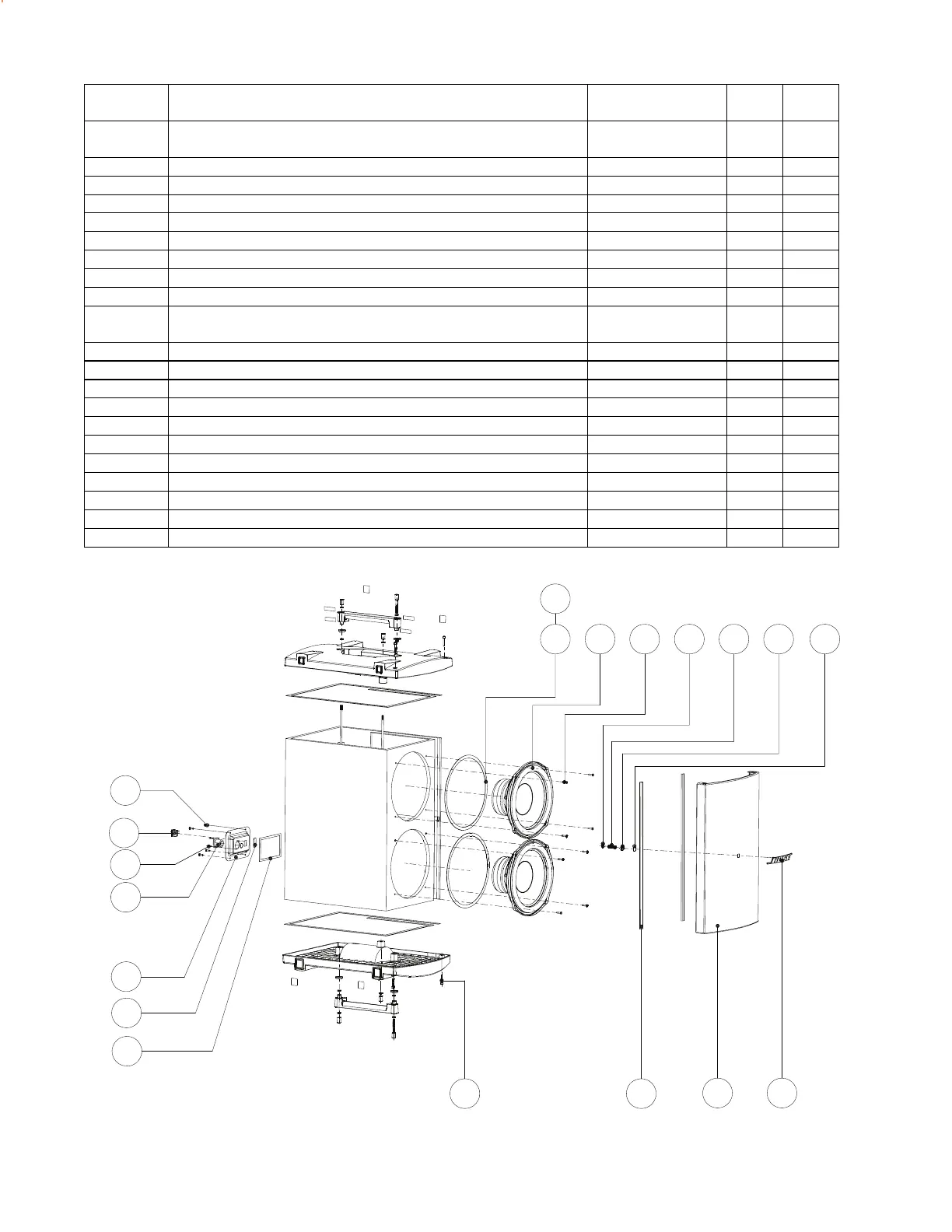

Figure 12. B2 Bass Module Exploded View
Main Part List
B2 Bass Module Exploded View (see Figure 12)
4x 1
2
2x 3
4
5
6
7
2x 9
10
11
2x 18
2x 19
2x
17
8x
16
15
14
13
12
4x 8
Item
Number
Description Part Numbe
r
Qty Note
- PANEL ASSY,B2,TERMINAL,SVC
(INCLUDES ITEMS 1 TO 6 BELOW)
355074-011S 1
1 ME SCREW, M4x17, BK-ZN 275466 4
2 SWITCH, ROCKER, SPDT 355932-0010 1 4
3 MS SCREW, M3x12, CSH, BLK 275467 2
4 SPEAKON NEUTRIK CONNECTOR, 4 WIRE 318841-0000 1 4
5 TERMINAL PANEL, SECC, T=1.2, BLK 354566-0110 1 4
6 PCB ASSY EQ SWITCH 354572-0010 1 4
7 GASKET, EVA, 5x500mm - 1 4
8 SCREW, GRILLE, M4x28, BLACK 275465 1
- GRILLE ASSEMBLY
(INCLUDES ITEMS 9 TO 15 BELOW)
355660-011S
9 FOAM STRIP, 5x5x1200mm - 1 4
10 GRILLE – NO LOGO - 1 4
11 LOGO ASSEMBLY, B1/B2 739717-011S 1
12 GASKET, 18x5x0.5, NON-WOVEN - 1 4
13 CUP WASHER - 1
14 SPRING, D=8 x ID=6.5x L=31.5 - 1
15 SPIRE CLIP - 1
16 SCREW, MACHINE, BIND, M4x30 - 8 4
17 WOOFER ASSEMBLY, 10 INCH 355172-001S 2
18 GASKET, PE, 1000x18x1 - 2 4
19 GASKET, 1000x10x2mm, EVA - B - 2 4
