51
Disassembly Procedures
6. Fan Removal
6.1 Perform steps 5.1 and 5.2 above.
6.2 Remove the two screws that secure the
fan. Lift out the fan.
6.3 Unplug the wire harness from CN101 or
CN102 located on the DSP PCB.
Line Array Procedures

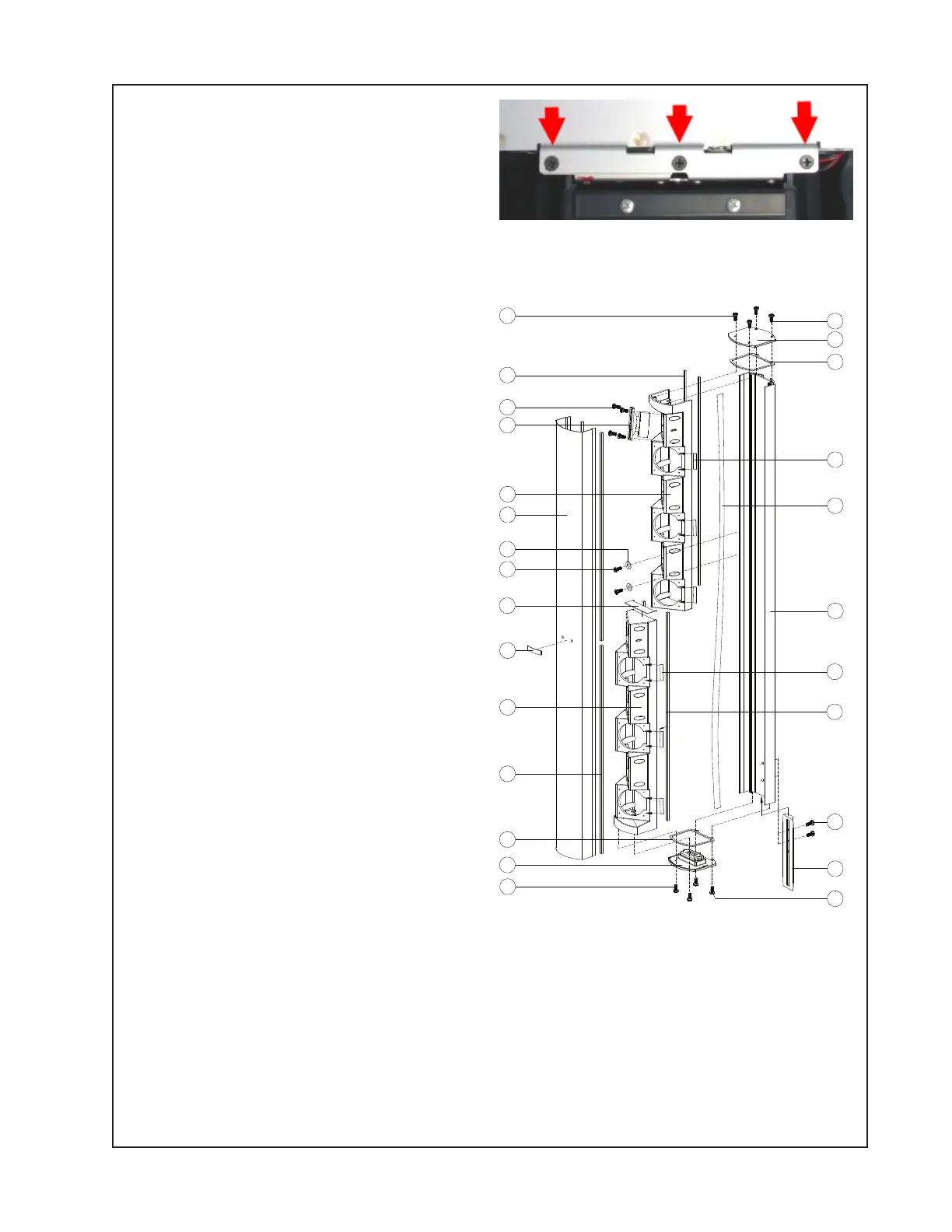

Refer to the figure at right for the following
procedures.
1. Upper Line Array Grille Removal
1.1 Remove the four screws (1,13) that
secure the end cap # 1 assembly (top end
cap) to the line array enclosure. Lift off the
end cap.
Re-assembly Note: There are two different
types of screws used to secure the end caps
to the line arrays. Be sure to use the correct
screw type in the proper location during re-
assembly.
1.2 Remove the four screws (1,13) that
secure the end cap # 2 (bottom end cap)
assembly to the line array enclosure (16). Lift
off the end cap. Do not unplug the molex
connector from the speaker harness.
1.3 Grasp the edge of the grille (6) and
gently lift it away from the enclosure.
2. Bose
®
Logo Removal
2.1 Perform procedure 1.
2.2 On the back of the grille (6), unbend the
legs of the logo (10). Lift off the Bose logo.
1
2
3
4
5
6
7
8
9
10
13
14
11
11
15
16
11
2
17
18
13
1
12
11
19
5
To Next Page
