Bose L1 1S User Manual

54
Disassembly Procedures
B1 Bass Module Procedures (continued)
4. Input Panel Removal
4.1 Perform procedure 3, removing the top woofer (2) only. It should have a red wire and a
black wire connected to it. Unplug the wires from the woofer.
Re-assembly Note: Be sure to observe polarity when installing the woofer.
4.1 Remove the four screws (9) that secure the input panel (8) to the bass module enclosure.
4.2 Lift the input panel away from the bass module enclosure and disconnect the wiring
harness.
B2 Bass Module Procedures

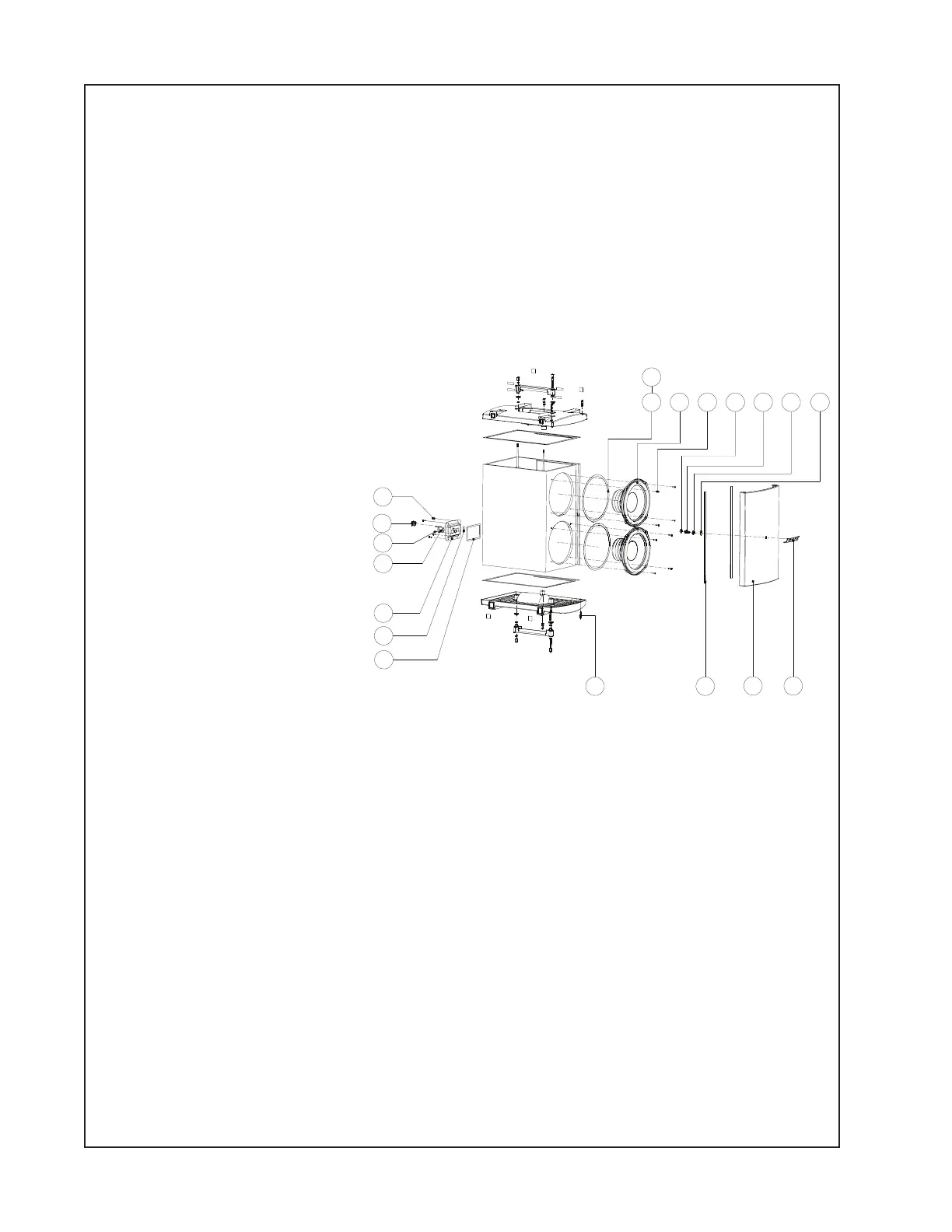

Refer to the figure at right for
the following procedures.
1. Grille Removal
1.1 Remove the four allen
screws (8) that secure the
grille (10) to the upper and
lower speaker end caps. Lift
off the grille.
2. Bose
®
Logo Removal
2.1 Perform procedure 1.
2.2 On the back of the grille
(10), remove the gasket, washer, spring and clip (12,13,14,15) from the post of the logo (11).
Lift the logo off of the grille.
3. Woofer Removal
3.1 Perform procedure 1.
3.2 Remove the four screws (16) that secure the woofer (17) to the bass module enclosure. Lift
the woofer out of the enclosure. Note the wiring configuration and unplug the wires from the
driver terminals. Be sure to observe polarity when installing the replacement woofer.
4. Input Panel Removal
4.1 Perform procedure 3, removing the top woofer (17) only. It should have a red wire and a
black wire connected to it. Unplug the wires from the woofer.
Re-assembly Note: Be sure to observe polarity when installing the woofer.
4.1 Remove the four screws (1) that secure the input panel assy to the bass module enclosure.
4.2 Lift the input panel assembly away from the bass module enclosure and disconnect the
wiring harness.
4x 1
2
2x 3
4
5
6
7
2x 9
10
11
2x 18
2x 19
2x
17
8x
16
15
14
13
12
4x 8
