Bose L1 1S User Manual

8

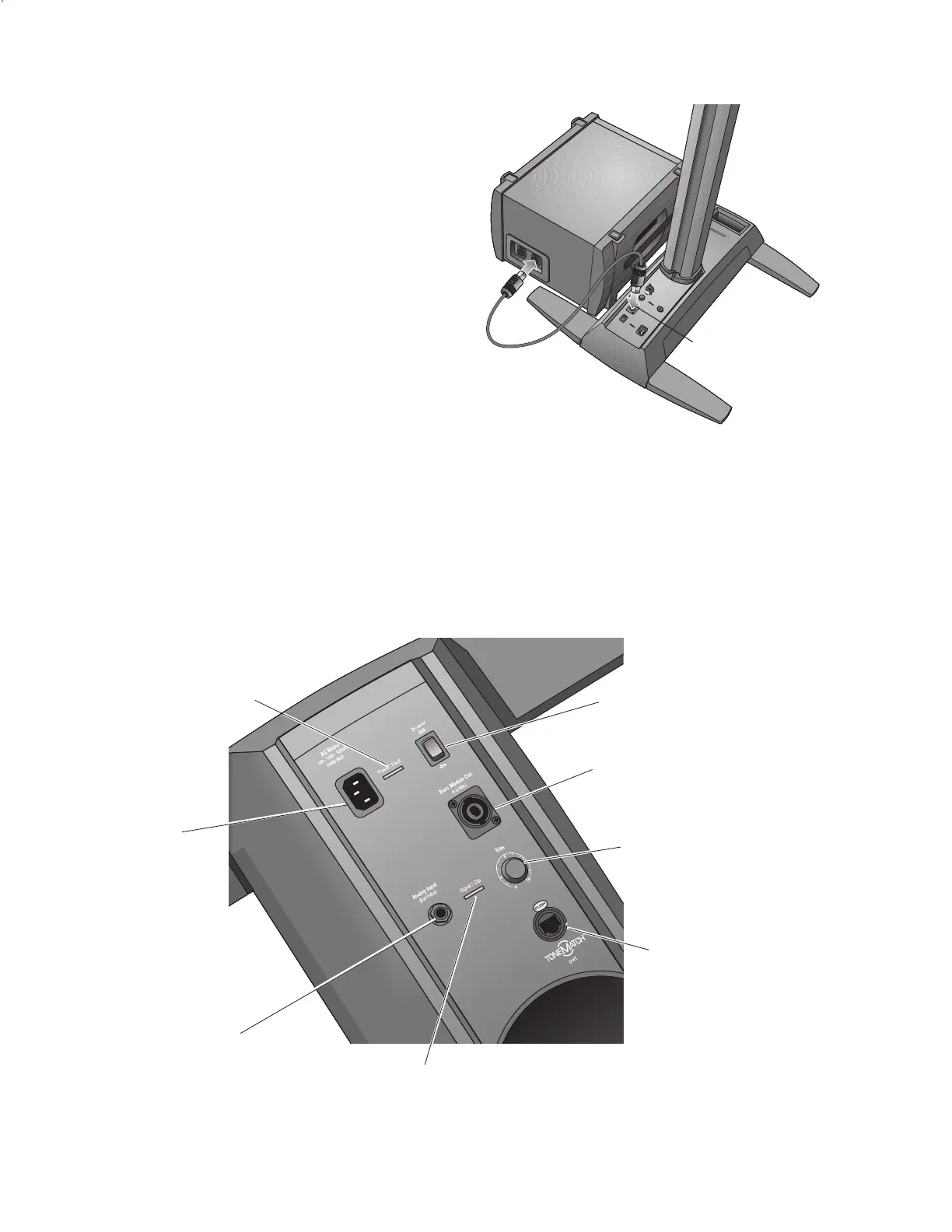

Connecting the B1 or B2 bass module
You can place the bass module either
vertically or horizontally on the floor. Normal
placement is between the legs of the power
stand.
1. Plug one end of the bass module cable
into one of the bass module connectors.
Rotate the plug clockwise to lock it in place.
You should hear a click as it locks.
2. Plug the other end of the cable into the
Bass Module Out connector on the power
stand. Rotate the plug clockwise to lock it.
To disconnect a cable, slide back the metal
tab on the body of the plug, rotate the plug
counterclockwise, and pull it out of the
connector.
Note:
• DO NOT connect a bass module to two
power stands at the same time.
• DO NOT connect any bass module other than the B1 or B2 to the power stand.
• DO NOT substitute the supplied cable with a 2-wire speaker cable. The power stand uses the
signals on two of the wires to automatically sense how many bass modules are connected.
L1
®
Model 1S Power Stand Input and Output Connectors, Controls
Power switch
Switches the system
on and off.
A
C Mains
A
C power input
connector.
Bass Module Out
Bass output signal for driving one
or two B1 bass modules. Accepts
a 4-wire bass module cable.
Tri m
Adjusts the level of the
analog input signal.
ToneMatch
®
port
Digital audio and power con-
nection for the optional T1
ToneMatch audio engine.
Accepts the included
ToneMatch cable.
Analog Input
A line-level analog input. Accepts
a ¼" TRS phone cable. Used for
an instrument or other audio
source.
Signal/Clip LED
Indicates status of the analog input signal.
Green = normal input
Yellow = input approaching clipping
Red = input clipping
Power/Fault LED
Indicates power status.
Blue = system on
Red = system fault
B1 or B2
bass
module
Bass Module
Out
