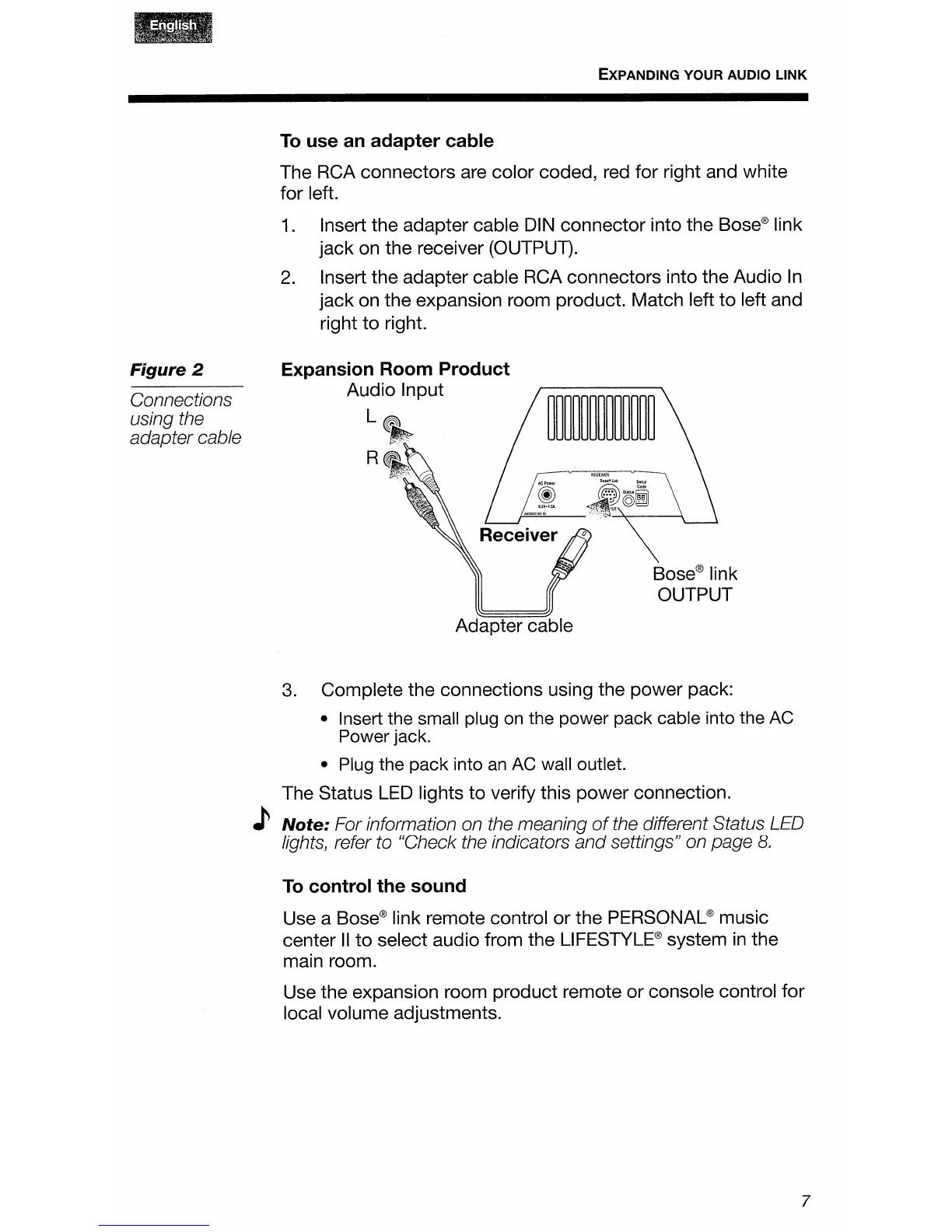

Figure
2
Connections
using the
adapter cable
EXPANDING YOUR AUDIO
LINK
To
use an
adapter
cable
The RCA connectors are color coded,
red
for right and white
for left.
1.
Insert the adapter cable
DIN
connector into the
Bose®
link
jack on the receiver (OUTPUT).
2.
Insert the adapter cable RCA connectors into the Audio
In
jack on the expansion room product. Match left to left and
right to right.
Expansion
Room
Product
Audio Input
L
R
Bose®
link
OUTPUT
3.
Complete the connections using the power pack:
• Insert the small plug on the power pack cable into the AC
Power jack.
• Plug the
pack
into
an
AC wall outlet.
The Status
LED
lights to verify this power connection.
J
Note:
For information on the meaning
of
the different Status
LEO
lights, refer to "Check the indicators
and
settings" on page
8.
To
control
the
sound
Use a
Bose®
link remote control or the
PERSONAL®
music
center
II
to select audio from the
LIFESTYLE®
system
in
the
main room.
Use the expansion room product remote or console control for
local volume adjustments.
7
