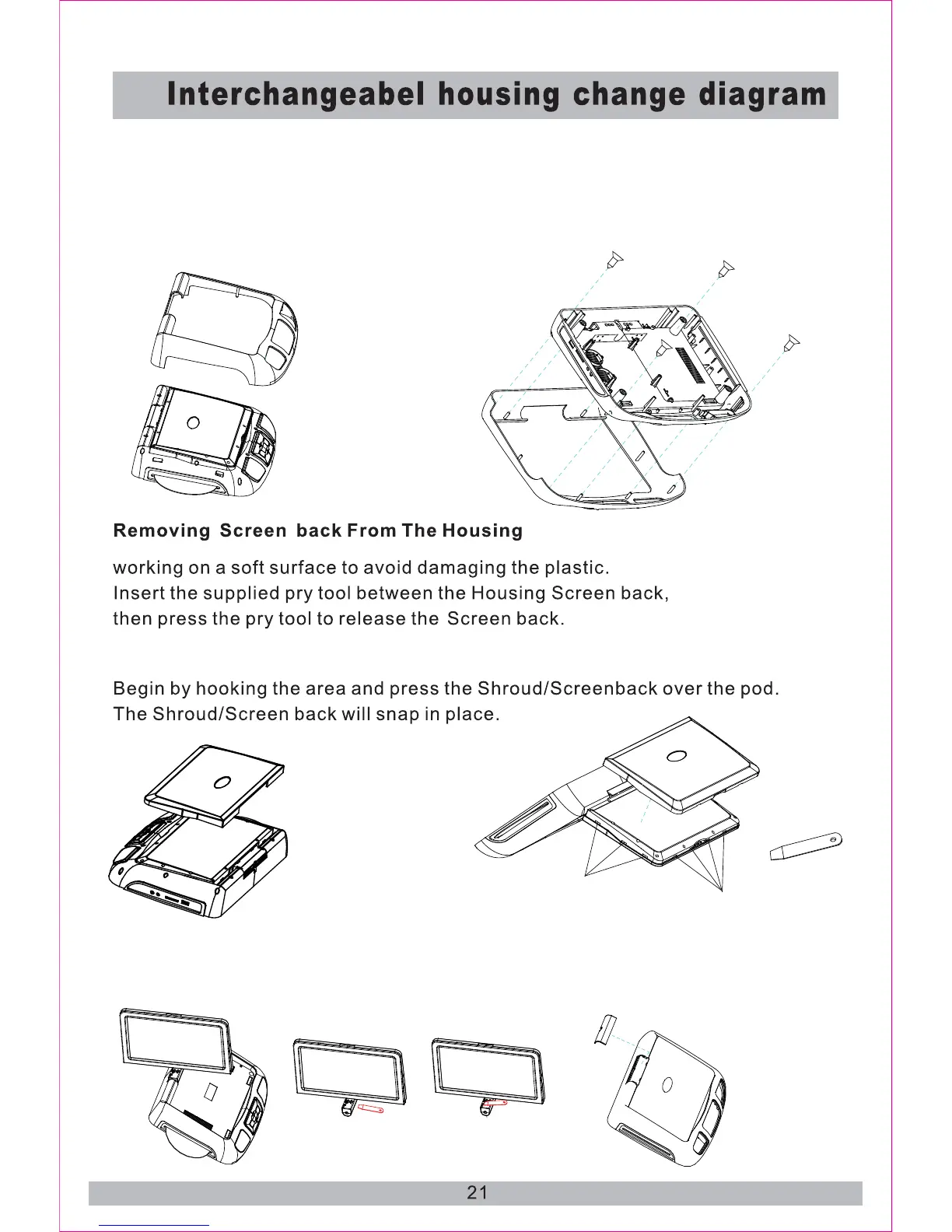

Assembling the shroud
Assembling the screen back
Swivel cover moving/assembling
Begining by hooking the area and press the shroud over the pod. The shroud will snap in
place. Tighting the shroud by screws supplied.Removing shroud
Release screws and take out the shroud as diagram
Use supplied small tool to insert the hook hole, and get the cover off.
Pressing the swviel cover over the swivel, the cover will snap in place
SNAP JOINT
SNAP JOINT
