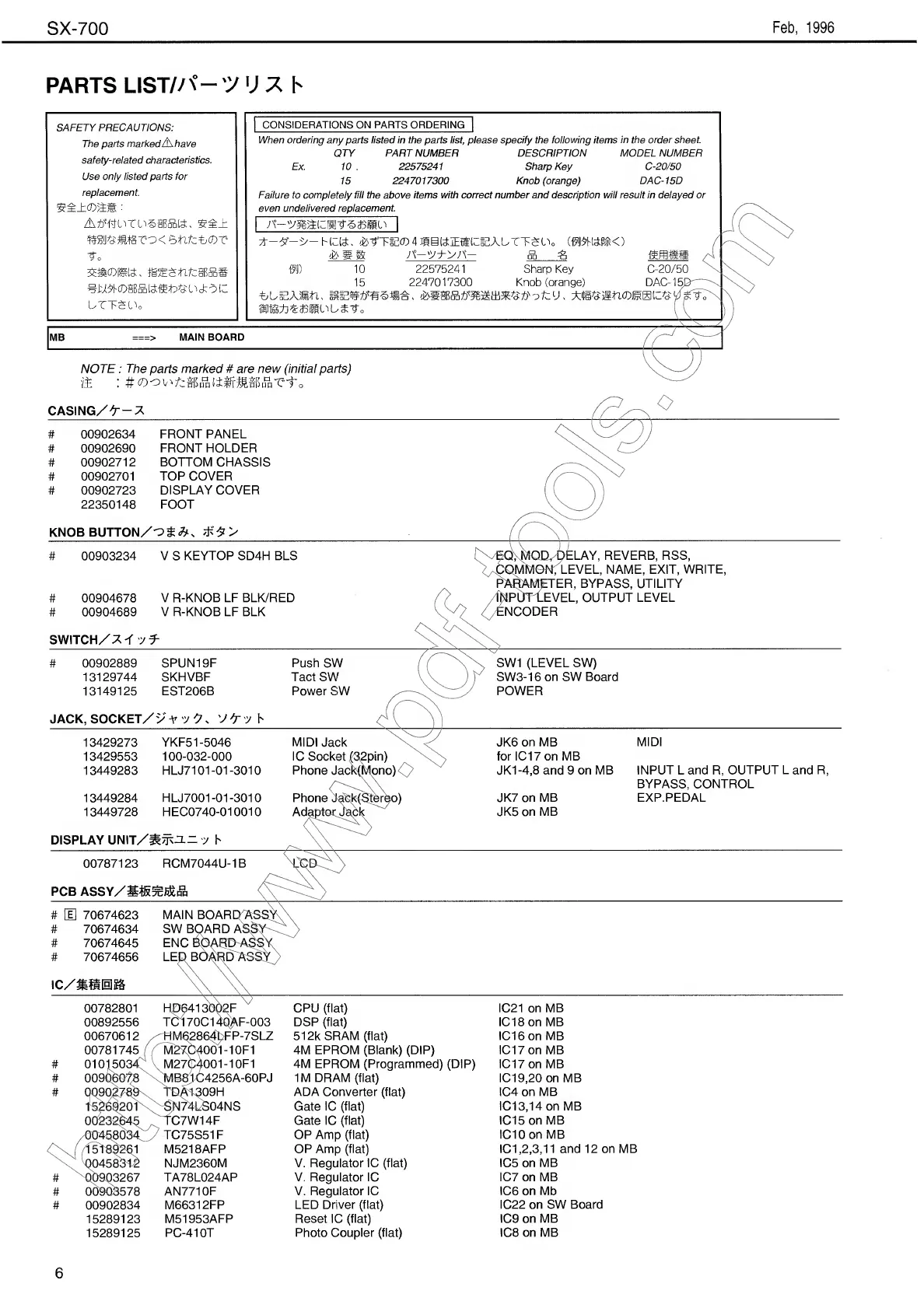

Boss SX-700 - Page 5

SX-700
Feb, 1996
PARTS LIST/7'1 — "J 'J Zb
SAFETY PRECAUTIONS:
The parts marked t\have
safety-related characteristics.
Use only listed parts for
replacement.
Atfttl'iTUSSBffite.
^Srci«^TO< 6 ntchCDT'
to
© □ Boo&BI t>& L'i <k t IZ
UTTSHo
CONSIDERATIONS ON PARTS ORDERING
When ordering any parts listed in the parts list, please specify the following items in the order sheet.
QTY PART NUMBER DESCRIPTION MODEL NUMBER
Ex. 10 . 22575241
Sharp Key
C-20/50
15 2247017300 Knob (orange)
DAC-15D
Failure to completely fill the above items with correct number and description will result in delayed or
even undelivered replacement.
A-'v^aiziiTrsAiii'i
iWTSBCD 4 SgttiEffilZEAUTTSl'i* (Gtff-ttBSK)
n-v±>n- a £
f£FS«
W) 10
15
tCIgAdYu
22575241 Sharp Key C-20/50
2247017300 Knob (orange) DAC-15J
: ■ . .. — V X. A
MB
MAIN BOARD
/_y __
_ f A
NOTE: The parts marked # are new (initial parts)
ti : # ^OVAc^ppiiffS^pnAAo
CASING//-*
00902634
00902690
00902712
00902701
00902723
22350148
FRONT PANEL
FRONT HOLDER
BOTTOM CHASSIS
TOP COVER
DISPLAY COVER
FOOT
KNOB BUTTON/OS/'*>
# 00903234 V S KEYTOP SD4H BLS
00904678
00904689
V R-KNOB LF BLK/RED
V R-KNOB LF BLK
SWITCH/74'/f
C>fQYMOD, DELAY, REVERB, RSS,
COMMON) LEVEL, NAME, EXIT, WRITE,
Parameter, bypass, utility
/j^PUTlEVEL, OUTPUT LEVEL
/'ENCODER
# 00902889 SPUN19F Push SW
13129744 SKHVBF Tact SW
13149125 EST206B Power SW
JACK, SOCKET/ V -Y "J 0 s V / y F
SW1 (LEVEL SW)
SW3-16 on SW Board
POWER
13429273 YKF51-5046
MIDI Jack JK6 on MB
MIDI
13429553 100-032-000 1C Socket (32pin)
for IC17 on MB
13449283 HLJ7101-01-3010
Phone Jack(Mono) O
/"0\\
JKI-4,8 and 9 on MB INPUT L and R, OUTPUT L and R,
BYPASS, CONTROL
13449284 HLJ7001 -01 -3010 Phone Jack(Stereo)
JK7 on MB EXP.PEDAL
13449728 HEC0740-010010
Adaptor Jack
JK5 on MB
DISPLAY UNIT/i
ItrTL “ "j b
00787123
RCM7044U-1B ""LCD
PCB ASSY/Sffi5c/£ n a n
# E
70674623
MAIN BOARD ASSY
# 70674634
SW BOARD ASSY
#
70674645
ENC BOARD ASSY
#
70674656
LED BO^Ftl/ASS/)
ic/i
mmm
\\ Y\
00782801
HD6413002F CPU (flat) IC21 on MB
00892556 TC170C140AF-003 DSP (flat) IC18 on MB
00670612
HM62864L.FP-7SLZ 512k SRAM (flat)
IC16 on MB
00781745 ( M27C4001-10F1 4M EPROM (Blank) (DIP) IC17 on MB
#
01015034
M27C4001-10F1 4M EPROM (Programmed) (DIP) IC17 on MB
#
00906078 X
\MBm C4256A-60PJ
1M DRAM (flat)
IC19.20 on MB
# 00902789 TDA1309H
ADA Converter (flat) IC4 on MB
1526920K.
GN74LS04NS Gate 1C (flat)
IC13,14 on MB
00232^45
TC7W14F
Gate 1C (flat)
IC15 on MB
00458034,
/ TC75S51F OP Amp (flat)
IC10 on MB
45189261
M5218AFP OP Amp (flat)
IC1,2,3,11 and 12 on MB
00458312
NJM2360M V. Regulator 1C (flat)
IC5 on MB
# N 00903267
TA78L024AP
V. Regulator 1C IC7 on MB
# 00903578
AN7710F V. Regulator 1C IC6 on Mb
# 00902834
M66312FP LED Driver (flat)
IC22 on SW Board
15289123
M51953AFP Reset 1C (flat)
IC9 on MB
15289125
PC-410T Photo Coupler (flat)
IC8 on MB
