Chapter 4 • Electrical
R
325 Conquest
NOTICE
Even if the all switches are set to OFF. Certain
features still draw power from the batteries.
For example the Bilge pumps, NAUTIC-ON, and
remote battery switching.
This vessel uses remote battery switches (RBS),
one for each engine and one for house power.
These switches are used to control delivery of DC
power from the batteries. These battery switches
are advanced electric relay switches located on the
forward bulkhead in the aft bilge area (see Figure
4.2.1). If the optional gyroscopic stabilizer is installed,
there will be another RBS switch accessible under the
prep station (Figure 4.3.1).
Each battery rocker switch on the DC distribution
panel (see Figure 4.5.1) is wired to the its associated
remote battery switch. When the engines are shut
down or not providing a charge, the boats systems
draw power from the house batteries. This allows

the engine’s batteries.
Stop engine(s) before moving battery switch(es)
to o position.
!
CAUTION
Remote Battery Switches (RBS)




























2323634
Gyroscopic Stabilizer Battery Location Label (option)
Battery Trays

1
HOUSE BATTERY #1
HOUSE BATTERY #2
PORT ENGINE BATTERY
STARBOARD ENGINE BATTERY
GENERATOR
2
3
4
5
5
FWD
1 2 3 4 5 6
BOW THRUSTER BATTERY SWITCH
HOUSE REMOTE BATTERY SWITCH
PORT ENGINE AUTO CHARGING RELAY
PORT ENGINE REMOTE BATTERY SWITCH
STBD ENGINE AUTO CHARGING RELAY
STBD ENGINE REMOTE BATTERY SWITCH
1
2
3
4
5
6

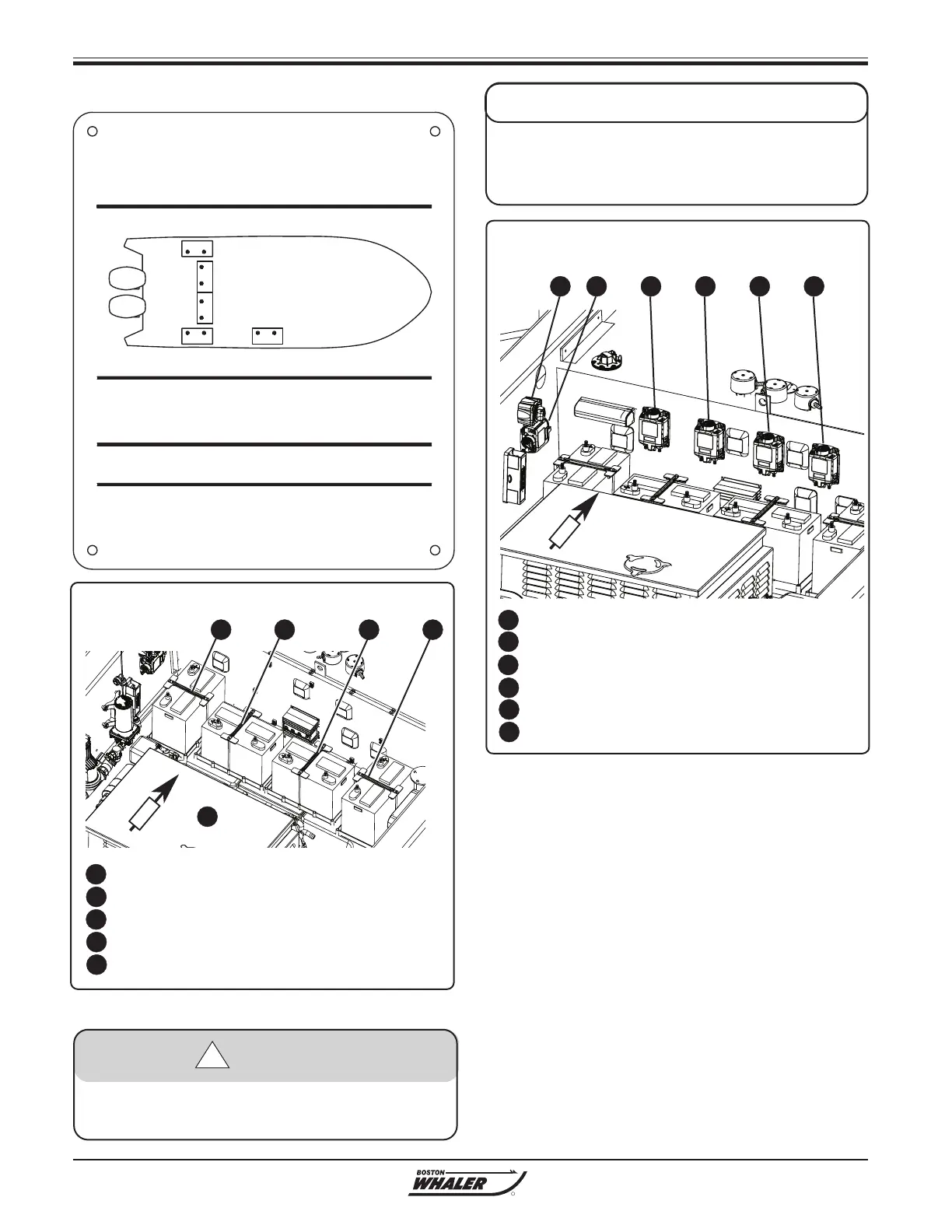

Remote Battery Switch Locations

FWD
31 2
4
