OPERATION

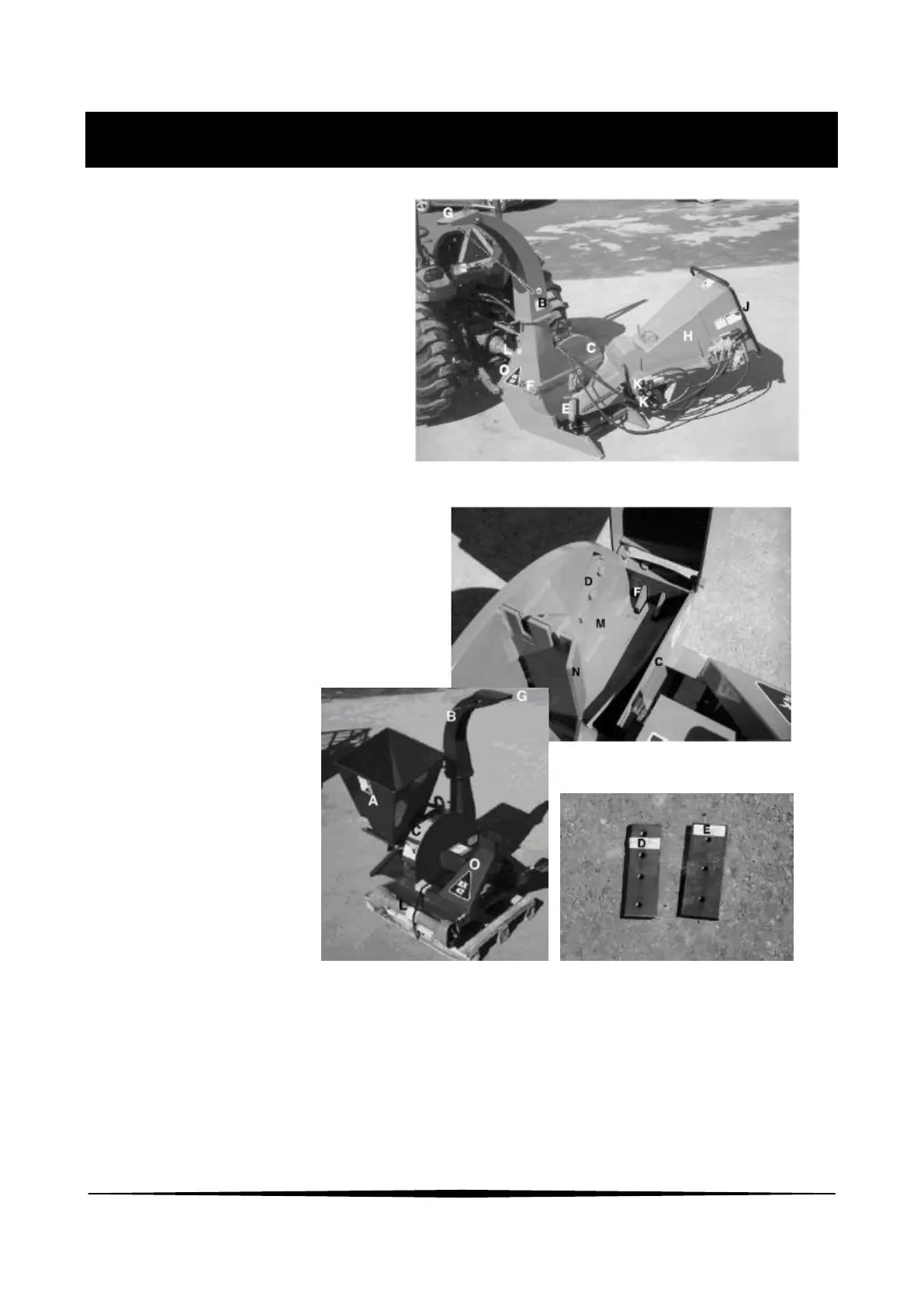

MACHINE COMPONENTS
The Victory 3 Point Hitch Wood Chipper
is a rotor with blades for chip- ping wood.
A hinged feed hopper moves the wood
material into the rotor.
Each rotor is designed with
4 blades and a twin-breaker to generate
the small pieces of wood. A stationary
knife at the rear of the rotor housing is
placed by the moving knives to shear,
chip or chop the material.
The tractor provides rotational power
through a PTO shaft on the front
of the frame and hydraulic power for the
hydraulic feed hopper.
A Manual Feed Hopper
B Discharge Hood
C Rotor Housing
D Rotor Blade
E Stationary Blade
F Twig Breaker
G Hood Deflector
H Hydraulic Feed Hopper
J Hydraulic Feed Control
K Hydraulic Motor
L PTO Driveline
M Rotor
N Paddle
O 3 Point Hitch
To Next Page
