OPERATION

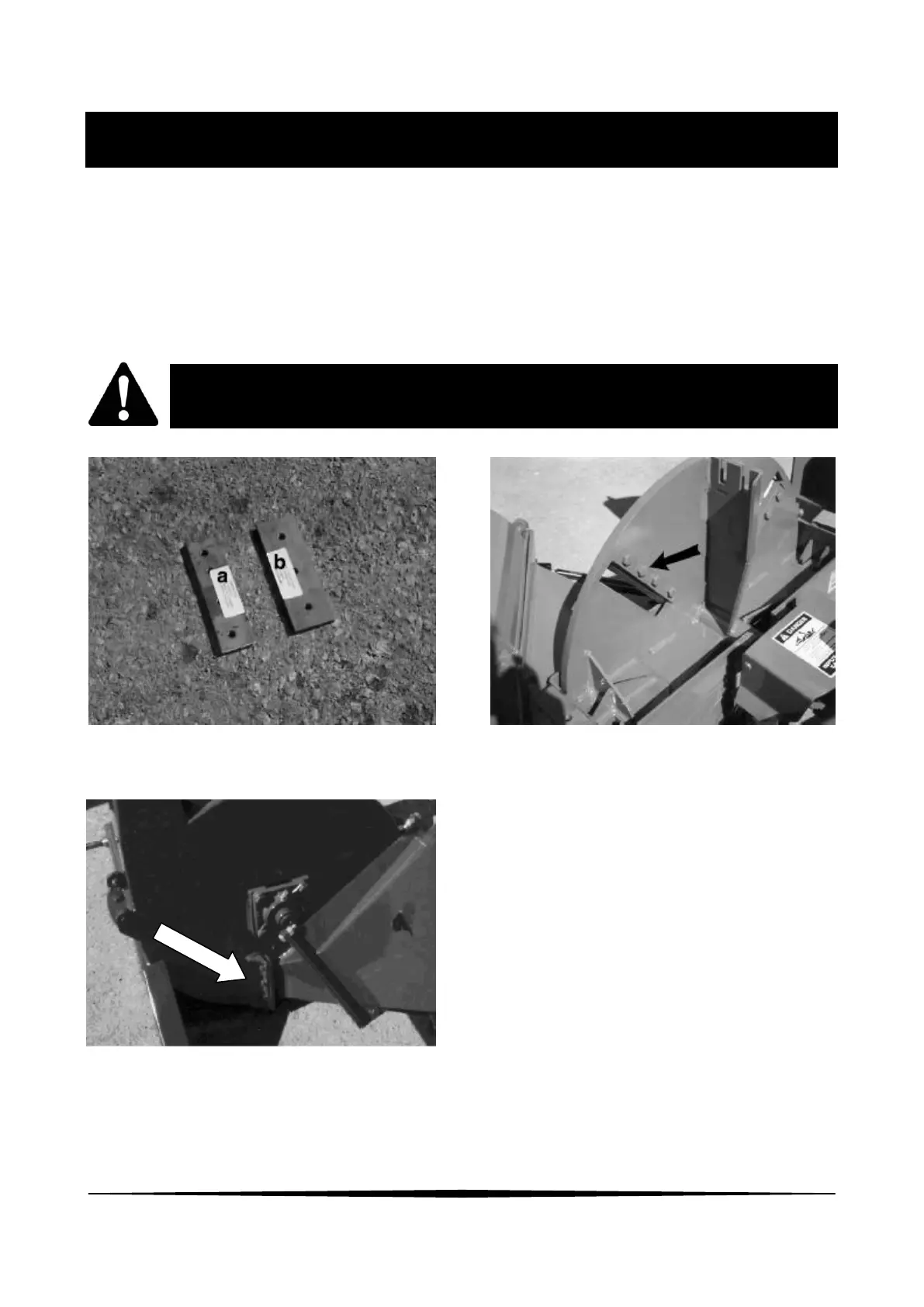

16. Blades:
There are 2 types of blades used on the Wood Chipper. They work together to cut, shear and
shred the wood as it moves through the machine.
a. Rotor blades:
The rotor is equipped with 4 blades placed at 90° to each other to keep the rotor in balance.
If one needs to be changed, the one opposite should be changed.
b. Stationary blade:
Each machine is equipped with a stationary blade that acts as a stop for the moving rotor
blades.
WARING
Machine is shown with guard opened or rotor cover opened for illustrative
purposes only. Do not operate machine with guard opened or cover opened.
a. Rotor b. Stationary Rotor
Stationary
