QUICK SET UP FOR STANDARD OPERATION

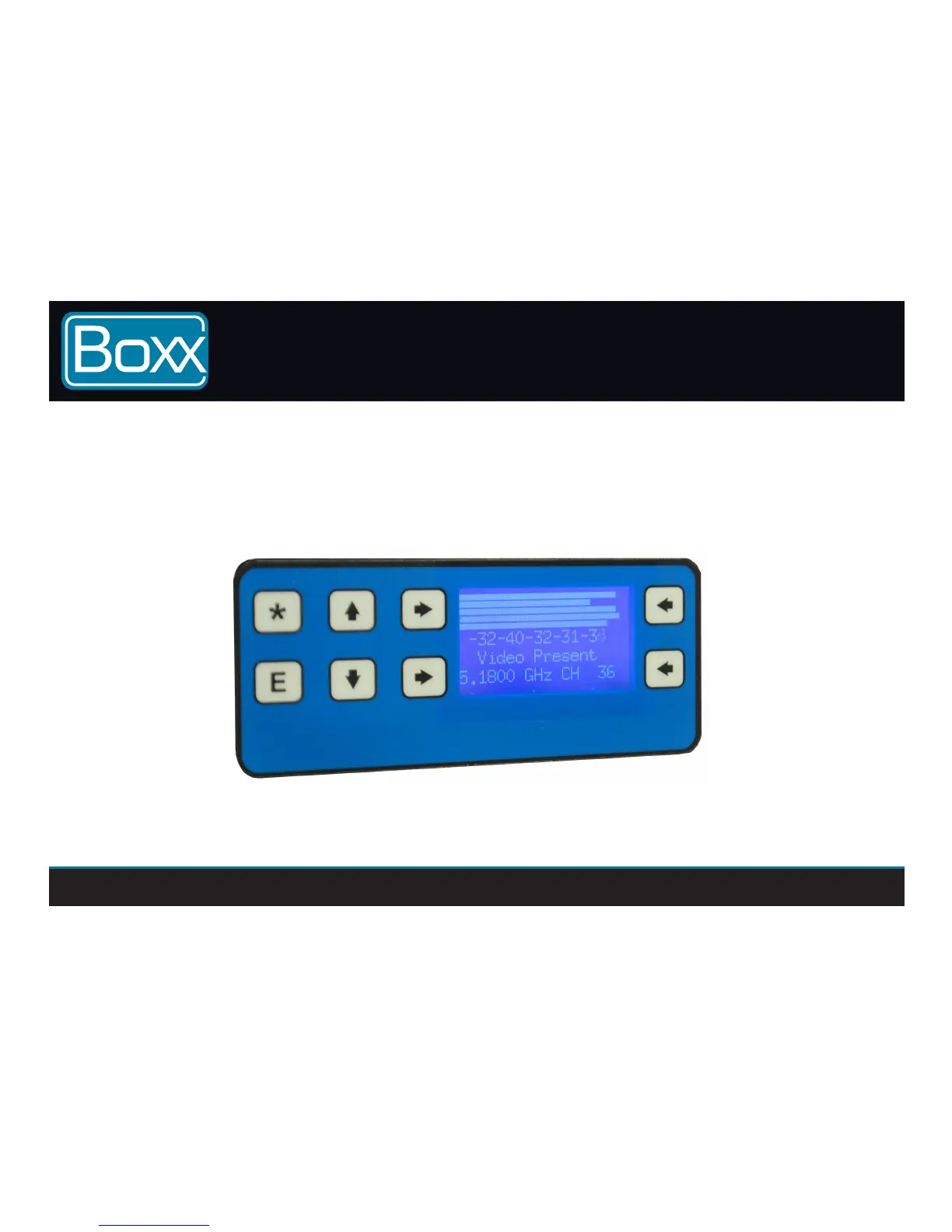

5. Signal Strenght Meters
Oncethetransmitteristurnedon,andscreenisshowing“VideoPresent”,5barswillshowyouthesignalstrenghtofeachan-
tenna,thismethodcanbeusedtoindicateifoneoftheantennasisbrokenornotperformingaswellasitshould,youwillseethat
oneofthebarsisdramaticallylowerthentherest.Generallytheyshouldbenomorethan10dBfromeachother.Ifyoususpect
afaultyantennatryplacingtheReceivernexttotheTransmittertoseeifsignalbarsincreasing,
